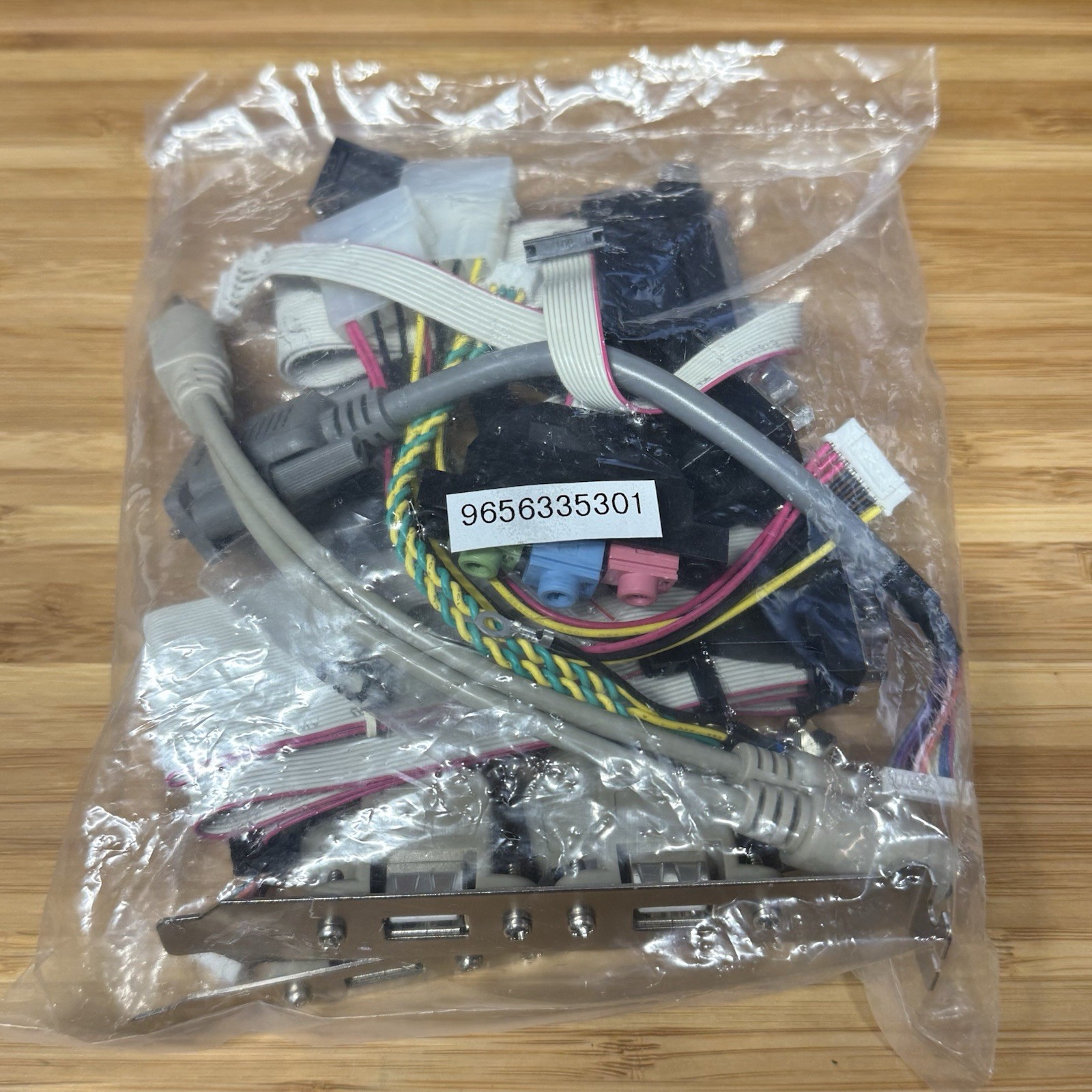

Advantech PCM-3353 Complete OEM Cable Set (Includes Power Cable)
This listing is for a complete, original Advantech cable set for thePCM-3353 series PC/104+ single-board computers. All cables are OEM, new old stock (NOS). This set includes all essential breakouts: power, USB, VGA, IDE, audio, LAN,serial COM ports, PS/2 keyboard/mouse, and parallel port.
✔ Included Cables & Technical Specifications
- Power Cable – 1×8 JST (2.0mm) to two 4-pin Molex male connectors
Provides +5V/+12V to SBC and peripherals. - Audio Cable – P/N 1700000918
1×5 JST (~2.0mm) to three 3.5mm jacks (Line-Out, Line-In, Mic-In) - COM1 Cable – P/N 1703040157
1×4 JST (~2.0mm) 4-wire TTL UART (TX/RX/GND/VCC) - Four-Port COM Cable – P/N 1701400181
2×20 IDC (2.0mm) to four DB9 male connectors Supports COM3–COM6 (RS-232/422/485 depending on board configuration) - Keyboard/Mouse Cable – P/N 1703060053
1×6 JST (~2.0mm) to two Mini-DIN 6 (PS/2 keyboard + mouse) - Y-Cable – P/N 1700060202
Mini-DIN 6 → dual Mini-DIN 6 - Ethernet Conversion Cable – P/N 1701100202
2×5 IDC (2.0mm) to standard RJ-45 Ethernet jack - LPT / Parallel Cable – P/N 1700260250
2×13 IDC (2.0mm) to DB25 female - IDE Cable – P/N 1701440350
2×22 IDC (2.0mm, 44-pin) to 44-pin female laptop IDE connector - VGA Cable – P/N 1700000898
1×12 micro-pitch (~1.25mm) to DB15 female VGA port - USB Bracket Cables (Qty 2) – P/N 1703100121
2×5 IDC (2.0mm) to metal bracket with dual USB Type-A ports (Total: 4 USB ports included)
✔ Compatible Boards
- PCM-3353F-L0A2E – AMD LX800 version
- PCM-3353F-J0A2E – AMD LX600 version
- PCM-3353Z-512A2E – Phoenix Gold Package
- PCM-3353Z2-512A2E – Phoenix Platinum Package
Condition
- New Old Stock (NOS)
- Never used, no corrosion, stored properly
- All cables verified and complete
Notes
- This listing is for the cable set only. No SBC board included.
- All connector pitches and pinouts listed for engineering compatibility.
- Includes the correct 1×8 power cable with dual Molex outputs.
Ships quickly and packaged with care.
