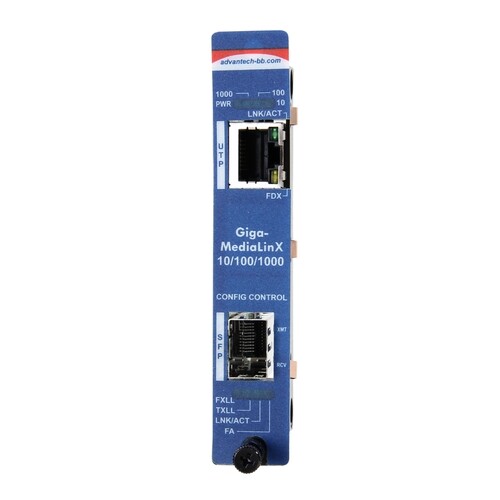

IMC-770-SFP

Managed Modular Media Converter, 1000Mbps, SFP (also known as iMcV 856-15410) Variety of choices: multi-mode, single-mode or single-strand including SFP form factor

• The
• modular, hot-swappable architecture reduces operational costs
• associated with product installation, upgrades, and maintenance
• SNMP manageable
• Supports configuration control
• Supports Link Fault Pass Through (LFPT)

The IMC-771/771 series are slide-in module Ethernet-to-fiber media

converter for IMC-7xx chassis, which supports hot-swappable and easy

installation, It allows network operators to incorporate multiple fiber

types and wavelengths within a network. The IMC-770/771 can be monitored

and controlled via central site with IMC-710 SNMP management module by

iView2, Telnet or CLI while installed in IMC-71x series chassis.

Offering a range of speed up to Gigabit Ethernet and available with SFP

or build-in fiber connector: multi-mode, single-mode fiber or double

fiber capacity with single-strand which supports the transmission

distance from 550m to 70km.               The IMC-770/771 series feature in the Link

Fault Pass Through (LFPT) functionality, a diagnostic feature that can

enable or disable links to assist the end user in troubleshooting a

failed segment and configuration control to retain the latest

configuration regardless of how the initial configuration was setup.

The IMC-770I-2SFP converter is protocol-independent with dial SFP ports

which can provide a single conversion between different wavelengths or

single-mode and multi-mode fiber, single-mode to single-mode fiber or

multi-mode to single-strand fiber. Its SFP port must use an SFP of the

same speed while allowing different fiber types. Additionally, the

IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The

unit operates in environments that demand extended operating

temperatures.
