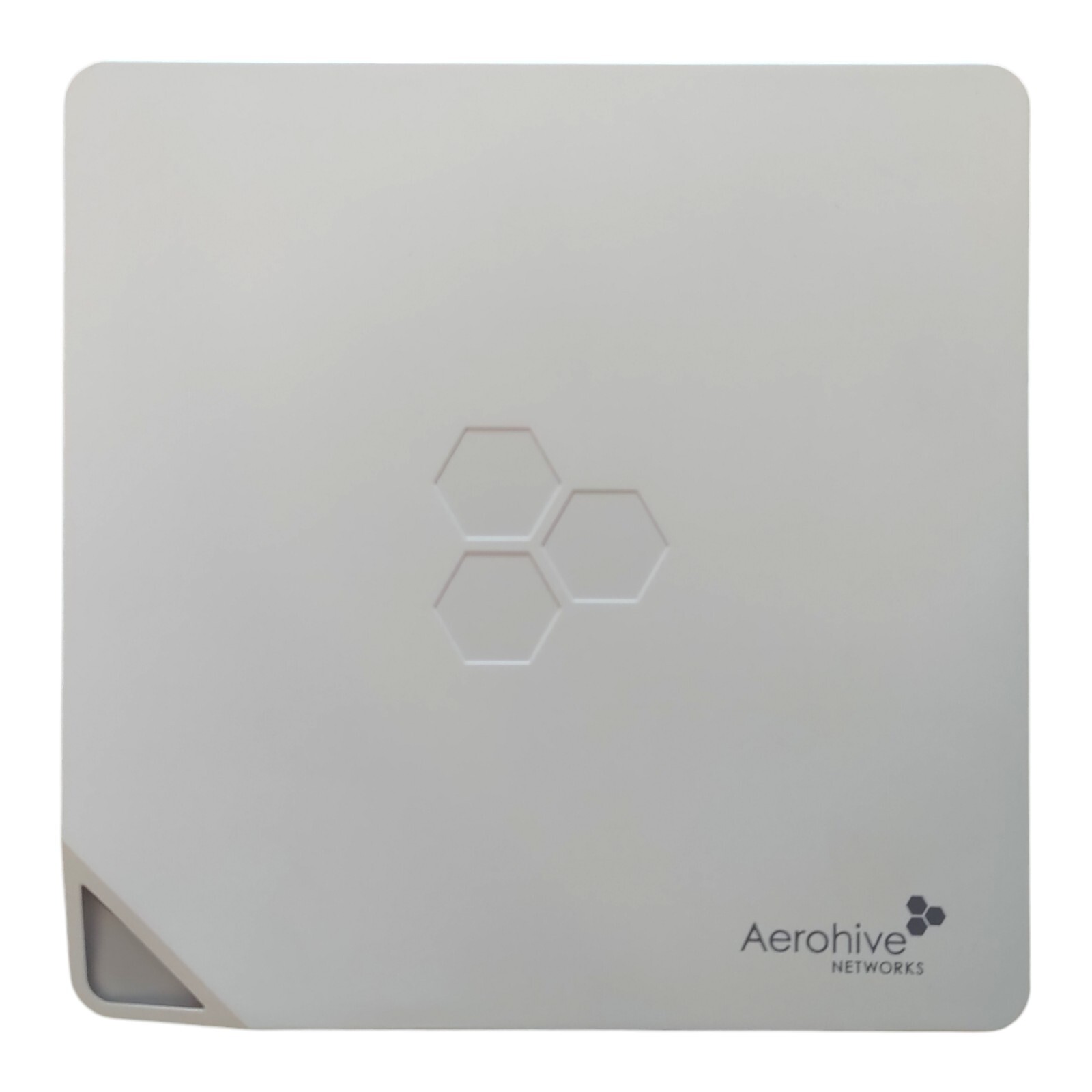

No AC Adapter includedAerohive Networks AP121 access points provide 2x2:2 802.11n as well as optimized RF performance and enhanced receive sensitivity to provide a ground-breaking user experience for networks supporting multiple types of clients, including consumer-grade and bring your-own devices (BYOD).
The Aerohive AP121 is a cost-effective, enterprise-grade 2x2 MIMO solution, which is ideal for education, healthcare, and distributed enterprise environments. With two radios, concurrent 2.4Ghz and 5Ghz access, and security scanning across both bands, the AP121 provides top performance and security at an entry-level price point.
The AP121 also provides both automatic mesh redundancy and support for 802.11a, b, g and n clients, through Aerohive’s industry unique and resilient Cooperative Control Architecture.
Dual Concurrent Radios (b/g/n + a/n)
• 802.11a: 1,2,5.5 and 11Mbps
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• 24 dBm Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
• 802.11b: 1,2,5.5 and 11Mbps
• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• 20 dBm Transmit Power
• Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
• 802.11g: 6,9,12,18,24,36,48, and 54 Mbps
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• 22 dBm (100 mW) Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
• 802.11n (HT20/HT40): MCS0 -MCS7
• 2.4–2.5 GHz & 5.150–5.950 GHz Operating Frequency
• 802.11n Modulation
• 24 dBm Transmit Power
• Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps)
• 2x2 Multiple-In, Multiple-Out (MIMO) Radio
• HT40 High-Throughput (HT) Support
Antennas
• 2x Integrated single band, 2.4-2.5 GHz Omni-directional, 4.0 dBi gain
• 2x Integrated single band, 5.1-5.8 GHz Omni-directional, 4.0 dBi gain
Interfaces
• Autosensing 10/100/1000 Base-T Ethernet Port
• Power over Ethernet (PoE) capable (802.3af) Ethernet Port (Eth0)
• 1x Reset Pinhole
• USB 2.0 port reserved for future use
• RJ-45 console port
Physical
• 6.69” W x 1.63” H x 6.69” D (170 mm W x 41 mm H x 170 mm D)
• 11.6 oz (0.36 kg),
Environmental
• Operating: 0 to +40°C, Storage: -40 to +85°C
• Humidity: 95% RH (non-condensing)
Power Options
• 802.3af Power over Ethernet (PoE) port
• 12V, 2A DC external power adapter (sold separately)
Power Specifications
• AC/DC power adapter: –Input: 100–240 VAC –Output: 12V/2A
• PoE nominal input voltages: 48V, 0.35A (802.3af)
• Typical power consumption: 8w
• RJ-45powerinputpins:Wires 4,5,7,8or1,2,3,6
