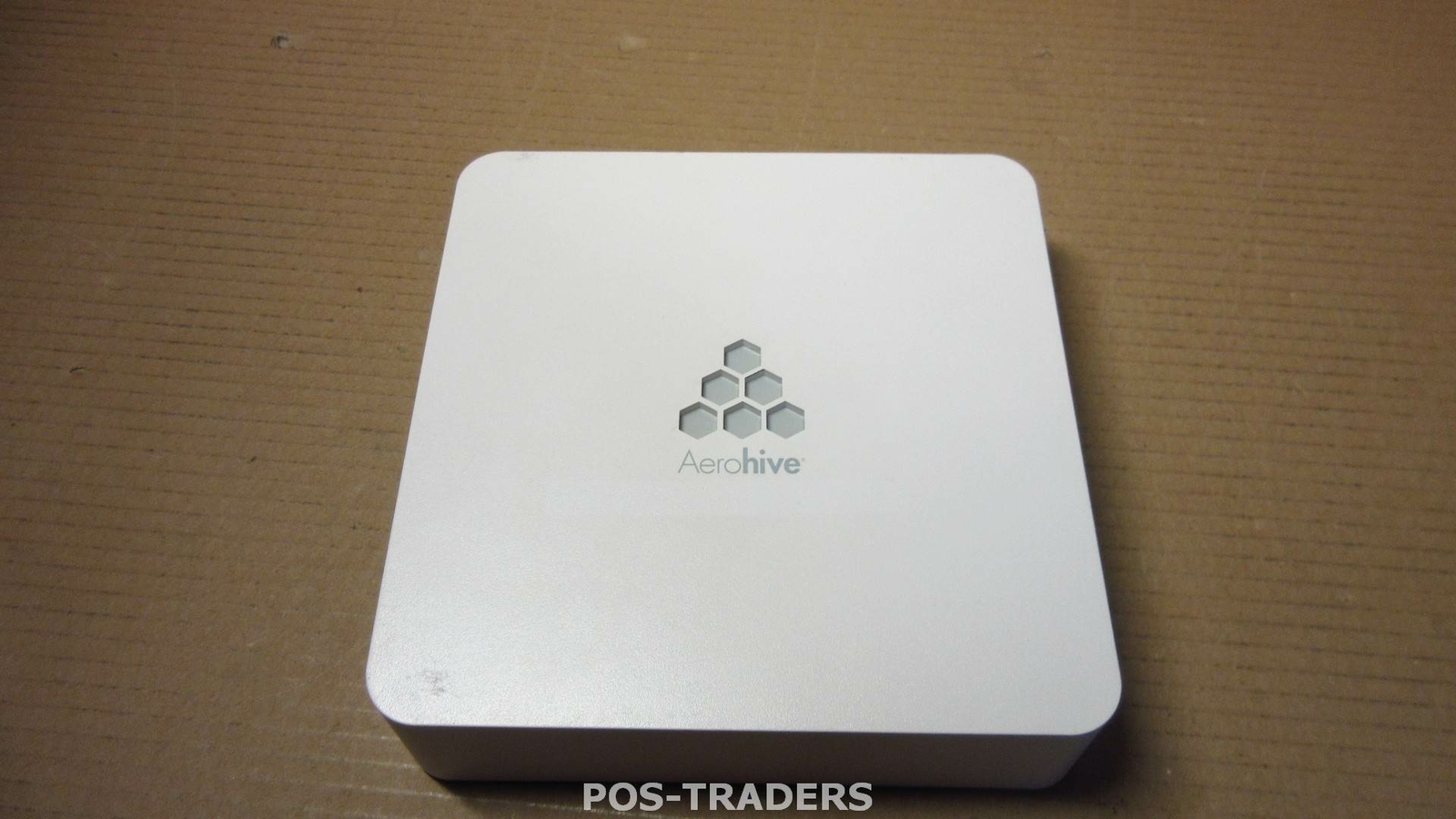

Aerohive AP120 600Mbps 802.11n POE Wireless Access Point MIMO Dual Radios + PSU
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
P/N: AH-AP120-N-W
INCLUDING POWER SUPPLY
EXCLUDING CABLES / MANUALS
See photos for actual item!
Price is for 1 item.
Radios Dual Concurrent Radios (b/g/n + a/n)
802.11a Radio Specifications
• 5.150– 5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM)
Modulation
• 24 dBm Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback
802.11b Radio Specifications
• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• 20 dBm Transmit Power
• Rates (Mbps): 11, 5.5, 2, 1 with automatic fallback
802.11g Radio Specifications
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM)
Modulation
• 22 dBm Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback
802.11n Radio Specifications
• 2.4–2.5 GHz and 5.150 GHz – 5.950 GHz Operating
Frequency
• 802.11n Modulation
• 24 dBm Transmit Power
• Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps)
• 2x2 Multiple-In, Multiple-Out (MIMO) Radio
• HT20 and HT40 High-Throughput (HT) Support
• A-MPDU and A-MSDU Frame Aggregation Antennas • 2x Integrated single band, 2.4-2.5 GHz Omnidirectional antennas, 4.0 dBi gain
• 2x Integrated single band, 5.1-5.8 GHz Omnidirectional antennas, 2.0 dBi gain Interfaces • Autosensing 10/100/1000 Base-T Ethernet Port
• Power over Ethernet (PoE) capable (802.3af) Ethernet Port
• 1x Reset Pinhole Dimensions
(WxHxD) • 6.5 in. W x 6.5 in H x 2 in D
(16.51 cm W x 16.51 cm H x 5.08 cm D) Weight • 1.75 lbs (0.8 kg) Power Options • 802.3af Power over Ethernet (PoE) port
• 48v DC external power adapter Power Specifications • AC/DC power adapter:
– Input:100 – 240 VAC
– Output: 48V/0.3A
• PoE nominal input voltages: 48 V, 0.35A (802.3af)
• Typical power consumption: 8W
• RJ-45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, 6
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
