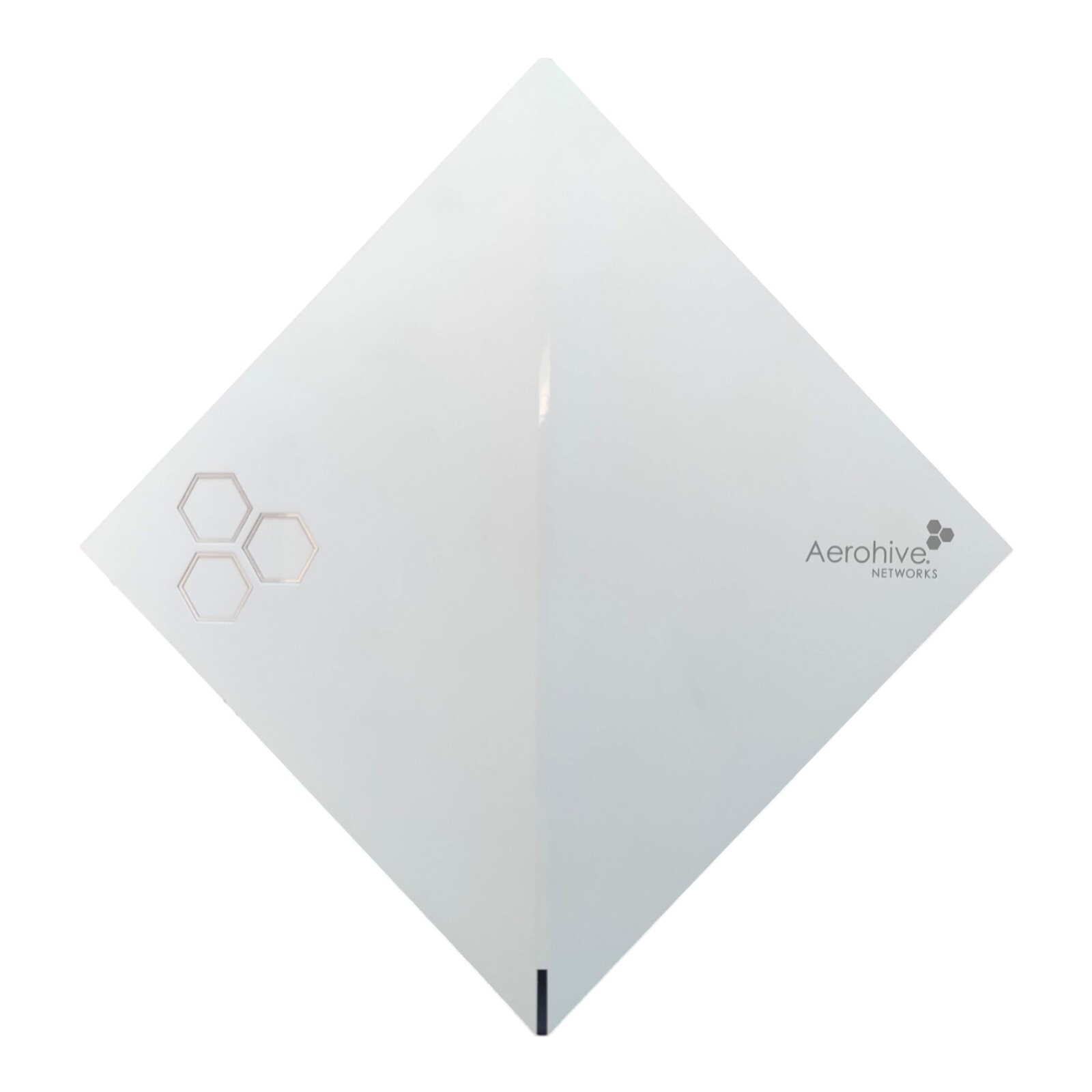

AP only - no mounting hardware includedThe Aerohive AP250 features two Wi-Fi radios; a fixed 5 GHz 802.11ac Wave 2 radio and asoftware-selectable 802.11n 2.4 GHz/ 802.11ac 5 GHz radio. Software-selectable radio allows ITmanagers to enable 802.11ac performance on both radios for the best coverage and capacity,up to 2.6 Gbps. Built-in BLE provides proximity, indoor location tracking, and other location-basedmobile engagement services. The AP250 has the power to support enterprise-grade features,including built-in application visibility and control, RADIUS authentication, DHCP, captive webportals, location services and spectrum analysis.
The AP250 has two RJ45 10/100/1000Base-T/TX Ethernet ports (ETH0 and ETH1) thatautomatically negotiate half- and full-duplex connections with the connecting device. Theports are autosensing and adjust to straight-through and crossover standard Cat3, Cat5,Cat5e, or Cato Ethernet cables automatically. The APs receive power through an Ethernetconnection to the ETH0 port from PSE that is compatible with the 802.3at and 802.3afstandards.Power sourcing equipment can be embedded in a switch or router, or it can come frompurpose-built devices that inject power into the Ethernet line en route to the AP. Becausethe PoE ports have autosensing capabilities, the wiring termination in the Ethernet cablecan be either straight-through or crossover.
The USB modem port (backward compatible with USB1.1) allows you to connect a wireless3G/4G USB modem to serve as a backup WAN connection.
The AP250 has nine internal antennas: • Five single-band 5 Ghz antennas • Three dual-band 2.4 GHz/5 GHz antennas • One BLE antenna.
Device Specifications • Chassis dimensions: 7.25" W x 2.12" H x 7.25" D (184 mm W x 54 mm H x 184 mm D) • Weight: 1.6 lb (0.73 kg) • Three internal omnidirectional 802.11b/g/n 2.4 GHz antennas, and three internalomnidirectional 802.11a/b/g/n/ac 5 GHz antennas • One RJ45 (9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control) • Eth0 Ethernet port: autosensing 10/100/1000Base-T/TX Mbps, with lEEE 802.3af- or802.3at-compliant PoE • Eth1 Ethernet Port: autosensing 10/100/1000Base-T/TX Mbps
Power Specifications • IEEE 802.3af PoE Power: Full 3x3:3 802.11 ac MU-MIMO performance, BLE and Dual 5GHz. No USB port, no 2nd Ethernet port. • IEEE 802.3at PoE Power: all of the above plus USB port and 2nd Ethernet port. • 802.3af PoE-capable Gigabit Ethernet port • PoE nominal input voltages: 48 V • RJ45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, and 6
Environmental Specifications • Operating temperature: 32 to 104° F (0 to 40° C) • Storage temperature: -40 to 185° F (-40 to 85° C) • Relative Humidity: 5 to 95% RH (noncondensing)
