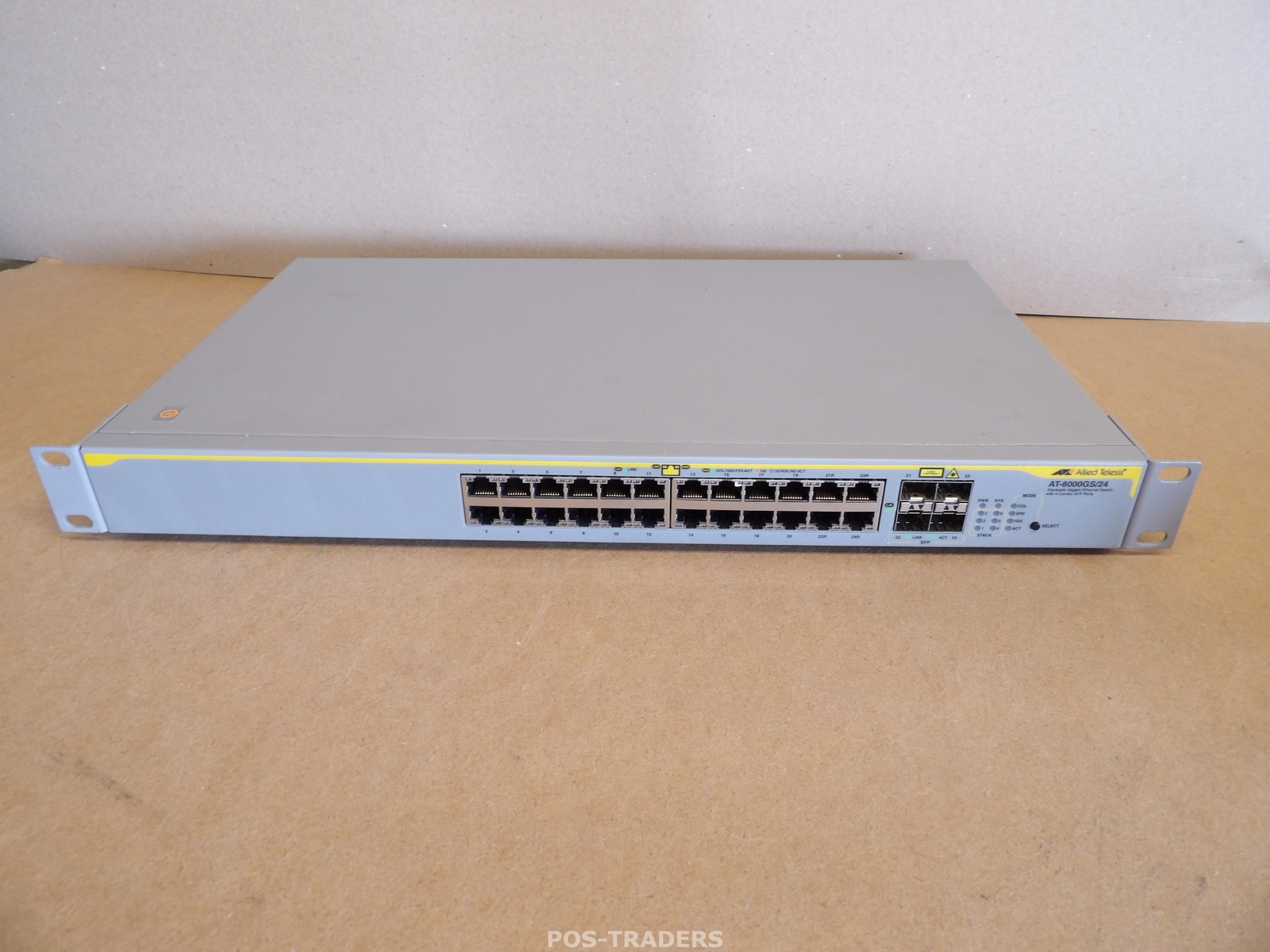

INCLUDING RACK EARS EXCLUDING NETWORK CABLES INCLUDING POWER CABLE See photos for actual item! Price is for 1 item. Description:One of a series of high performance Gigabit Ethernet stackable switches from Allied Telesis, the AT-8000GS/24 provides high performance Layer 2 switching in an affordable fixed configuration platform.This switch offers 24 x 10/100/1000 ports, with four combo 1Gbps SFP slots. Two integrated stacking connectors deliver a total of 20Gbps stacking bandwidth. The stacking capability integrated into this platform is configured as a resilient ring topology designed to provide high reliability and simplified management for higher port density applications. Support for jumbo Ethernet frames enables higher throughput of time sensitive data.General - Device Type: Switch - 24 ports - Managed - stackable
- Enclosure Type: Desktop 1U
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/100/1000 + 4 x shared SFP
- MAC Address Table Size: 8K entries
- Max Units In A Stack: 6
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
- Encryption Algorithm: SSL 3.0
- Features: Flow control, Layer 2 switching, auto-negotiation, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
- RAM: 128 MB
- Flash Memory: 16 MB Flash
Expansion / Connectivity - Interfaces: 24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 4 x SFP (mini-GBIC)
Power - Power Device: Internal power supply
- Voltage Required: AC 120/230 V (50/60 Hz)
- Power Consumption Operational: 54 Watt
Miscellaneous - Rack Mounting Kit: Included
- MTBF: 100,000 hours
- Compliant Standards: FCC Class A certified, TUV, C-Tick, EN 60950, UL 1950, VCCI Class A ITE, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, RoHS
Dimensions & Weight - Width: 44 cm
- Depth: 25.8 cm
- Height: 4.3 cm
- Weight: 3.2 kg
Environmental Parameters - Min Operating Temperature: 0 °C
- Max Operating Temperature: 40 °C
- Humidity Range Operating: 5 - 80%
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise dewabit  |
|
