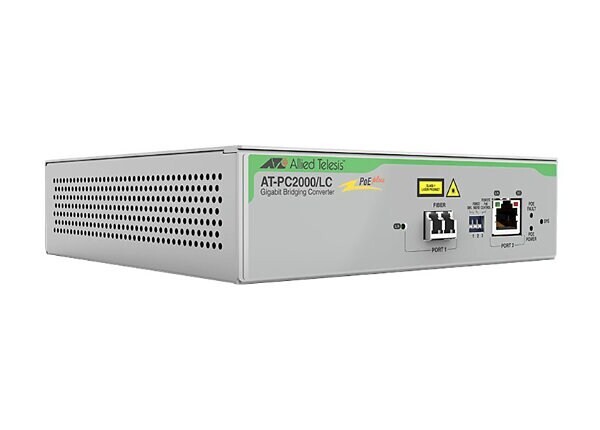

Allied Telesis Fiber Media Converter AT-PC2000/LC-960
Product Description
The Allied Telesis AT-PC2000/LC-960 is a high-performance fiber media converter designed to extend the distance of your Ethernet network using fiber connectivity. It supports a variety of standards including 10Base-T, 100Base-TX, 1000Base-T, and 1000Base-LX/SX, ensuring versatile compatibility. Equipped with both LC and RJ-45 ports, it enables seamless communication between copper and fiber optic cables. This TAA-compliant device also supports PoE+, VLAN tagging, jumbo frames, and features Smart Missing Link (SML) for enhanced network diagnostics.
Key Features

• Media converter supporting 10/100/1000Base-T and 1000Base-LX/SX
• 850 nm optical wavelength with LC connectors
• Auto MDI/MDI-X, VLAN support, and Smart Missing Link (SML)
• Store and forward switching architecture
• PoE+ enabled with up to 35W operational x LC female (1000Base-LX/1000Base-SX)
• 1 x RJ-45 female (10/100/1000Base-T)
• Supports wired Ethernet, Fast Ethernet, and Gigabit Address Table Size: 4K entries
• Optical Wave Length: 850 nm
• Compliant Standards: IEEE 802.1Q, IEEE 802.3at
• Status Indicators: Active, Fault, Power
• Form Factor: Wall mountable

Power Details

• Power Consumption: 35W (operational)
• Power Supply: Internal (1 installed, 1 supported)
• Frequency: 50/60 Temperature: 32°F to 122°F
• Operating Humidity: 5% - 95% (non-condensing)

Physical Characteristics

• Dimensions (WxDxH): 6.1 x 5.9 x 1.6 inches
• Weight: 26.38 ounces (0.75 kg)
• Color: Gray

Certifications & Compliance

• TAA Compliant
• FCC Class B, EN 55022 Class A, C-Tick
