Alpha Technologies XM Series 2 / XM2 Inverter Module
Identification / Part Numbers:
- Alpha XM Series PCB marking: 704-617-45-004
- Additional board marking: 704-583-70-003
- Chassis marking: 602-125-20-002 Rev B
Original Alpha Technologies XM Series 2 inverter module removed from an XM2-922 CableUPS power supply.

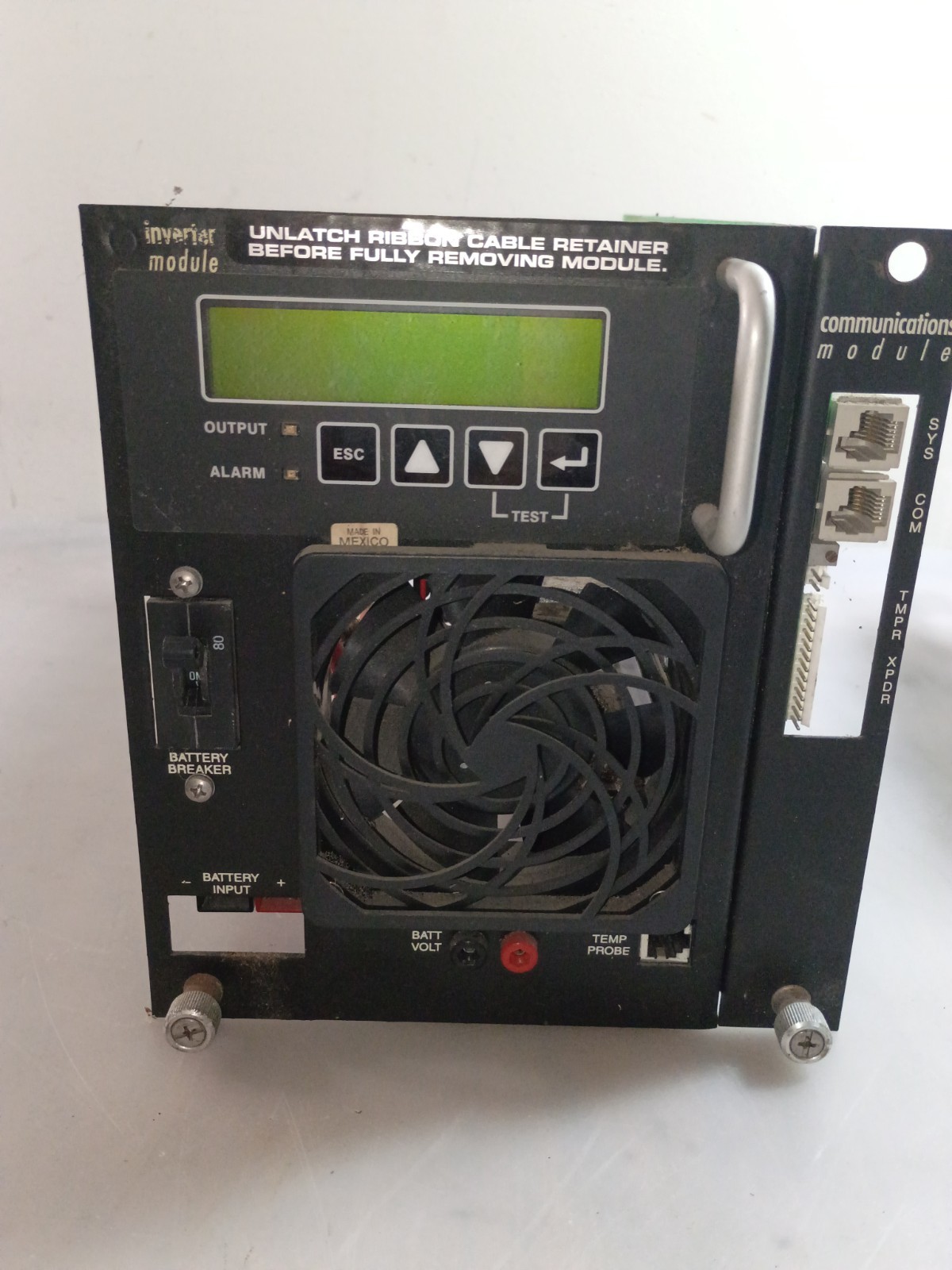

This is the complete removable inverter/control module shown in the photos. Assembly includes the Smart Display/control panel, 80A battery breaker, large power electronics board, heat sinks, capacitors, cooling fan, control electronics, heavy battery wiring/connectors and other attached components shown.
This is the 48V / 2000VA version, identified by Alpha rating label 953-527-12-001.
Condition
Used – Untested
Removed intact from the original Alpha XM2-922 power supply. The module has not been independently bench tested after removal, so operational condition is unknown.
No attempt has been made to repair or modify the electronics.
Please carefully compare all part numbers, connectors and photos with your existing equipment to verify compatibility.
Included: Inverter module assembly and attached components/wiring shown in photos only.
