Details
The Eisbecher Series consist of 20 different reservoirs that differ between usage, measurement and appearance. There are ten reservoirs within this series that consist of 99% plexi - totally unique! But the main difference between these reservoirs is within the functionality of the different sockets.
Specifications
Each version in detail
The Eisbecher
There are two additional versions for everyone that would rather operate the pump seperately. The Bubble Down and depending on the size one or two standpipes that fascilitate the Lighttower effect and two lighting modules one from the top and the other one from the bottom are being used here. And there are additional three LED holes for the plexi version to maximize the lighting power. The openings to fill or drain the liquid are doubled here: One at the side and one at the bottom.Included in delivery:8x M4x8mm screw4x M4 nut2x G1/4 locking screw1x allen key 2,5mm
Measurements 150mm Version:Measurements with mounting (LxWxD): 150 x 136 x 79,5mmMeasurements without mounting (LxW): 150 x 60mmâ?¨Diameter of the Plexitube: 60mm
Measurements 250mm Version:Measurements with mounting (LxWxD): 251 x 136 x 79,5mmMeasurements without mounting(LxW): 251 x 60mm�Diameter of the Plexitube: 60mm��
The Eisbecher Lite
This reservoir is being operated with a seperate pump as well but it slightly differentiates itself from its other four siblings. Instead of the Bubble Down and the standpipe Alphacool has installed a bar in the middle that intercepts all turbulences of the water. Further, this bar with the Alphacool Logo in the Plexi version can be lighted with three LEDs - a true eyecatcher for every system. But you do not have to go without the Lighttower effect here as there is a small standpipe mounted in the top.The openings to fill or drain the liquid are doubled here: One at the side and one at the bottom.���Included in delivery:8x M4x8mm screw4x M4 nut2x G1/4 locking screw1x allen key 2,5mm
Measurements 150mm Version:Measurements with mounting (LxWxD): 150 x 136 x 79,5mmMeasurements without mounting (LxW): 150 x 60mmâ?¨Diameter of the Plexitube: 60mm
Measurements 250mm Version:Measurements with mounting (LxWxD): 251 x 136 x 79,5mmMeasurements without mounting(LxW): 251 x 60mmâ?¨Diameter of the Plexitube: 60mmâ?¨

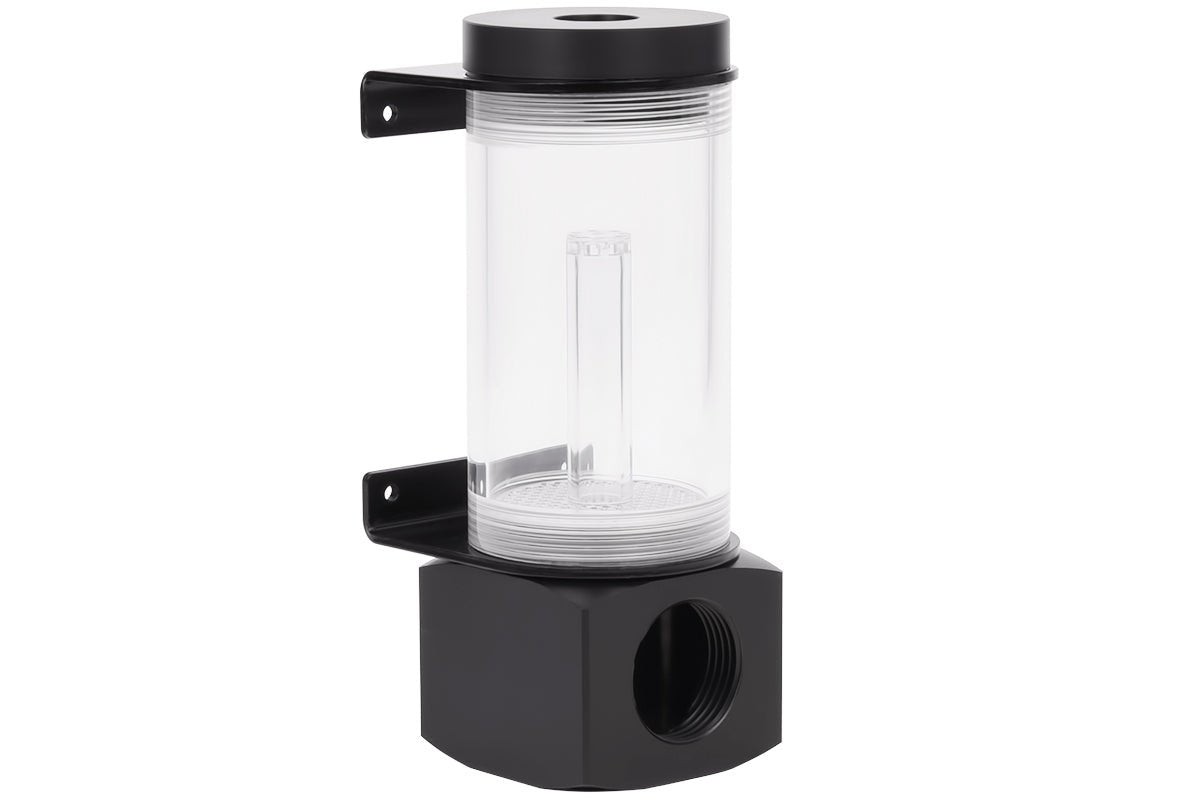

The Eisbecher Lighttower All-In-One
Where most reservoirs can only handle one or two different pumps this version can handle a whole row of different pumps. Alternatively, you can even use the Lighttower All-In-One without a pump. This special flexibility of the reservoir falls back onto its sophisticated construction. At the back of the socket of the pump is a 1/2 wide thread where a whole range of different pumpadapters can be installed. This adapter enables an easy mounting of different pumps. The peforated plate and the standpipe are being used in this model as well. This version of the Eisbecher is by far the most versatile.��Included in delivery:4x M4x16mm screw4x M4x8mm screw4x M4 nut1x G1/4 locking screw1x pump adapter for Phobya DC12 - 2201x pump adapter for Phobya DC12 - 260/4001x pump adapter for Eheim 1046/1048; with three additional adapter even Eheim 1260/1262, Laing D5 inkl. 1/2 AG (Standard Laing attachment), Hydor L301x allen key 2,5mm
Measurements 150mm Version:Measurements with mounting (LxWxD): 170 x 136 x 80mmMeasurements without mounting(LxW): 170 x 60mm�Diameter of the Plexitube: 60mm�Measurements 250mm Version:Measurements with mounting (LxWxD): 270 x 136 x 80mmMeasurements without mounting(LxW): 270 x 60mm�Diameter of the Plexitube: 60mm����
The Eisbecher DDC
The Eisbecher for the Laing DDC pump leaves no opportunity unused. The pump is easily installed with four screws at the bottom. For an good optical view suggest Alphacool using the Alphacool Metal bottom for the Laing DDC. There are two 5mm holes for the LEDs in the plexi version and the lighting module is within the lid to sustain a lighting from the top. Standpipe and Bubble Down both do an excellent work in this model as well. The fastening happens through either the mountings or through the bases that are included in the delivery. There are even threads in the socket of the pump should there be a free space at the 3,5 drive bay (pump decoupling with M4 inner thread and outer thread needed - Art. 52007).â?¨Included in delivery:4x M4x25mm screw8x M4x8mm screw4x M4 nut2x base1x allen key 2,5mm
Measurements 150mm Version:Measurements incl. mounting without base (LxWxD): 177 x 136 x 79mmMeasurements without mounting incl. base (LxWxD): 222 x 87,5 x 80,5mmâ?¨Diameter of the Plexitube: 60mmâ?¨
Measurements 250mm Version:Measurements incl. mounting without base (LxWxD): 276,5 x 136 x 79mmMeasurements without mounting incl. base (LxWxD): 321,5 x 87,5 x 80,5mm�Diameter of the Plexitube: 60mm����
The Eisbecher D5
This Eisbecher is the older brother of the DDC version. The pump is being mounted with a mounting ring that holds the pump with eight screws. You can use four LEDs that are hidden within the socke of the pump for the lighting of the plexi version. The lighting of the top is fascilitated through the lighting module. Standpipe and Bubble Down both do an excellent job in this model as well. The fastening happens through either the mountings or through the bases that are included in the delivery. There are even threads in the socket of the pump should there be a free space at the 3,5 drive bay (pump decoupling with M4 inner thread and outer thread needed - Art. 52007).
Included in delivery:4x M4x25mm screw8x M4x8mm screw4x M4 nut1x mounting ring1x O-Ring ID ca. 54mm2x base1x allen key 2,5mm
Measurements 150mm Version:Measurements incl. mounting without base (LxWxD): 157,5 x 136 x 79,5mmMeasurements without mounting incl. base (LxWxD): 203,5 x 87,5 x 80mmâ?¨Diameter of the Plexitube: 60mm
Measurements 250mm Version:Measurements incl. mounting without base (LxWxD): 257,5 x 136 x 79,5mmMeasurements without mounting incl. base (LxWxD): 303,5 x 87,5 x 80mmâ?¨Diameter of the Plexitube: 60mmâ?¨
NoticeAlphacool recommended for correct operation of the water cooling distilled water!
