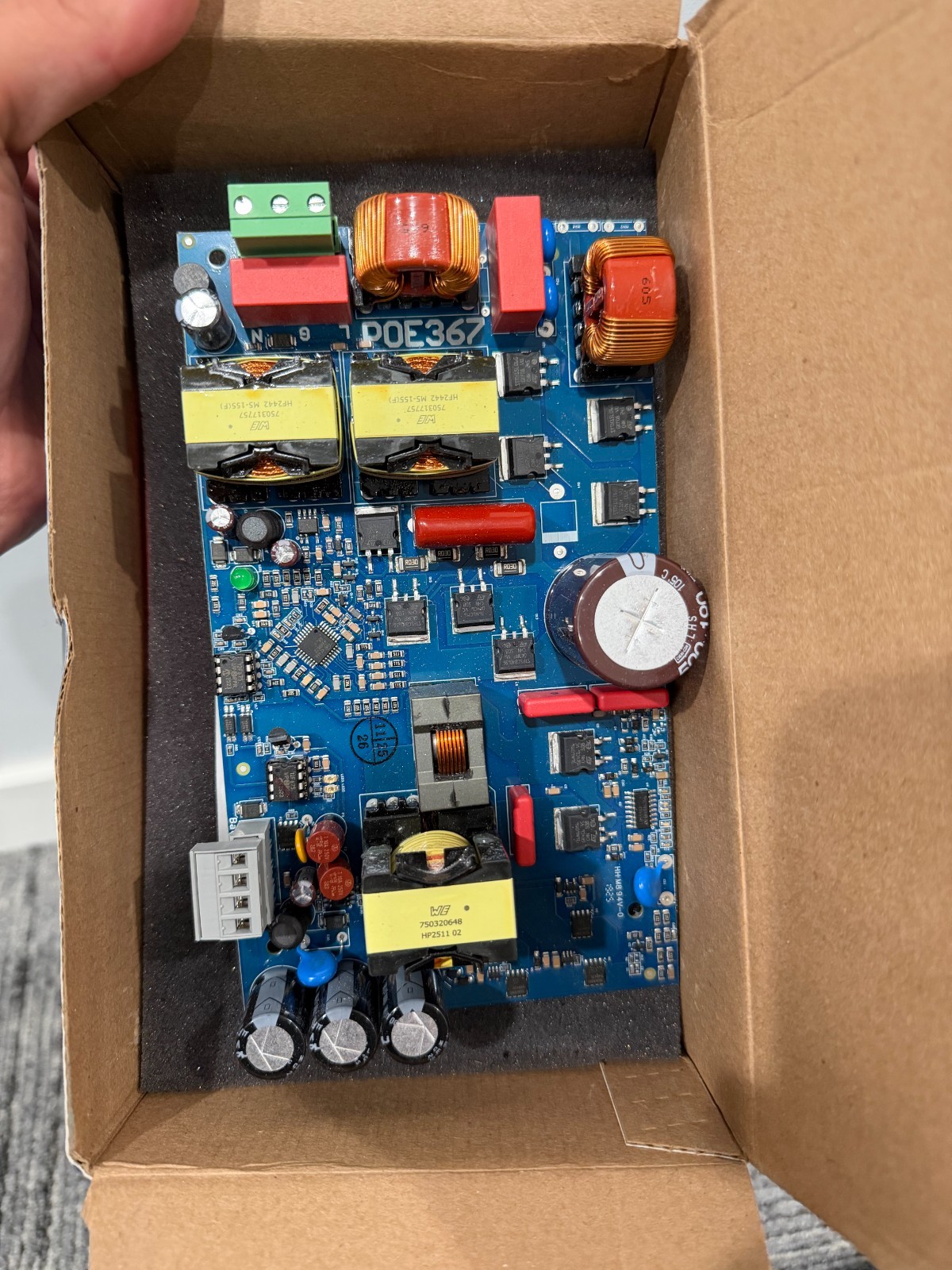

Altronix Power Supply Board - POE367
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Altronix Power Supply Board - POE367
Price: US $300.00
These units are essentially "open box" items and were swapped out of brand new Altronix NETWAYSP4TC W57's due to them having the incorrect input voltage that was needed.
Boxes come in factory POE360 boxes (the ones I had to buy for the correct voltage) so please do not be alarmed by the box label. These are true POE367 power supplies from Altronix that I do not have a need for.NO REFUNDS OR RETURNS.
  • Input
    • Voltage: 208-277VAC nominal (+10-15%), 50/60Hz, 2A.
    • Input Fuse: 5A/250V

  • Output
    • Voltage Range: 56VDC/360W
    • Current: 6.4A continuous supply current
    • Maximum Power: 360W total power (refer to operating temperature) Integral surge protection\

  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • Charging Circuit: 0.75A
    • (Batteries are sold separately).
  • Indicators (LED)
    • AC and DC LED Indicators

  • Temperature
      • Operating Temperature:
        • 360W: – 30ºC to 65ºC (– 22ºF to 149F).
        • 240W: – 30ºC to 70ºC (– 22ºF to 158ºF).
    • Storage Temperature: – 30ºC to 85ºC (– 22ºF to 185ºF).
    • Relative Humidity: 85% +/–5%.
    • BTU/Hr. (approx.): 184 BTU/Hr.
