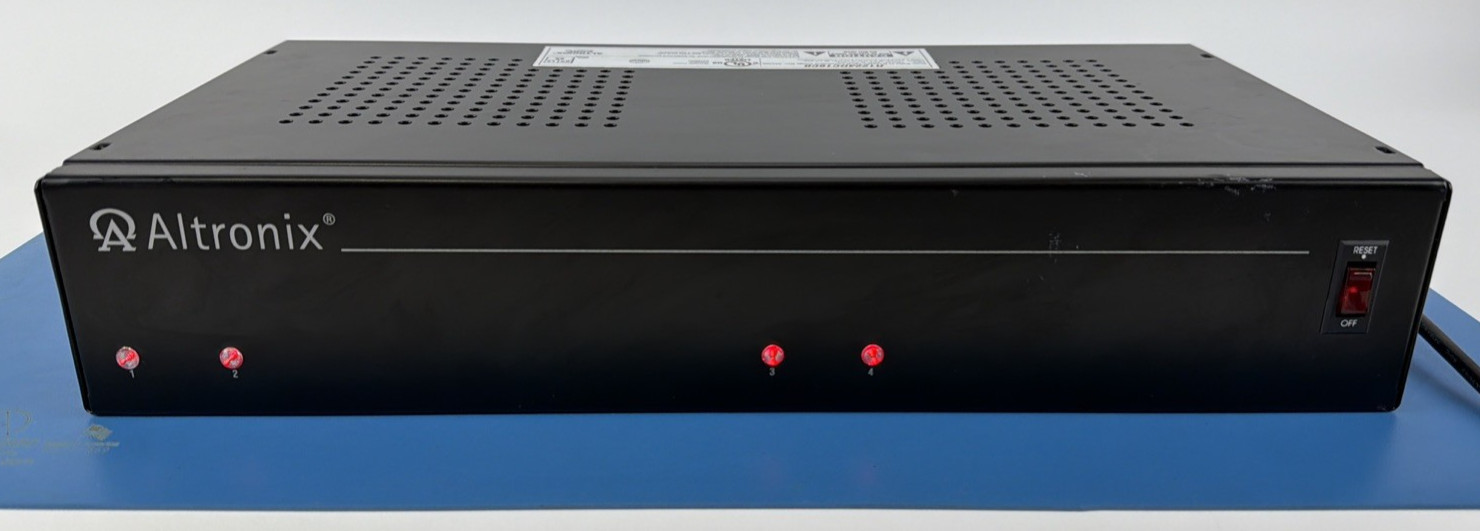

Altronix R1224DC16CB CCTV Power Supply 115 VAC to 16x 12 or 24 VDC 18A output
Altronix Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated auto-resettable outputs for power-limited installation.
Removed from working environment with 30 day warranty in good condition. Does not include rack ears.

• Input
  • 115VAC 60 Hz, 3.74A @ 12VDC or 6.26A @ 24VDC.
• Output
  • 12VDC @ 4.5A per channel of 4 outputs or 24VDC @ 4.5A per channel of 4 outputs. (2A max. per individual output).
  • 18A total supply current.
  • Sixteen (16) Class 2 Rated PTC protected power limited outputs.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
• Temperature
  • Operating temperature: 0° C to 49° C ( 32° F to 120° F).
  • Storage temperature: -20° C to 70° C ( -4° F to 158° F ).
  • BTU/Hr. (approx.):
    • 12VDC - 130 BTU/Hr.
    • 24VDC - 260 BTU/Hr.
  • System AC input VA requirement: 720 VA.
• Visual Indicators
  • Power LED indicators per group of 4 outputs.
• Special Features
  • Illuminated power disconnect circuit breaker with manual reset.
  • Removable terminal blocks w/locking screw flange.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • Rack mount chassis for use in standard EIA 19" rack.
  • Ease of installation saves time and eliminates costly labor.
