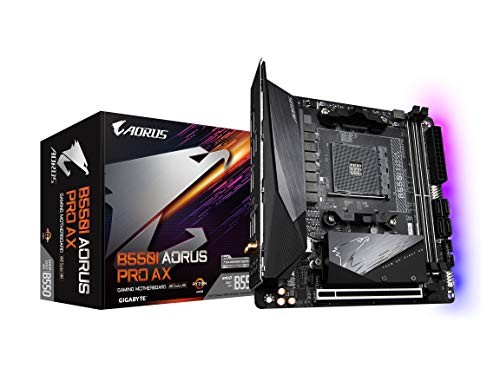

Aorus Ultra Durable B550I AORUS PRO AX Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Mini ITX (244119) Aorus Ultra Durable B550I AORUS PRO AX Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Mini ITX (244119)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

Supports 3rd Gen AMD Ryzen Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)

Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate

Ultra Durable PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard

Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna

AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR

Blazing Fast 2.5GbE LAN with Bandwidth Management

USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Pre-installed IO Shield for Easy and Quick InstallationCPU
AMD Socket AM4, support for: 3rd Generation AMD RyzenTM processors/ New Generation AMD RyzenTM with RadeonTM Graphics processorsChipset
AMD B550Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD RyzenTM Processors:
Support for DDR4 MHz memory modulesNew Generation AMD RyzenTM with RadeonTM Graphics processors:
Support for DDR4 MHz memory modulesDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesOnboard Graphics
Integrated in the New Generation AMD RyzenTM with RadeonTM Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz
-Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160 at 60 Hz
-Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time
Maximum shared memory of 16 GBAudio
Realtek ALC1220-VB codec
-The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
-To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.LAN
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)Wireless Communication module
Intel Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
-Actual data rate may vary depending on environment and equipment.Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD RyzenTM processors support PCIe 4.0 x16 mode
New Generation AMD RyzenTM with RadeonTM Graphics processors support PCIe 3.0 x16 modeStorage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
- 3rd Generation AMD RyzenTM processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD RyzenTM with RadeonTM Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panelChipset:
1 x USB Type-CTM port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB headerInternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumperBack Panel Connectors
1 x DisplayPort
2 x HDMI ports
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
1 x USB Type-CTM port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacksI/O Controller
iTE I/O Controller ChipH/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
-Whether the fan speed control function is supported will depend on the cooler you install.BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features
Support for APP Center
-Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
at BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress InstallBundled Software
Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System
Support for Windows 10 64-bitForm Factor
Mini-ITX Form Factor 17.0cm x 17.0cmRemark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.Package Contents:

• Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard
• Norton Internet Security (OEM version)
• XSplit Gamecaster + Broadcaster (12 months license)
• Realtek 8125 Gaming LAN Bandwidth Control Utility

SpecificationPhysical CharacteristicsForm FactorMini Warranty3 YearI/O ExpansionsTotal Number of Expansion Slots1Number of PCI Express x16 Slots1Total Number of PCI Express Slots1MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots2Memory Speed Supported

• 5300 MHz
• 5200 MHz
• 5000 MHz
• 4866 MHz
• 4600 MHz
• 4400 MHz
• 4000 MHz
• 3600 MHz
• 3333 MHz
• 3200 MHz
• 2933 MHz
• 2667 MHz
• 2400 MHz
• 2133 MHz

Memory Form Factor

• Ryzen 3
• Ryzen 5
• Ryzen 7
• Ryzen 9
• Ryzen 3 PRO
• Ryzen 5 Pro
• Ryzen 7 PRO
• Ryzen 9 PRO

Total Processor Supported1Processor SocketSocket AM4Chipset ModelB550Onboard InterfacesNumber of SATA Interfaces4Total Number of Onboard USB Ports4Number of Onboard USB 3.2 Ports2Number of M.2 Interfaces2Number of Onboard USB 2.0 of USB 3.2 Ports6HDMIYesTotal Number of USB Ports6Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
