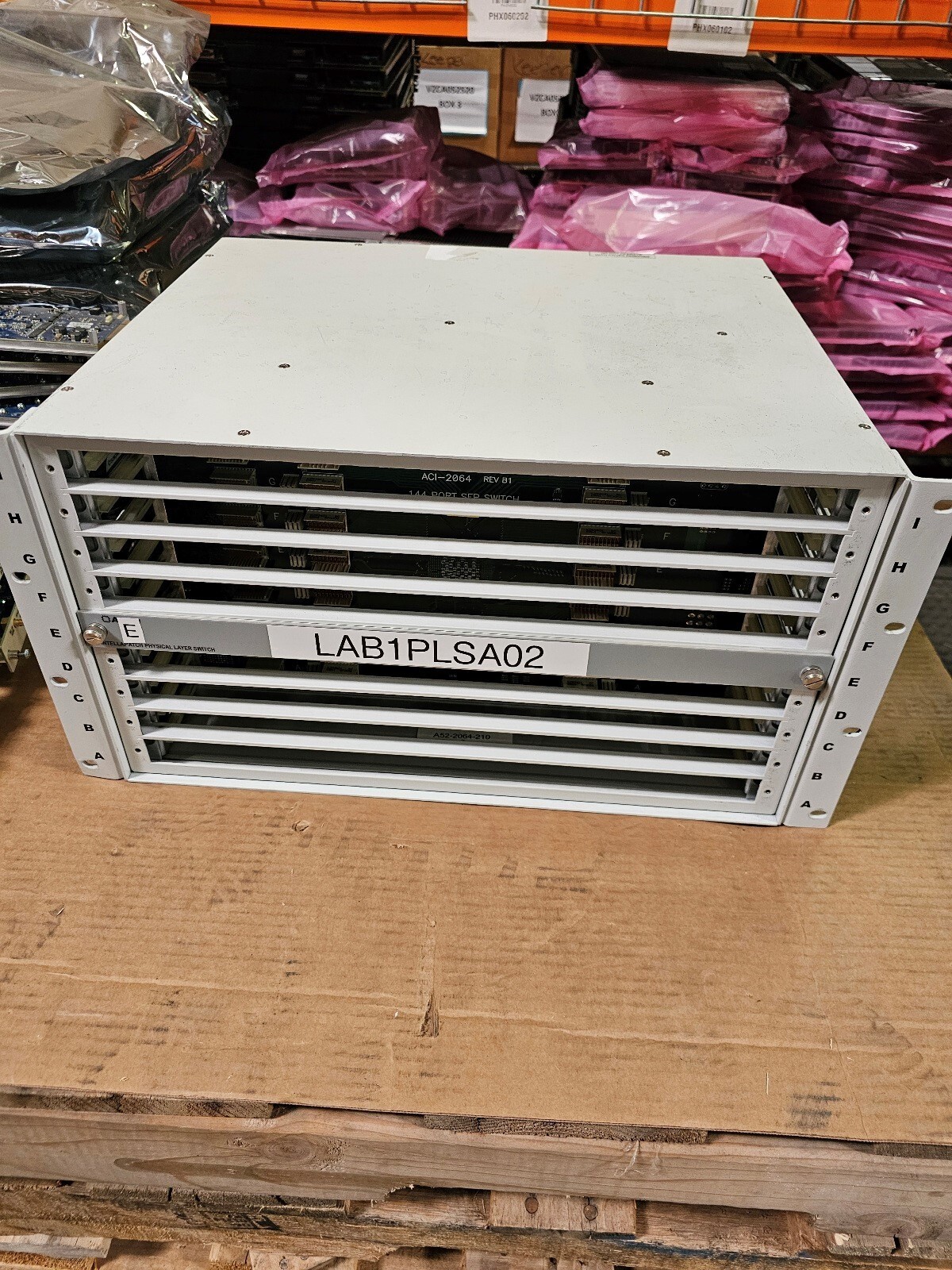

Specifications: ACI-2064-C00, ACI-2064-C01• Number of blade slots: 9• Number of ports: up to 144, depending on blade type• Protocols: blade specific• Compliant with: 1, 2, 4 and 10 Gbps Fibre Channel,10, 100, 1000 Mbps, and 10 Gbps Ethernet OC-3/STM-1SONET/SDH, OC-12/STM-4 SONET/SDH, OC-48/STM-16SONET/SDH, T1/E1/J1; DS3, T3/STS-1; FDDI, STM1/4/16, ESCON, and a multi-rate blade capable ofsupporting HD video and NTSC/PAL• Blade Data Rate: 10 Mbps to 10 GbpsController Card• Includes Controller Card with dual 10/100/1000management interfacesSerial Interface• Ports: 2 RS-232 Serial• Rate: 9,600 baud• Mode: 8 data bits, no parity, 1 stop bit, no flow control• Maximum Cable Length: 15 meters (49.21 feet)• Rear Panel Connectors: DB-9 femaleManagement Port• Protocol: TCP/IP• Interface: 10/100/1000 Base-T Ethernet• Rear Panel Connector: 2 RJ45• Two ports for redundant connectionsWeight• 10.09 kg (22.2 lbs) without blades or transceiver modules• Power (max): 90-240 VAC Auto-sensing, 50/60 Hzsingle-phase (600 W) or 48 VDC• Operating Temperature: 0°C to 50°C (32°F to 123°F)• Storage Temperature: -40° to 85° C• Humidity: 0% to 90 % RH (non-condensing)Dimensions• 16.75”W x 15.00”D x 9.85”H• 42.5cm x 38.1cm x 25.02cm• 6 RU
