Apple II HXC modded GotekAdapter
Thisadapter allows you to connect an HXC firmware modded Gotek to your Apple IIcomputer to emulate a 5.25" floppy drive and load disk images without theneed of a real floppy drive.
Supported Models include: Apple II, Apple II plus, Apple IIe, Apple IIc, Apple IIc Plus, Apple IIgs, and Macintosh with Apple IIe card.
Thisadapter makes it so much simpler as you no longer have to build your own cable. Without this adapter you would need to wire up the below pinout yourself:
Apple II floppy interface <------------------> Gotek floppy interface (Internal 20pins / Ext DB-19)PH0 (Int pin 2 / DB19 pin 11) <------------------> UART RX Pin (J4)PH1 (Int pin 4 / DB19 pin 12) <------------------> UART TX PinPH2 (Int pin 6 / DB19 pin 13) <------------------> /DIR (18)PH3 (Int pin 8 / DB19 pin 14) <------------------> /STEP (20)/WREQ (Int pin 10 / DB19 pin 15) <------------------> /WGATE (24)SEL (Int pin 12 / DB19 pin 16) <------------------> /SIDE1 (32)/DRVEN (Int pin 14 / DB19 pin 17 or pin 9 *) <-------> /DS0 (10)RD (Int pin 16 / DB19 pin 18) <------------------> /RDATA (30)WR (Int pin 18 / DB19 pin 19) <------------------> /WDATA (22)WRPROT (Int pin 20 / DB19 pin 10) <------------------> /WPT (28)Power :VSS/GND (Int pins 1,3,5,7 / DB19 pins 1,2,3 ) <---------> Gotek VSS power input (Power pins 2, 3) + Gotek floppy interfaces pins 33, 27, 23, 21.+5V (Int pin 11 / DB19 pin 6) <---------> Gotek +5V power input (Power pin 1).
******UPDATE: FLASH FLOPPY FIRMWARE has caught up with HXC Firmware for this adapter. This adapter will work on both class="MsoNormal" normal;font-variant-caps: normal;orphans: 2;text-align:start;widows: 2;-webkit-text-stroke-width: 0px;text-decoration-thickness: initial;text-decoration-style: initial;text-decoration-color: initial;word-spacing:0px">

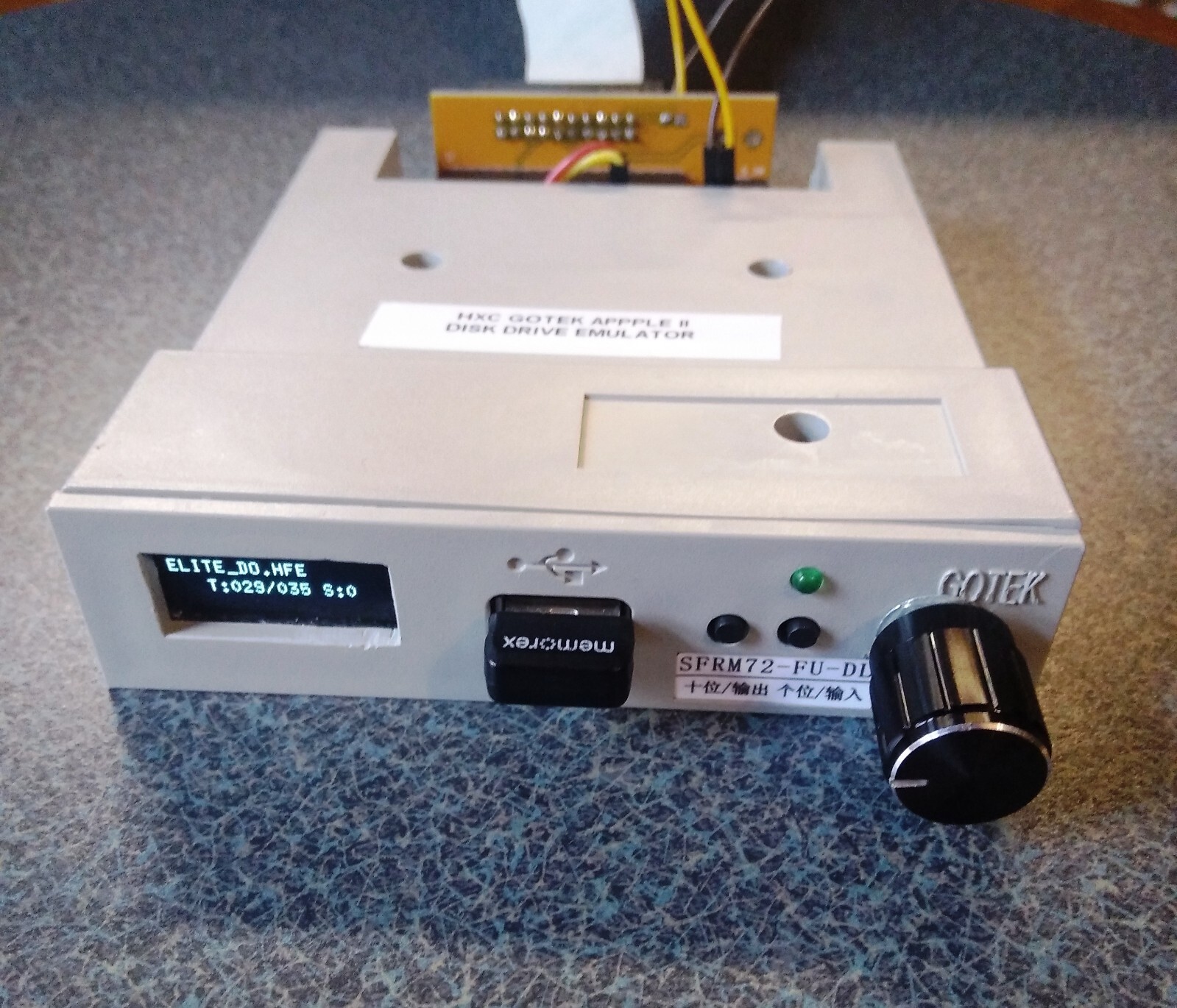

*****My HXC modded gotek is NOT INCLUDED! Its onlyshown to demonstrate the adapter. You need to supply your own HXC modded Gotekand flat ribbon cable*****
Pleasefollow this link to the HXC website for information and videos on how to modifya Gotek for use with HXC firmware and how to load up Apple II disk images:
Apple II hxc support is a relatively recent addition and is in active development with new features being added. Please reach out to Jeff at HXC forums for any questions or requests for Apple II development. Your participation helps make a better product!
Pleasesee photos and contact me with any questions.Over 25+ years of sellingon !
