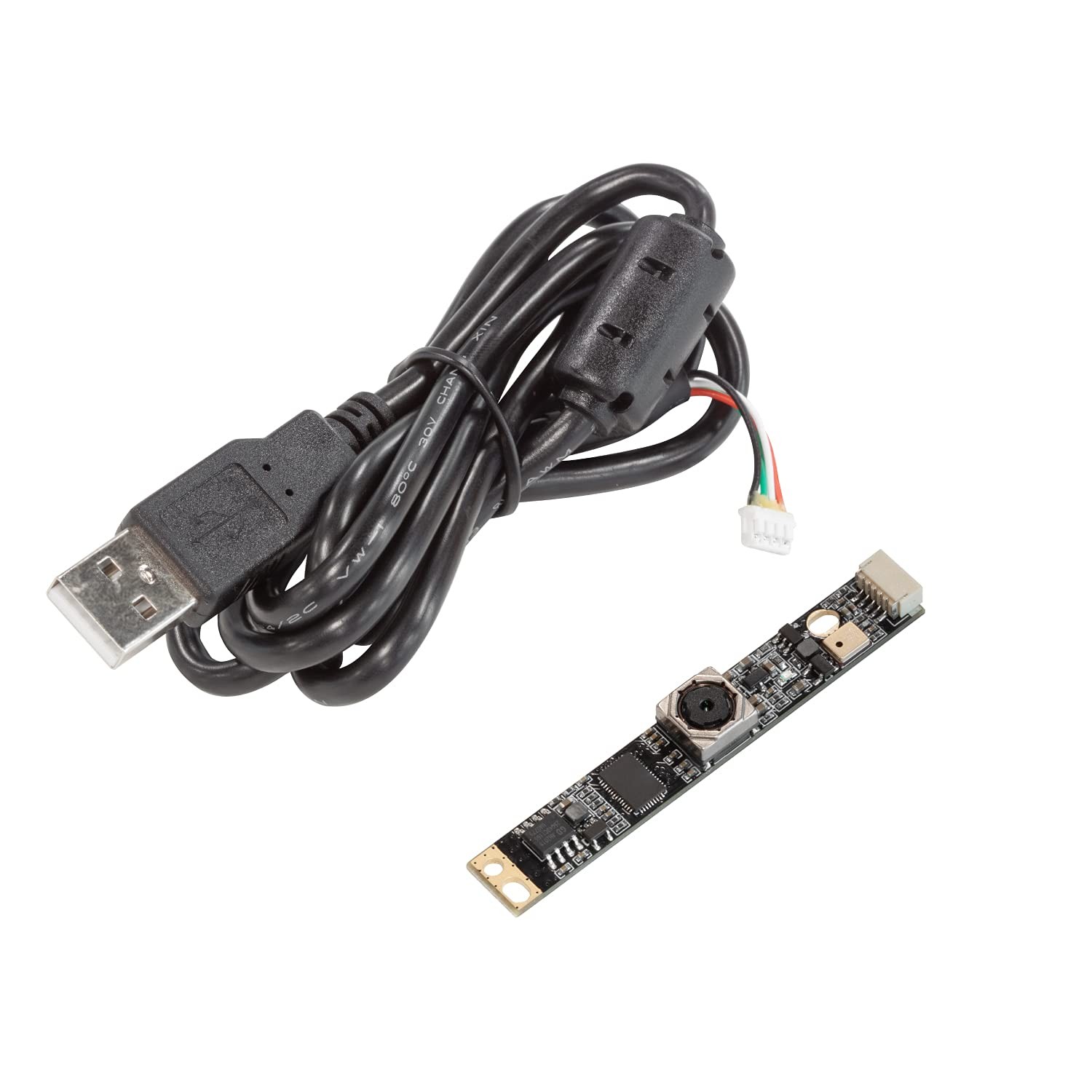

Arducam 5MP Autofocus USB Camera for Raspberry Pi and Computer, 1/4” OV5648 USB2.0 Lightburn Camera, Video Webcam with Microphone

• 5 Megapixel USB camera High Definition 2592*1944 resolution webcam with autofocus lens is able to ensure your videos are always sharp and crystal clear.
• 1/4” CMOS OV5640 lightburn camera. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.
• Super small and Mini Size for your lightburn laser engraver. Compact lightburn laser camera for all kinds of machine vision.
• Just plug the USB cable into your PC’s USB port, plug and play, there is no need to download or install complicated driving software.
• USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB. Note: The autofocus function requires a distance of 10 cm ~ infinite from the object to achieve accurate focus.

The UB0238 is a new member of the Arducam’s USB camera family. It’s a 5MP, UVC compliant, USB 2.0 camera. The camera can also be used as a lightburn camera, which can capture images of the workpiece and display them in the lightburn software. This is especially useful for working with irregularly-shaped workpieces or for engraving on objects that do not have a flat surface. This USB camera is based on the 1/4” OV5648 image sensor.

SPECS

Camera

- Sensor: 1/4” OV5648

- Resolution: 2592(H)x1944(V)

-Frame Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x 480.

Lens

-Field of View (FOV): 65°(H)

-Lens Mount: M6

-IR Sensitivity: Integral 650 IR filter, only visible light

Functionality and Compatibility

-Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.

-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC

Power

-Power supply: USB powered 5V

-Working Current: MAX 250mA

Physical

-Operating Temp: -4°F~158°F (-20°C~+70°C).

-Dimension: 62mmx9mmx5mm

-Cable Length: 3.3ft (1M)
