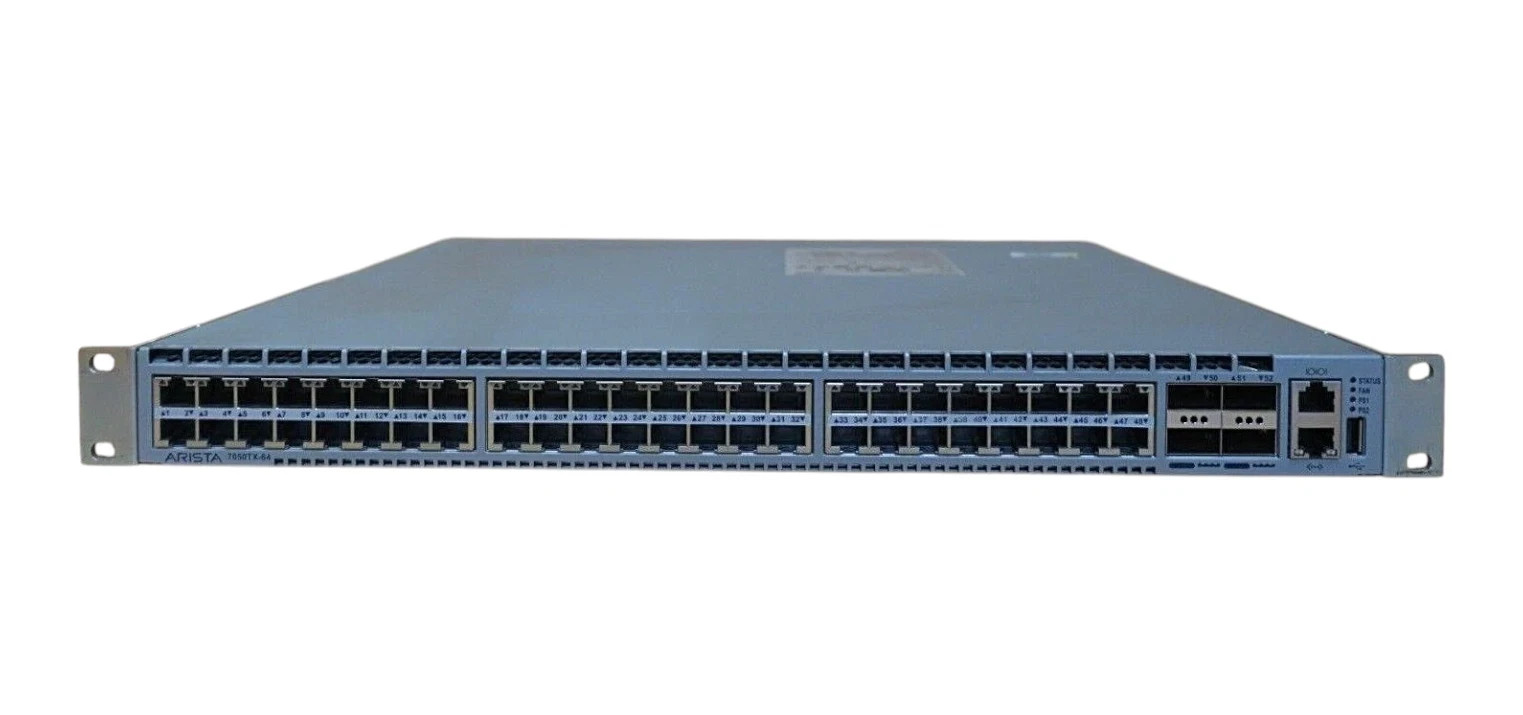

Arista DCS-7050TX-64-R 48x RJ45 1/10GBASE-T 4x 40GbE QSFP+ Switch R-F Air 2x AC PSU
Model:7050TX-64
P/N: DCS-7050TX-64-R
In Good Condition And Full Working Order, with 1 year warranty
With rack mount brackets - these allow you to mount it either way round in the rack
Included:
- Arista DCS-7050TX-64-R 48x RJ45 1/10GBASE-T 4x 40GbE QSFP+ Switch R-F Air
- 1 xArista Rack Ears ASY-00921-03
- 2 x AristaPWR-500AC-RASPWR-00160-03Rear to Front AirFlow
- 4 xAristaFAN-7000-RASY-00246-10 Rear to Front AirFlow Fan Module
Overview:
The Arista 7050TX 10/40 Data Center Switch Series are purpose built 10/40GbE data center switches in compact and energy efficient for factors with wire speed L2 and L3 features combined with low latency and advanced features for software-defined cloud networking. The backwards compatibility with existing gigabit Ethernet cabling reduces the cost of migration. With Arista EOS you can simplify network administration, with advanced monitoring and automation capabilities such as Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch.
Specifications
- Network Ports: 48x 10 Gigabit Ethernet RJ-45
- Uplink Ports: 4x 40 Gigabit Ethernet QSFP+
- Management Ports: 1x RJ-45 Management, 1x RS-232 RJ-45, 1x USB
- DRAM: Up to 8GB
- CPU: High Performance x86 CPU
- Switching Capacity: 1.28Tbps
- Forwarding Rate: 960 Mpps
- MAC Address Table Size: 32,000
- Rack Mounts: Included (1-RU)
- Model Number: DCS-7050TX-64-R
Boot Log
Press Control-Cnow to enter Aboot shell
Booting flash:EOS.swi
[ 7.369447] Starting new kernel
[ 1.857783] Running dosfsck on: /mnt/flash
fsck.fat 3.0.23(2013-10-15)
/dev/sda1: 24files, 292532/965533 clusters
Switching rootfs
Welcome to AristaNetworks EOS 4.18.11M
New seat seat0.
[ OK ]ConnMgr: Starting TimeAgent: [ OK ]
[ OK ]
Starting ProcMgr:[ OK]
Starting EOSinitialization stage 1: [ OK ]
Starting NorCalinitialization: [ OK ]
Starting EOSinitialization stage 2: [ OK ]
Starting Power OnSelf Test (POST): [ OK ]
Completing EOSinitialization (press ESC to skip): [OK ]
Serial Number:JPE17390330
System RAM:3827836 kB
Flash Memorysize: 3.7G
localhost login:admin
localhost#sh ver
Hardwareversion: 11.12
Serialnumber: JPE17390330
System MACaddress: 2899.3a96.a747
Software imageversion: 4.18.11M
Architecture: i386
Internal buildversion: 4.18.11M-11741054.41811M
Internal class="MsoNoSpacing">
Uptime: 2 minutes
Totalmemory: 3827836 kB
Free memory: 2826724 kB
localhost#sh inv
Model Description
class="MsoNoSpacing"> DCS-7050TX-64 48 10GbE-T + 4 QSFP+ 1RU
HW VersionSerial Number Mfg Date Epoch
----------- -------------- ---------- -----
11.12JPE17390330 2017-09-29 01.00
System has 2power supply slots
Slot Model Serial Number
---- ---------------- ----------------
1PWR-500AC-R GWRD74R0MKD
2PWR-500AC-R GWRD6AV2HLG
System has 4 fanmodules
ModuleNumber of Fans Model Serial Number
------- --------------- --------------------------------
11 FAN-7000-R N/A
21 FAN-7000-R N/A
31 FAN-7000-R N/A
41 FAN-7000-R N/A
System has 77ports
Type Count
---------------- ----
Management 1
Switched 64
Unconnected 12
System has 52transceiver slots
Port Manufacturer Model Serial Number Rev
---- ---------------- -------------------------------- ----
1Arista NetworksDCS-7050TX-64 JPE17390330 11.12
2Arista NetworksDCS-7050TX-64 JPE17390330 11.12
3Arista NetworksDCS-7050TX-64 JPE17390330 11.12
4Arista NetworksDCS-7050TX-64 JPE17390330 11.12
5Arista NetworksDCS-7050TX-64 JPE17390330 11.12
6Arista NetworksDCS-7050TX-64 JPE17390330 11.12
7Arista NetworksDCS-7050TX-64 JPE17390330 11.12
8Arista NetworksDCS-7050TX-64 JPE17390330 11.12
9Arista NetworksDCS-7050TX-64 JPE17390330 11.12
10Arista NetworksDCS-7050TX-64 JPE17390330 11.12
11Arista NetworksDCS-7050TX-64 JPE17390330 11.12
12Arista NetworksDCS-7050TX-64 JPE17390330 11.12
13Arista NetworksDCS-7050TX-64 JPE17390330 11.12
14Arista NetworksDCS-7050TX-64 JPE17390330 11.12
15Arista NetworksDCS-7050TX-64 JPE17390330 11.12
16Arista NetworksDCS-7050TX-64 JPE17390330 11.12
17Arista NetworksDCS-7050TX-64 JPE17390330 11.12
18Arista NetworksDCS-7050TX-64 JPE17390330 11.12
19Arista NetworksDCS-7050TX-64 JPE17390330 11.12
20Arista NetworksDCS-7050TX-64 JPE17390330 11.12
21Arista NetworksDCS-7050TX-64 JPE17390330 11.12
22Arista NetworksDCS-7050TX-64 JPE17390330 11.12
23Arista NetworksDCS-7050TX-64 JPE17390330 11.12
24Arista NetworksDCS-7050TX-64 JPE17390330 11.12
25Arista NetworksDCS-7050TX-64 JPE17390330 11.12
26Arista NetworksDCS-7050TX-64 JPE17390330 11.12
27Arista NetworksDCS-7050TX-64 JPE17390330 11.12
28Arista NetworksDCS-7050TX-64 JPE17390330 11.12
29Arista NetworksDCS-7050TX-64 JPE17390330 11.12
30Arista NetworksDCS-7050TX-64 JPE17390330 11.12
31Arista NetworksDCS-7050TX-64 JPE17390330 11.12
32Arista Networks DCS-7050TX-64 JPE17390330 11.12
33Arista NetworksDCS-7050TX-64 JPE17390330 11.12
34Arista NetworksDCS-7050TX-64 JPE17390330 11.12
35Arista NetworksDCS-7050TX-64 JPE17390330 11.12
36Arista Networks DCS-7050TX-64 JPE17390330 11.12
37Arista NetworksDCS-7050TX-64 JPE17390330 11.12
38Arista NetworksDCS-7050TX-64 JPE17390330 11.12
39Arista NetworksDCS-7050TX-64 JPE17390330 11.12
40Arista Networks DCS-7050TX-64 JPE17390330 11.12
41Arista NetworksDCS-7050TX-64 JPE17390330 11.12
42Arista NetworksDCS-7050TX-64 JPE17390330 11.12
43Arista NetworksDCS-7050TX-64 JPE17390330 11.12
44Arista Networks DCS-7050TX-64 JPE17390330 11.12
45Arista NetworksDCS-7050TX-64 JPE17390330 11.12
46Arista NetworksDCS-7050TX-64 JPE17390330 11.12
47Arista NetworksDCS-7050TX-64 JPE17390330 11.12
48Arista Networks DCS-7050TX-64 JPE17390330 11.12
49Not Present
50Not Present
51Not Present
52Not Present
