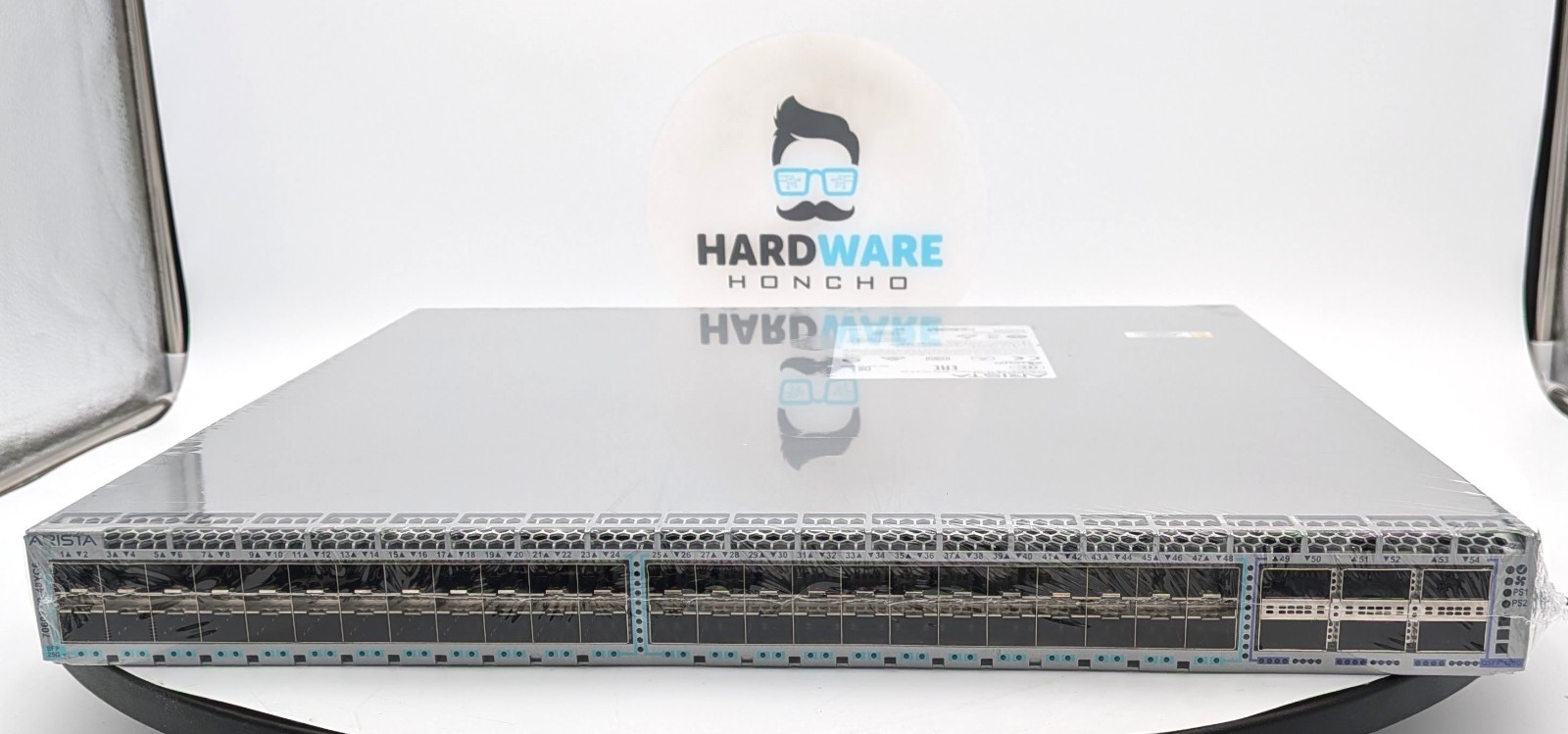

Arista DCS-7060SX2-48YC6-R 48x25G 6x100G Data Center Leaf Switch – Grade B Refurb

Condition: Grade B Refurbished. Item has been professionally inspected and tested to full working condition. May show moderate cosmetic wear including light scratches or scuffs consistent with previous use. Fully functional.

Product Overview

The Arista DCS-7060SX2-48YC6-R is a high-performance 1U fixed-configuration data center switch from the Arista 7060X Series — purpose-built for high-density 25G server access and 100G spine uplink deployments in modern cloud-scale, enterprise, and HPC data center leaf-spine architectures. Delivering 48 x 25G SFP28 downlink ports (configurable in groups of 4 as 10G/1G), 6 x 100G QSFP28 uplink ports (supporting 100G, 40G, 4x10G, 4x25G, or 2x50G breakout), 3.6 Tbps aggregate switching capacity, 2.7 Bpps forwarding rate, and an industry-leading 450ns cut-through latency — the DCS-7060SX2-48YC6-R delivers wire-speed layer 2 and layer 3 forwarding with a 22MB shared packet buffer for demanding, latency-sensitive data center workloads.

Running Arista EOS (Extensible Operating System), the DCS-7060SX2-48YC6-R supports advanced features including VXLAN, EVPN, BGP, OSPF, IS-IS, MPLS, Multi-Agent Routing (MAR), sFlow, LANZ buffer monitoring, OpenConfig, streaming telemetry via gNMI/gRPC, Python scripting, and Ansible/Puppet/Chef automation — making it a future-ready platform for software-defined data center and cloud networking deployments. The -R suffix denotes rear-to-front (back-to-front) airflow — power supply exhaust and fan exhaust at the port side.

• Model: DCS-7060SX2-48YC6-R
• Series: Arista 7060X
• 25G SFP28 Ports: 48x (configurable 4-port groups as 25G or 10G/1G)
• 100G QSFP28 Uplink Ports: 6x (100G / 40G / 4x10G / 4x25G / 2x50G breakout)
• Total Ports: 54 data ports + management
• Switching Capacity: 3.6 Tbps
• Forwarding Rate: 2.7 Bpps
• Latency: 450ns (cut-through mode)
• MAC Address Table: 136,000 entries
• Packet Buffer: 22 MB shared
• Management Ports: 1x GbE RJ45, 1x RS-232 RJ-45 console, 1x USB
• Power Supplies: 2x PWR-500AC-R (1+1 redundant, back-to-front)
• Fan Modules: 4x FAN-7000-R (N+1 redundant, back-to-front)
• Airflow: Rear-to-front (back-to-front) — power-side intake, port-side exhaust
• Operating System: Arista EOS
• Layer: Layer 2/3 managed
• Form Factor: 1U Rack-mountable
• Ideal for: Data center leaf switch, 25G server access, 100G spine uplinks, leaf-spine architecture, HPC, financial trading, real-time analytics, cloud-scale deployments
• Features: 48x25G SFP28, 6x100G QSFP28, 3.6 Tbps, 450ns latency, VXLAN, EVPN, BGP, OSPF, sFlow, LANZ, OpenConfig, gNMI telemetry, Python/Ansible, EOS, 1+1 redundant PSU/fans

Physical Specifications

• Dimensions: 1.72 × 19.08 × 13.39 in (4.38 × 48.46 × 34 cm)
• Weight: 19.4 lbs (8.8 kg)
• Form Factor: 1U Rack-mountable
• Airflow: Rear-to-front (back-to-front) — -R suffix
• Operating Temperature: 32–113°F (0–45°C)

Included Accessories

• Arista DCS-7060SX2-48YC6-R switch
• 2x PWR-500AC-R power supplies (installed)
• 4x FAN-7000-R fan modules (installed)
• Rack mounting hardware (as available)
• Power cord(s)

Important Notes

• SFP28 and QSFP28 transceivers not included — 48x SFP28 ports accept 25G/10G/1G SFP28/SFP+ modules and 6x QSFP28 ports accept 100G/40G QSFP28/QSFP+ modules, DAC, or AOC cables, sold separately.
• Airflow direction: Rear-to-front (-R) — air enters from the power supply side and exits at the port/SFP side. Verify this matches your rack's hot/cold aisle cooling configuration before purchase.
• DCS-7060SX2-48YC6-R vs DCS-7060SX2-48YC6-F: The -R variant is rear-to-front (back-to-front) airflow. The -F variant is front-to-back (port-to-PSU) airflow. These are NOT interchangeable — choose based on your rack cooling direction.
• SFP28 port speed modes: Ports are configurable in groups of 4 — entire group must run at same speed (all 25G or all 10G/1G). Mixed speeds within a 4-port group are not supported.
• QSFP28 breakout flexibility: Each 100G QSFP28 port supports 5 speed modes — 100G, 40G, 4x10G, 4x25G, or 2x50G — providing maximum uplink flexibility.
• Arista EOS software and support contracts available from Arista Networks or authorized partners.

Hardware Honcho Grade B Refurbished Assurance

• Professionally inspected and tested to full working condition
• May show moderate cosmetic wear consistent with previous use — fully functional
• Verified authentic Arista Networks hardware
• Carefully packaged for secure shipment
• Fast shipping with professional handling

The Arista DCS-7060SX2-48YC6-R delivers 48-port 25G SFP28 server access, 6x100G QSFP28 spine uplinks, 3.6 Tbps wire-speed switching, 450ns cut-through latency, 22MB packet buffer, 1+1 redundant PSU and fans, Arista EOS intelligence, and full VXLAN/EVPN/BGP support — a proven and high-performance data center leaf switch for cloud-scale, enterprise, and HPC leaf-spine deployments, offered at Grade B pricing.
