Manufacturer and Model Information

• Brand: HPE
• Model Number: JL680A#ABA
• Device Type: Managed Switch

Key FeaturesPort Configuration

This switch is equipped with a diverse set of ports:

• 8 x 10/100/1000 Mbps Ethernet ports
• 2 x Gigabit SFP slots for fiber connections

Performance Metrics

• Switching Capacity: 20 Gbps
• Throughput: 14.88 Mpps
• Latency:
  • 5.2 μs (100 Mbps)
  • 3 μs (1 Gbps)

Capacity and Functionality

• Link Aggregation: 8 ports
• Static IPv4 Routes: 32
• Supported VLANs: 256
• Access Control Entries (ACEs) per ACL: 480
• Packet Buffer Size: 1.5 MB
• MAC Address Table Size: 8000 entries
• Jumbo Frame Support: 9216 bytes

Networking ProtocolsRouting and Management

• Routing Protocol: Static IP Routing
• Remote Management Protocols: SNMP v1, RMON, SNMP v3, SNMP v2c, HTTP, HTTPS, TFTP, RADIUS

Security Features

• Encryption: SSL
• Authentication: RADIUS

Additional Features

• Flow Control
• DHCP and ARP Support
• VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• IPv6 Support
• Half Duplex and Full Duplex Modes
• Spanning Tree Protocol (STP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Trusted Platform Module (TPM)
• LLDP Support
• Link Aggregation Control Protocol (LACP)
• Energy Efficient Ethernet
• Class of Service (CoS)
• BPDU Filter

Compliance Standards

This switch adheres to various IEEE standards, ensuring compatibility and performance:

• IEEE 802.3, 802.3u, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.1ab (LLDP), 802.3at, 802.3az

Hardware SpecificationsProcessor and Memory

• Processor: 1 x ARM Cortex-A9 at 800 MHz
• RAM: 512 MB SDRAM
• Flash Memory: 256 MB

Status Indicators

• Port Status
• Power Device: External Power Adapter
• Voltage Requirements: AC 120/230 V (50/60 Hz)
• Operational Power Consumption: 11 Watts

Ports

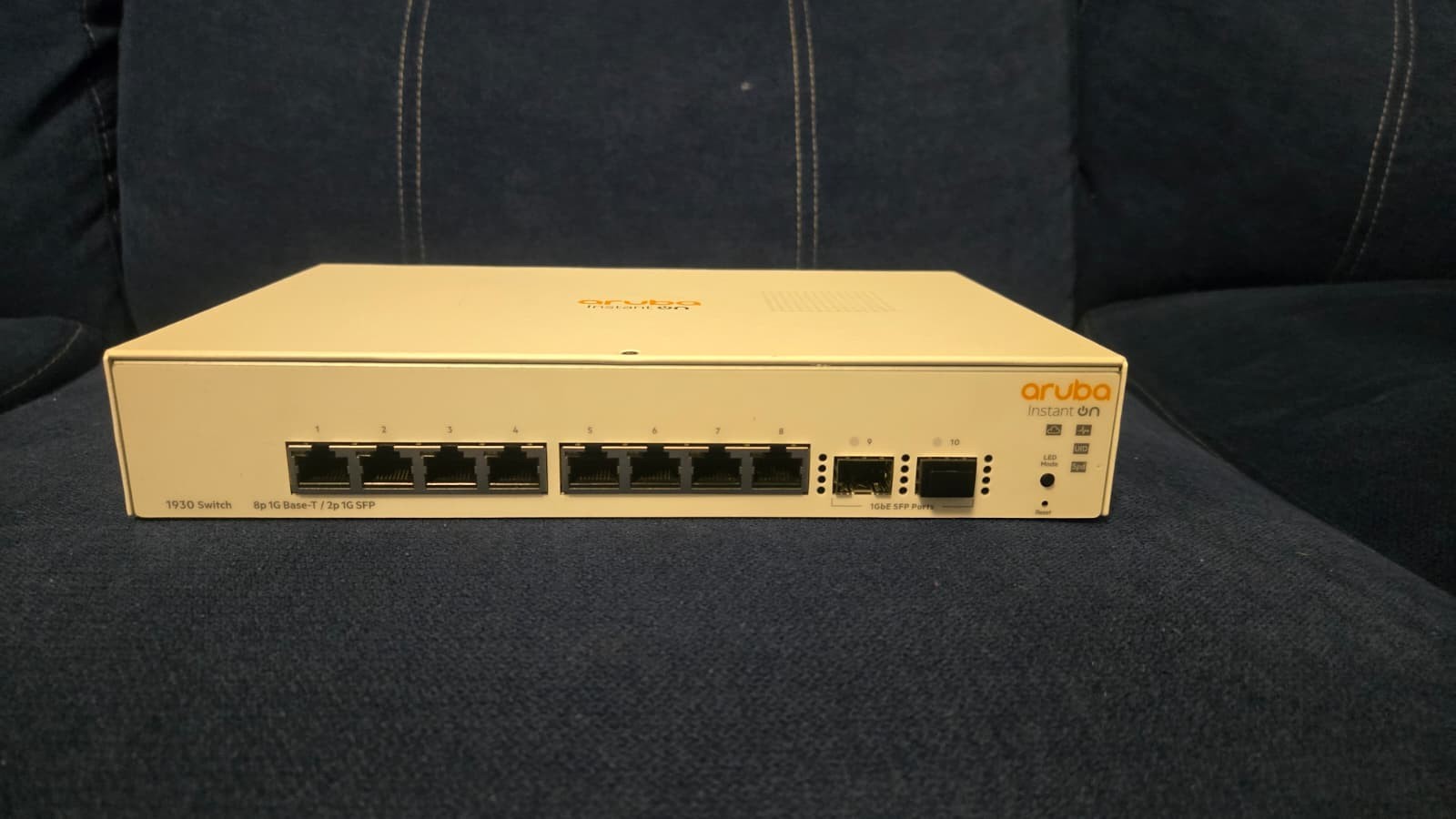

The HPE Aruba Instant On 1930 Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network solution. These ports allow for seamless connectivity between various devices, including computers, printers, servers, and more.

Increased Connectivity

With 8 ports, the HPE Aruba Instant On 1930 Managed Switch provides users with increased connectivity options. This allows businesses to connect multiple devices simultaneously without the need for additional switches or routers. Whether you need to connect workstations in an office environment or devices in a retail setting, the 8 ports ensure that you have enough connectivity options to meet your needs.

Flexibility

The 8 ports on the HPE Aruba Instant On 1930 Managed Switch offer flexibility in network design. Users have the freedom to connect devices in a variety of configurations, including daisy-chaining, star topology, or a combination of both. This flexibility allows for easy expansion and scalability as your business grows.

Improved Performance

Having 8 ports on the HPE Aruba Instant On 1930 Managed Switch ensures optimal performance for all connected devices. Each port supports high-speed data transfer rates, enabling fast and efficient communication between devices. Whether you are transferring large files or streaming multimedia content, the 8 ports ensure a smooth and uninterrupted experience.

Memory

The HPE Aruba Instant On 1930 Managed Switch features 8 GB of memory, providing users with ample storage capacity for network configurations and settings. This memory capacity is crucial for ensuring smooth operation and efficient performance of the switch.

Configuration Storage

With 8 GB of memory, users can store and save network configurations on the HPE Aruba Instant On 1930 Managed Switch itself. This eliminates the need for external storage devices or cloud-based solutions, simplifying the management process. Storing configurations directly on the switch ensures that settings are easily accessible and can be quickly applied when needed.

Backup and Recovery

The 8 GB of memory also allows for easy backup and recovery of network configurations. Users can create regular backups of the switch's settings, ensuring that in the event of a failure or unexpected reset, configurations can be easily restored. This feature provides peace of mind and minimizes downtime, as network settings can be quickly recovered without the need for manual reconfiguration.

Enhanced Performance

The ample memory capacity of 8 GB ensures that the HPE Aruba Instant On 1930 Managed Switch operates smoothly and efficiently. With this memory capacity, the switch can handle a high volume of data traffic and complex network operations without experiencing performance issues. This is particularly beneficial for businesses with demanding network requirements, such as those handling large data transfers or running resource-intensive applications.

SFP Ports

The HPE Aruba Instant On 1930 Managed Switch is equipped with 2 SFP (Small Form-factor Pluggable) ports. These specialized ports offer users additional connectivity options and flexibility when it comes to network deployment.

Extended Connectivity Range

SFP ports enable long-range connectivity by allowing users to connect fiber optic cables to the HPE Aruba Instant On 1930 Managed Switch. This feature is particularly valuable for businesses that require network connections over long distances, such as those spanning multiple floors or buildings. The 2 SFP ports ensure that you have the necessary connectivity options to extend your network reach without sacrificing performance or reliability.

Flexible Network Design

The SFP ports on the HPE Aruba Instant On 1930 Managed Switch provide flexibility in network design. Users can choose to connect devices using either copper Ethernet cables or fiber optic cables, depending on their specific requirements. This flexibility allows for easy integration with existing infrastructure and enables seamless communication between devices, regardless of their physical location.

High-Speed Data Transfer

The SFP ports support high-speed data transfer rates, ensuring fast and efficient communication between devices. This is particularly beneficial for businesses that require quick data transfers, such as those involved in media production, video surveillance, or data centers. The 2 SFP ports ensure that you have the necessary bandwidth to handle large data volumes and maintain optimal network performance.

Power Consumption

The HPE Aruba Instant On 1930 Managed Switch boasts a power consumption of 11 Watts. This low power consumption ensures energy efficiency and cost savings for businesses while still maintaining reliable network performance.
