HP Aruba AP-535 (APIN0535) Dual-Band Wi-Fi 6 Indoor Access Point – 4x4

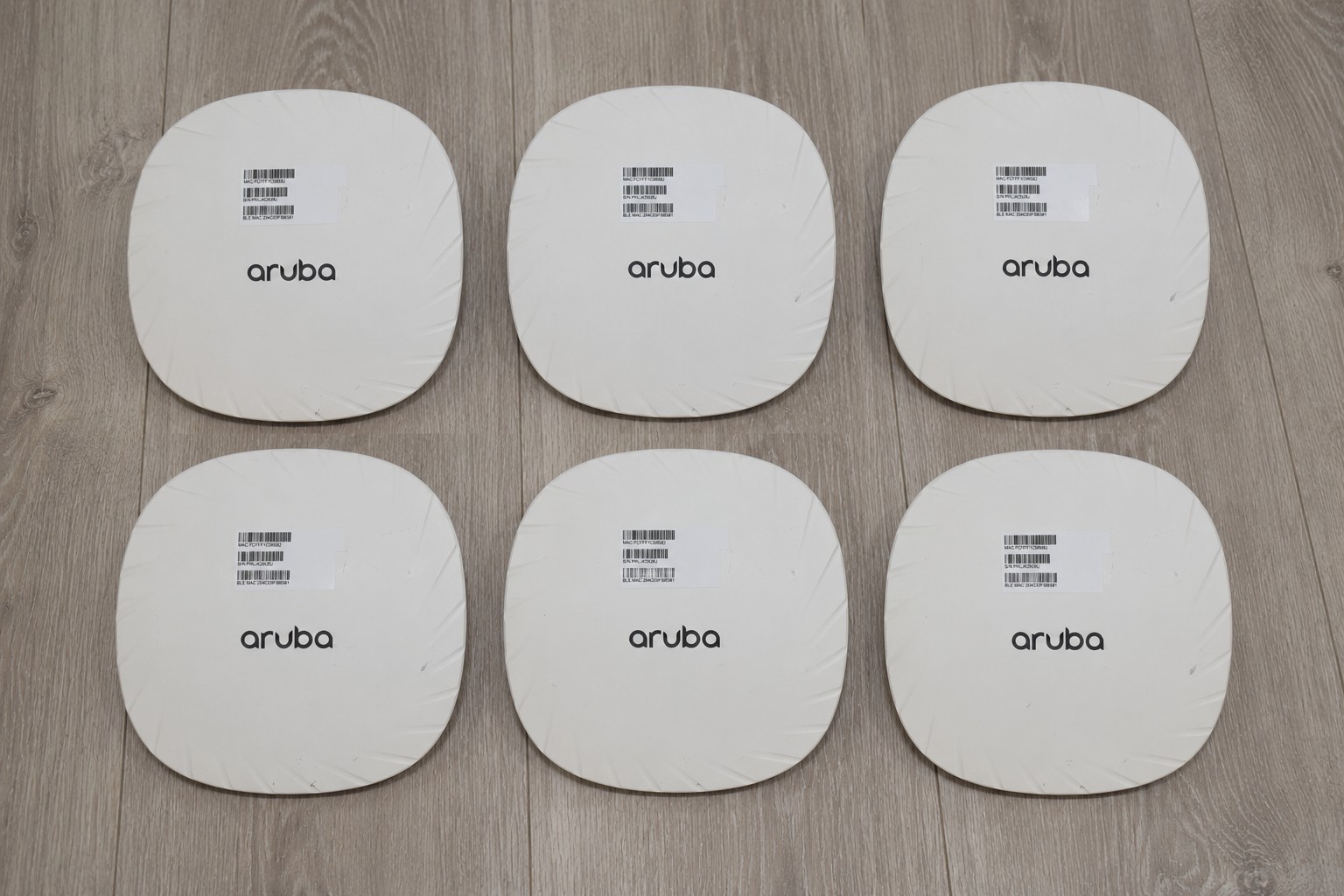

Aruba Networks AP-535 Wireless Access Point APIN0535 - JZ337A
🔥 Aruba AP-515 vs. Aruba AP-535 — Direct Feature Comparison 🔥
🚀 Feature🟦 Aruba AP-515🟥 Aruba AP-535📡 Wi-Fi GenerationWi-Fi 6 (802.11ax)Wi-Fi 6 (802.11ax)📶 2.4 GHz Radio2×2:2 MIMO🔥 4×4:4 MIMO⚡ 5 GHz Radio4×4:4 MIMO4×4:4 MIMO📡 Spatial Streams2.4 GHz: 2 streams
5 GHz: 4 streams2.4 GHz: 4 streams
5 GHz: 4 streams🚀 Max 5 GHz Data RateUp to 2.4 GbpsUp to 2.4 Gbps📶 Max 2.4 GHz Data RateUp to 575 Mbps🔥 Up to 1.15 Gbps📊 Peak Aggregate Rate~2.97 Gbps🔥 3.55 Gbps👥 High-Density Performance💪 Excellent🔥 Better🏢 Best ForOffices, hotels, enterpriseHigh-density enterprise, large hotels🔌 Ethernet Port E02.5Gbps SmartRate5Gbps SmartRate🔌 Ethernet Port E11Gbps Ethernet5Gbps SmartRate🔗 Link Aggregation (LACP)✅ Yes✅ Yes⚡ PoE Support802.3af / at / bt802.3at / bt🔋 Maximum Power Consumption20.8W~26.4W📱 Bluetooth✅ Bluetooth 5✅ Bluetooth🌐 Zigbee / IoT✅ Yes✅ Yes🔒 WPA3 Security✅ Yes✅ Yes📡 AntennasInternalInternal📱 Legacy Wi-Fia/b/g/n/aca/b/g/n/ac📏 Dimensions200 × 200 × 46 mm
7.9 × 7.9 × 1.8 in240 × 240 × 57 mm
9.4 × 9.4 × 2.2 in⚖️ Weight810 g / 28.5 oz
≈ 1.79 lb1,270 g / 44.8 oz
≈ 2.80 lb📦 Physical Size🟢 Smaller & lighter🔴 Larger & heavier
