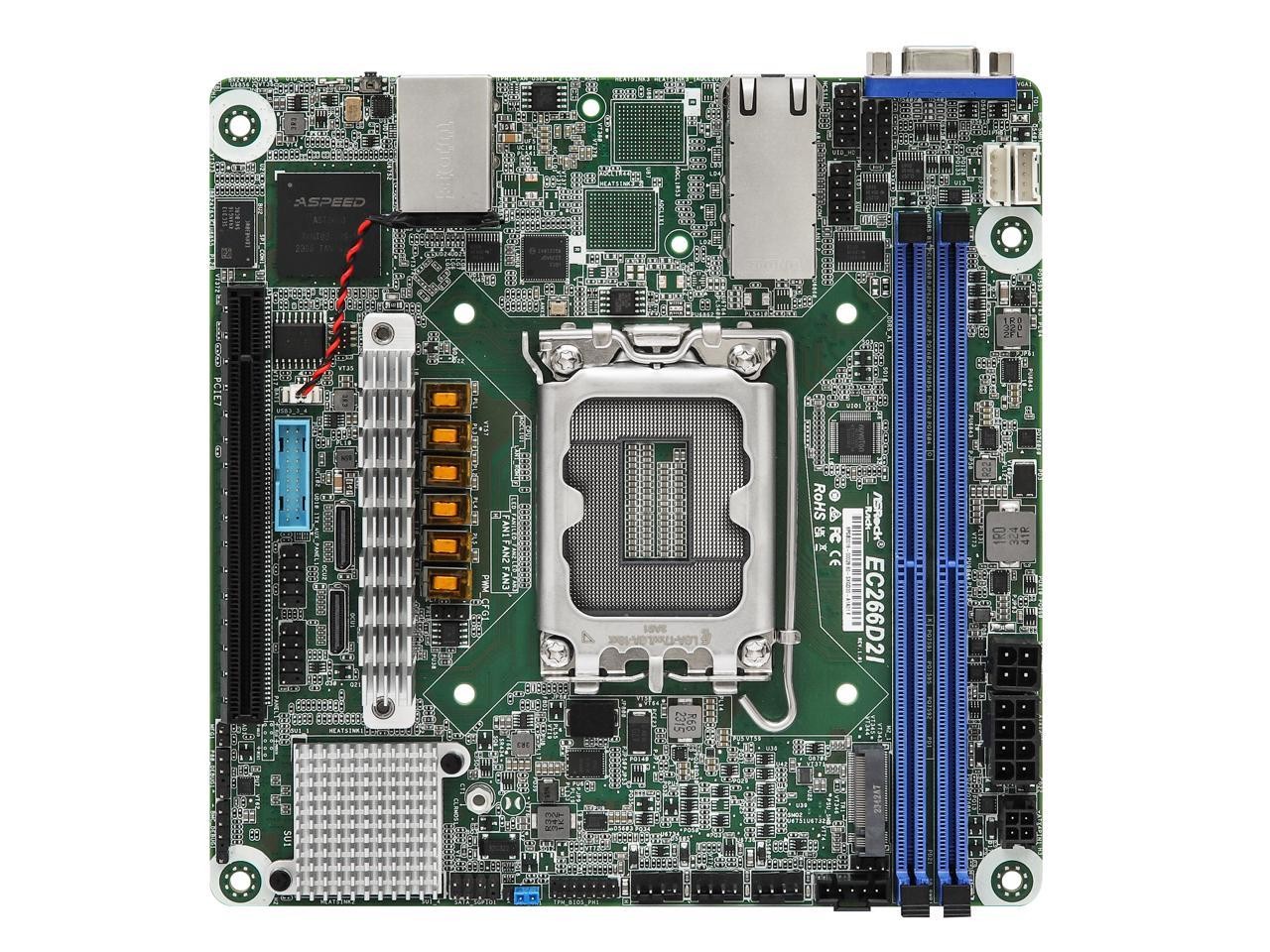

Asrock EC266D2I Motherboard Asrock EC266D2I Motherboard

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

EC266D2I

mini-ITX (6.7" x 6.7")

Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors

2 DIMM slots (1DPC), supports DDR5 ECC UDIMM

1 PCIe5.0 x16

1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s)

1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)

1 M.2 (PCIe4.0 x4)

Up to 8 SATA 6Gb/s

2 RJ45 (1GbE) by Intel i210

Remote Management (IPMI)Physical Status
Form Factor
mini-ITXProcessor System
CPUSupports
Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
Socket
Single Socket V1 (LGA 1700)
Chipset
Intel C266System Memory
Supported DIMM Quantity
2 DIMM slots (1DPC)
Supported Type
Supports DDR5 288-pin ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4800MT/s
Voltage
1.1V PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe5.0 x16 (CPU) TPM
TPM support
1 (13-pin, SPI) Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), support 2280 form factor (CPU)
OCuLink
1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s) (PCH)
1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) (PCH) SATA/SAS Storage
PCH Built-in Storage
Intel C266 (8 SATA 6Gb/s RAID 0/1/5/10):
2 OCuLink Ethernet
Additional GbE Controller
2 RJ45 (1GbE) by Intel i210 Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA) Rear I/O
UID Button/LED
1 UID button, 1 UID LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
2 RJ45(1GbE), 1 dedicated IPMI Internal Connector/Headers
Power Connector
1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors
1 ATX (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header
1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1(9-pin)
Fan Header
3 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Others
1 NCSI header (9-pin)
USB 3.2 (Gen1) Header
1 header (19-pin, 2 USB3.2 Gen1) LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
Fan Fail LED
3
BMC heartbeat LED
1 System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash Hardware Monitor
Temperature
CPU, MB, Card side, M.2, TR1 Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, BAT, 3V, 5V, 12V, 1.05V_PROC, 1.8V_PROC Environment
Temperature
Operation temperature: 10oC - 35oC / Non operation temperature: -40oC - 70oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
12 x 12 x 3

Weight
4 lbs
