Aten CE770 USB VGA/Audio Cat 5 KVM Extender with Deskew - Brand New in Box For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

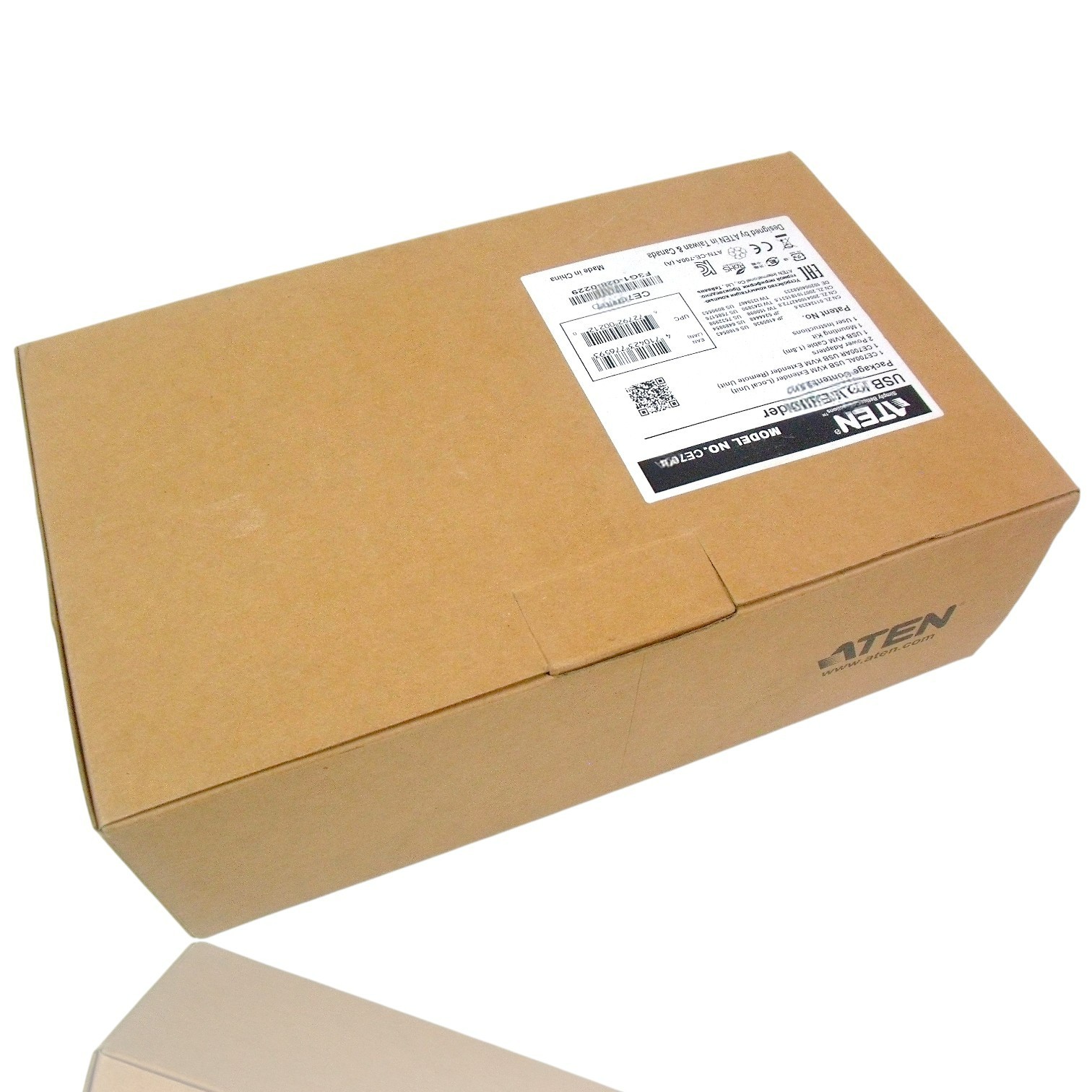

Aten CE770 USB VGA/Audio Cat 5 KVM Extender with Deskew - Brand New in Box

Price: US $578.95

Aten CE770 USB VGA/Audio Cat 5 KVM Extender with DeskewBrand New in BoxUS Seller - Fast Shipping

The Aten CE770 USB KVM Extender has a Deskew function, automatic signal compensation, and RS-232 serial functionality allow access to a computer system from a remote USB console up to 1000" away. The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows you to deploy system equipment over large distances. Its line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings. Local and remote units connect at distances up to 1000" using cat 5e cable Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles Deskew function - automatically synchronizes the time delay of RGB signals to compensate for distance Built-in ASIC for greater compatibility Auto signal compensation (ASC) RS-232 serial ports - allows you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners Sun/Mac keyboard support and emulation Note: Windows keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards only work with their own computers Audio Enabled - supports stereo speakers and stereo microphone USB overcurrent detection and prevention Pushbutton operating mode selection (local unit only) - select between local and auto operating modes, with the press of a single button Built-in 8KV/15KV ESD protection (contact voltage 8KV; air voltage 15KV) and 2KV surge protection Up to 1920 x 1200 at 60 Hz (500"), 1600 x 1200 at 60 Hz (1000") No loss in audio quality at 1000" Supports widescreen formats Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator. Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC, DDC2, DDC2B Hot pluggable Rack mountable No software required - connecting cables to the devices is all it takes

Specifications:

Supported Operating SystemsWindows: 2000, XP, Vista Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up UNIX: FreeBSD 4.2 and up Novell: Netware 6.0 and upConnectionsLocal: 1 x SPHD-17 Female for Keyboard, Mouse, Video Mini stereo jack female Speaker (green) Mini stereo jack female Mic (pink) RJ-45 female DB-9 for RS232 Remote: HDB- 15 female USB Type A Female Keyboard USB Type A female Mouse Mini stereo jack female Speaker (green) Mini stereo jack female Mic (pink) RJ-45 female DB-9 for RS232Cable Distance1000" maxLED IndicatorsLocal unit: 2 x green (local, remote Remote unit: 1 x blue, 1 x orange / green (link), 1 x red (remote)SwitchesMode selection: 1 x pushbutton local Picture compensation: 1 x pushbutton remote Sensitivity: 1 x pushbutton remoteEmulationKeyboard, mouse: USBVideo Resolution1920 x 1200 at 60Hz (300"), 1280 x 1024 at 60Hz (900")Operating Temperature & Humidity32 - 122°F (0 - 50°C), RH 0 - 80% non-condensingStorage Temperature-4 - 140°F (-20 - 60°C)Power ConsumptionLocal: 3.5 W / 12 BTU/h Remote: 5.1 W / 17.4 BTU/hHousing MaterialMetalDimensions (W x L x H)Local: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm) Remote: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm)WeightLocal: 17.3 oz (0.49 kg) Remote: 17.3 oz (0.49 kg)

Package Includes:
