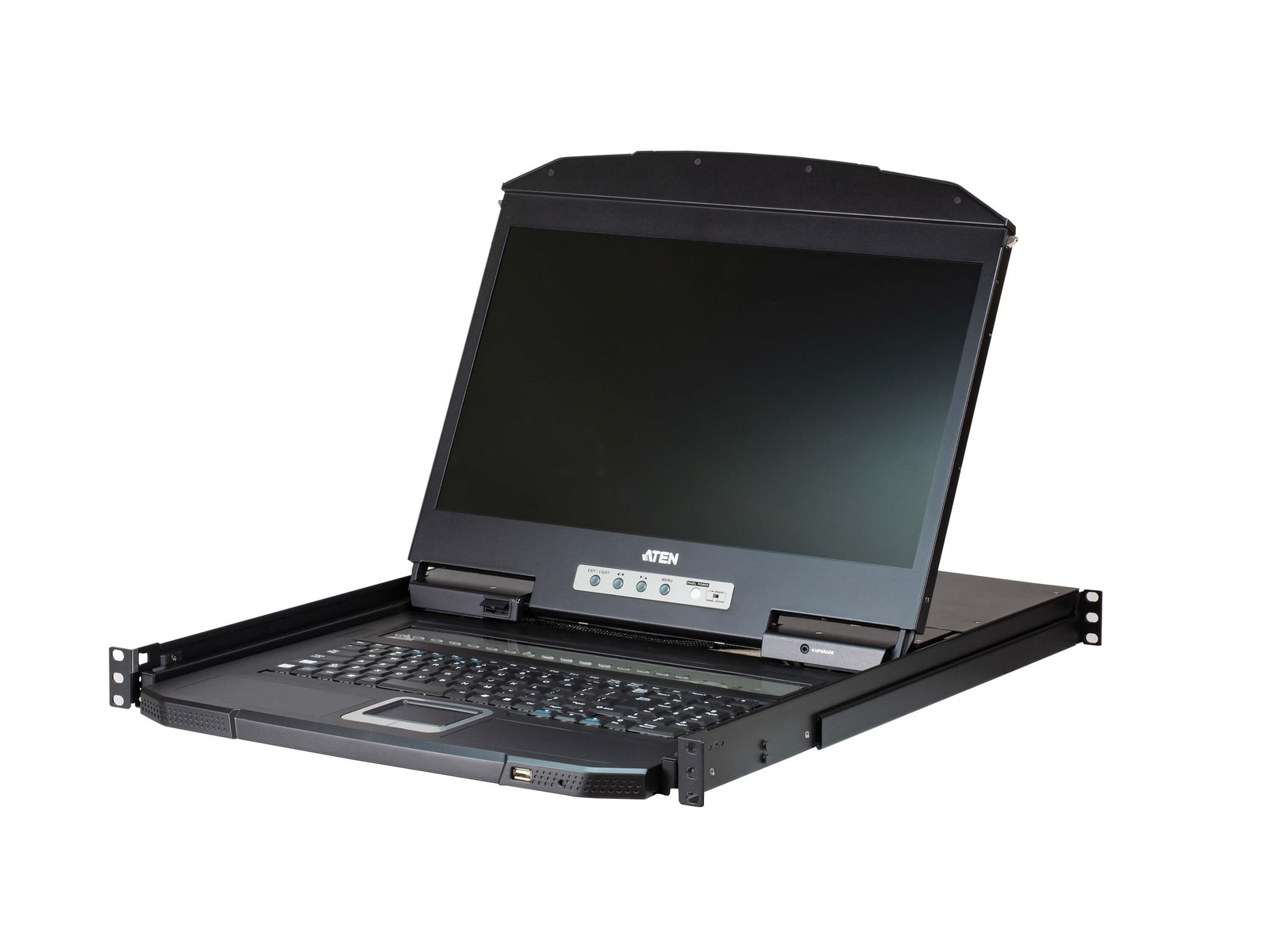

for All Products Aten CL3108NX 8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch Manufacturer:Aten SKU:CL3108NX Condition:New Warranty:3 Years
The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.
The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.
To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit
Features:
Space Utility Optimization
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5"" LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Console lock - enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
- Superior video quality - up to 1366 x 768 at 60Hz; DDC2B
- Cascade up to 2 levels - CL3108 controls up to 128 computers from a single console (With compatible KVM Switches:CS1308 CS1316)
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
- Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
- Two level password security - only authorized users can view and control computers
- Auto Scan mode - enables continuous monitoring of user-selected computers
- Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Installation Flexibility
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options*
- No software required
- Firmware upgradable
- Supports hot-plugging
*The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.
Specifications:
Function CL3108NX Computer Connections Direct 8 Maximum 128 (via Cascade) Port Selection OSD, Hotkey, Pushbutton Connectors KVM Ports 8 x SPHD Female (Yellow) Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black) Power 1 x IEC 60320/C14 External Mouse Port 1 x USB Type A Female (Front) Switches Port Selection 8 x Pushbutton Reset 1 x Semi-recessed Pushbutton Firmware Upgrade 1 x Slide Switch Power 1 x Rocker Switch LCD Control 4 x Pushbutton LCD Power 1 x LED Pushbutton LEDs Online 8 (Orange) Selected 8 (Green) Power 1 x KVM Console (Dark Green)
1 x LCD (Orange) Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) LED Illumination Light 1 x LED Illumination Light Panel Spec LCD Module 18.5" TFT-LCD Resolution 1366 x 768 at 60 Hz Response time 5 ms Viewing Angle 170° (H), 160° (V) Pixel Pitch 0.3 mm x 0.3 mm Support Color 16.77M colors Contrast Ratio 1000 : 1 Luminance 450 cd/m² Video Input Video Resolution up to 1920 × 1200 at 60 Hz;
1366 × 768 at 60 Hz, DDC2B Scan Interval 1-255 seconds Emulation Keyboard / Mouse PS/2, USB Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal + Plastic Rail Type Single Rail Weight 10.50 kg ( 23.13 lb ) Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
(18.92 x 24.87 x 1.69 in.) Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.) Note Body Dimensions exclude I/O ports, handles, and mounting brackets. Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CL3108 LCD KVM Switch with Standard Rack Mounting Kit
- 2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
