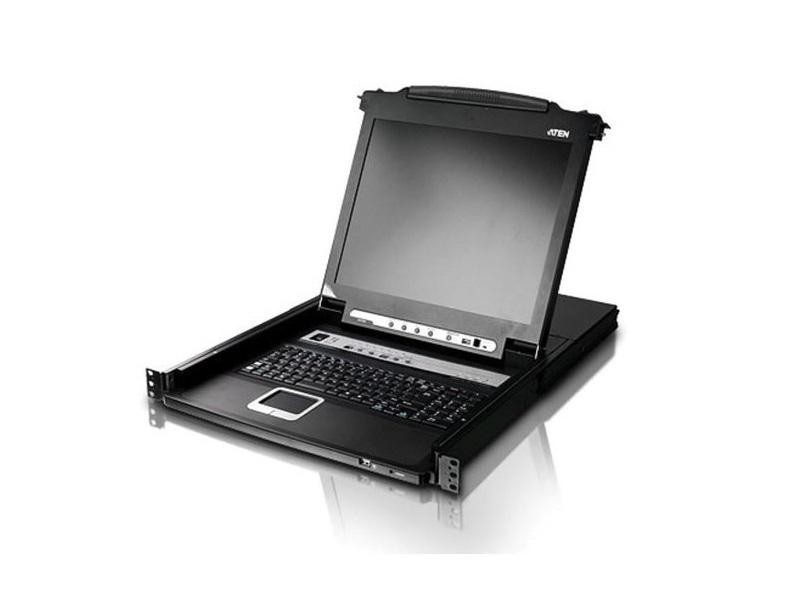

for All Products Aten CL5708M 8-Port 17in Single Rail LCD KVM Console Manufacturer:Aten SKU:CL5708M Condition:New Warranty:3 Years
The Aten CL5708M 8-Port 17" Single Rail LCD KVM Console is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers, and as many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console. The CL5708M integrates a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing for conservation of space. Integrated KVM console with 17" LCD monitor in a slideaway housing Fingerprint identification reader compatible Space saving design - up to two consoles (one bus) control up to 8 computers Daisy-chain up to 31 additional units - control up to 256 computers from a single console with compatible KVM switches Dual interface - supports computers and console with PS/2 or USB keyboards and mice LCD module USB port allows each computer to access USB peripherals Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections. LCD module rotates up to 115° for multiple viewing angles Multiplatform support - Windows, Linux, Mac, and Sun Supports multimedia USB keyboards for Windows, Mac, and Sun Auto PS/2 and USB interface detection Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere Supports external USB mouse Supports resolutions up to 1280 x 1024 at 75 Hz No software required - computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus Auto-senses station"s position on daisy-chained installations - no need for manual dip switch setting, front panel LED indicates station"s position Port names automatically reconfigured when station sequence is changed Two level password security - only authorized users can view and control computers Supports one administrator and four user accounts with separate profiles Auto Scan mode enables continuous monitoring of user-selected computers Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation Hot pluggable - add or remove computers without having to power down the switch Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Specifications:
OS Compatibility Windows: 2000 and up Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up UNIX: AIX 4.3 and up; FreeBSD 4.2 and up; Sun Solaris 8 and up Novell: Netware 5.0 and up Mac: OS 9 and up DOS: 6.22 Max Computer Connections Direct: 8 Daisy Chain (Cascade) 256 (via daisy-chain) Console Connectors Keyboard, mouse, and monitor: 1 x SPHD-18 male Flash ROM upgrade: 1 x RJ-11 female Computer/KVM: 8 x SPHD-15 female USB: 1 x USB Type-A female Daisy chain: 1 x DB-25 male Switches Power: 1 x rocker LCD power: 1 x pushbutton LCD Adjustment: 4 x pushbuttons Port selection: 2 x pushbuttons (port), 2 x pushbuttons (station) Firmware upgrade: 1 x slide Reset: 1 x semi-recessed pushbutton LEDs Port ID: 2 x 7-segment LED (yellow) Power on: 1 (dark green) LCD power: 1 (orange) Station ID: 2 x 7-segment LED (yellow) On Line: 8 (orange) Emulation Keyboard, mouse: PS/2, USB Video Resolution 1280 x 1024 at 75 Hz; DDC2B Scan Interval 1 - 255 sec Port Selection OSD, Hotkey, Pushbutton Enclosure Metal and plastic Power Requirements 110 - 230 VAC, 50 - 60 Hz, 1A Power Consumption 27.5W, 95 BTU/h / 23W, 78 BTU/h Environment Operation temperature: 32 - 122°F (0 - 50°C) Storage temperature: -4 - 140°F (-20 - 60°C) Humidity 0 - 80% RH, Noncondensing Dimensions (WxDxH) 18.9 x 24.9 x 1.7" (48.0 x 63.2 x 4.3 cm) Weight 30.3 lbs (13.7 kg)
Package Includes:
Aten CL5708M 8-Port 17" Single Rail LCD KVM Console 2 x 2L-5201P SPHD15 to VGA and PS/2 KVM Cable (4") 5-in-1 USB / PS/2 Console Cable Firmware Upgrade Cable 6" Power Cord 4" Grounding Wire
