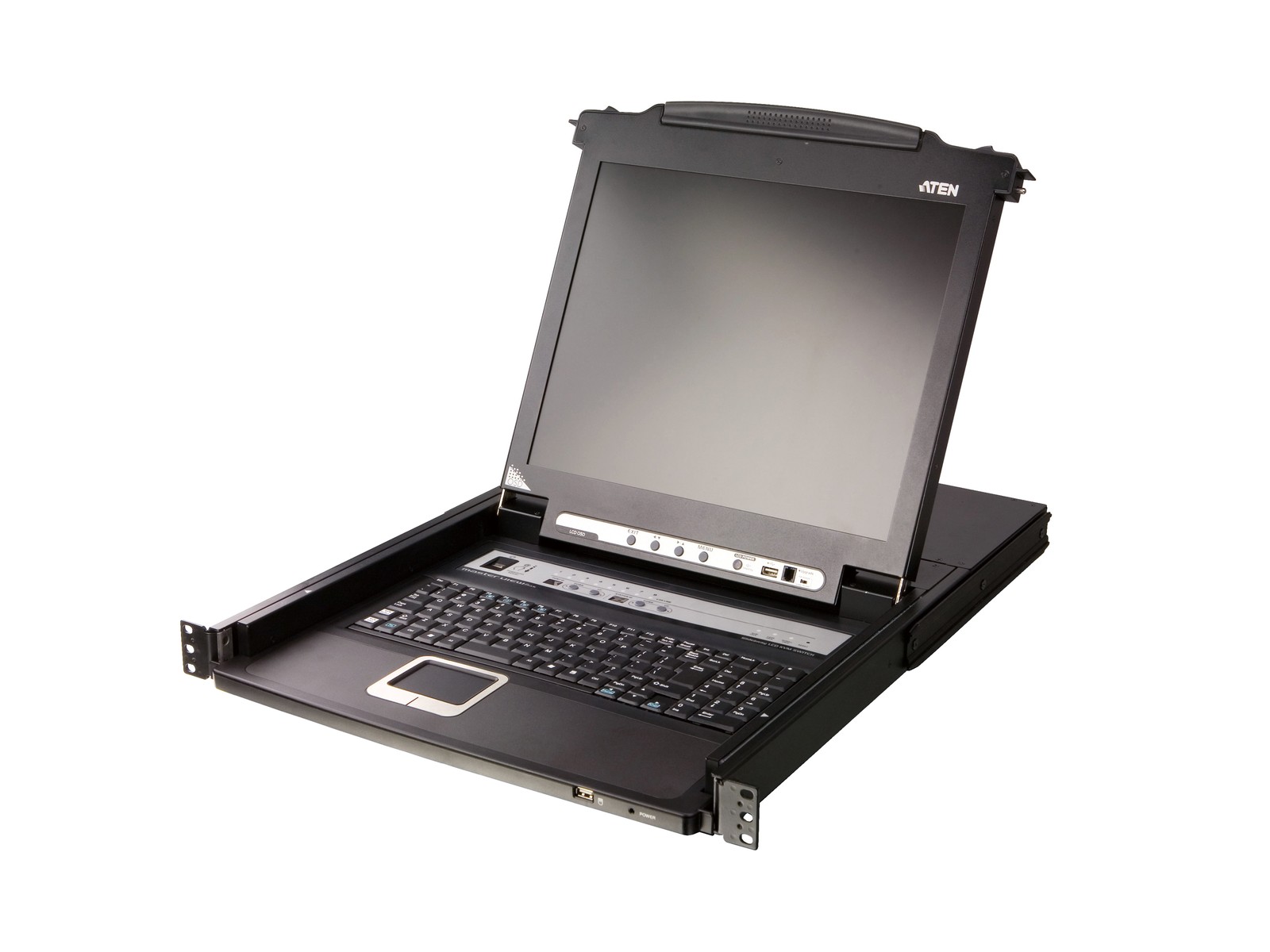

for All Products Aten CL5708MW 8-Port PS/2-USB VGA 17.3in FHD Slideaway Single-Rail LCD KVM Switch Manufacturer:Aten SKU:CL5708MW Condition:New Warranty:2 Years
The CL5708MW is an integrated single-rail Slideaway LCD KVM switch that provides centralized keyboard, video and mouse control across multiple servers. It pairs an integrated 17.3in Full HD LED-backlit display with a full keyboard and touchpad in a 1U rack-mountable sliding housing. The unit supports both PS/2 and USB interfaces to handle mixed-platform environments.
Key features include 8 direct SPHD KVM ports, daisy-chain capability to control up to 256 computers, and a built-in LED illumination light to aid low-light operation. The CL5708MW supports on-screen display (OSD), front-panel pushbuttons and hotkey switching for fast port selection. It also offers two-level password security with one administrator and four user accounts for controlled access.
Performance specifications include support for 1920 x 1080 at 60 Hz video on the 17.3in FHD panel, PS/2 and USB keyboard and mouse emulation, and compatibility with Windows, Linux, Mac and Sun. The LCD tilts and rotates for ergonomic viewing and the keyboard and mouse emulation ensure simultaneous booting of multiple computers even when focus is elsewhere. Firmware upgrade and daisy-chain firmware propagation are supported via the included cables.
Connectivity options include 8 x SPHD KVM ports, one SPHD external console port, a front USB Type A peripheral port, DB-25 daisy-chain connectors and RJ-11 firmware upgrade port. The CL5708MW supports standard IEC C14 power input and hot-pluggable connections for minimal downtime. USB peripheral pass-through is available on compatible models when connected with USB cable sets.
This KVM switch is ideal for server rooms, data centers and broadcast racks where rack space and secure centralized control are critical. Use the CL5708MW to consolidate control of multiple servers, streamline maintenance tasks, and manage multi-platform environments from a single console. The daisy-chain topology reduces cabling and allows scaling up to large installations without additional consoles.
Installation is straightforward with the supplied standard rack mount kit and slideaway housing that saves 1U of rack space while protecting the console when not in use. The unit is constructed of metal and plastic for rack durability and includes multilingual keyboard language support. Overall the CL5708MW balances compact form factor, scalable control and professional-grade video performance for systems integration CL5708MW, CL5708NComputer Connections - Direct8, 8, 8Computer Connections - Maximum256 (via Daisy-chain), 256 (via Daisy-chain), 256 (via Daisy-chain)Port SelectionOSD, Hotkey, PushbuttonKVM Ports8 x SPHD Female (Yellow)Daisy Chain Ports1 x DB-25 MaleFirmware Upgrade1 x RJ-11 FemalePower Connector1 x IEC 60320/C14External Console Ports1 x SPHD Male (Yellow)External Mouse Port1 x USB Type A Female (Front)USB Port1 x USB Type A Female, N/A, 1 x USB Type A FemaleSwitches - Port Selection2 x PushbuttonSwitches - Station Selection2 x PushbuttonSwitches - Reset1 x Semi-recessed PushbuttonSwitches - Firmware Upgrade1 x Slide SwitchSwitches - Power1 x Rocker SwitchSwitches - LCD Control4 x PushbuttonSwitches - LCD Power1 x LED PushbuttonLEDs - Online8 (Orange)LEDs - Port ID2 x 7-segment LED Display (Orange)LEDs - Station ID2 x 7-segment LED Display (Orange)LEDs - Power1 (Dark Green)LEDs - Lock1 x Num Lock (Green), 1 x Caps Lock (Green), 1 x Scroll Lock (Green)LED Illumination Light1 x LED Illumination LightPanel Spec - LCD Module17" TFT-LCD, 17.3" TFT-LCD, 19" TFT-LCDPanel Spec - Resolution1280 x 1024 at 75 Hz, 1920 x 1080 at 60 Hz, 1280 x 1024 at 75 HzPanel Spec - Response time5 ms, 16 ms, 5 msPanel Spec - Viewing Angle170° H / 160° V, 170° H / 170° V, 170° H / 160° VPanel Spec - Pixel Pitch0.264 mm x 0.264 mm, 0.1989 mm x 0.1989 mm, 0.294 mm x 0.294 mmPanel Spec - Support Color16.77M colorsPanel Spec - Contrast Ratio1000 : 1, 800 : 1, 1000 : 1Panel Spec - Luminance250 cd/m²Video - Input Video Resolutionup to 1920 × 1200 at 60 Hz; 1280 × 1024 at 75 Hz, DDC2B; up to 1920 × 1200 at 60 Hz; 1920 × 1080 at 60 Hz, DDC2B; up to 1920 × 1200 at 60 Hz; 1280 × 1024 at 75 Hz, DDC2BScan Interval1-255 secondsEmulation - Keyboard / MousePS/2, USBMaximum Input Power Rating100-240V AC, 50/60Hz, 1APower ConsumptionAC110V:23.9W:125BTU/h, AC220V:25.1W:130BTU/h; AC110V:14.5W:79BTU/h, AC220V:15.4W:83BTU/h; AC110V:26.1W:135BTU/h, AC220V:27.2W:140BTU/hOperating Temperature0-40°C, 0-40°C, 0-50°CStorage Temperature-20-60°CHumidity0-85% RH, NoncondensingHousingMetal + PlasticRail TypeSingle RailWeight13.47 kg (29.67 lb), 13.39 kg (29.49 lb), 13.39 kg (29.49 lb)Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.), 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.), 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format OUR PERKS Great Prices and
