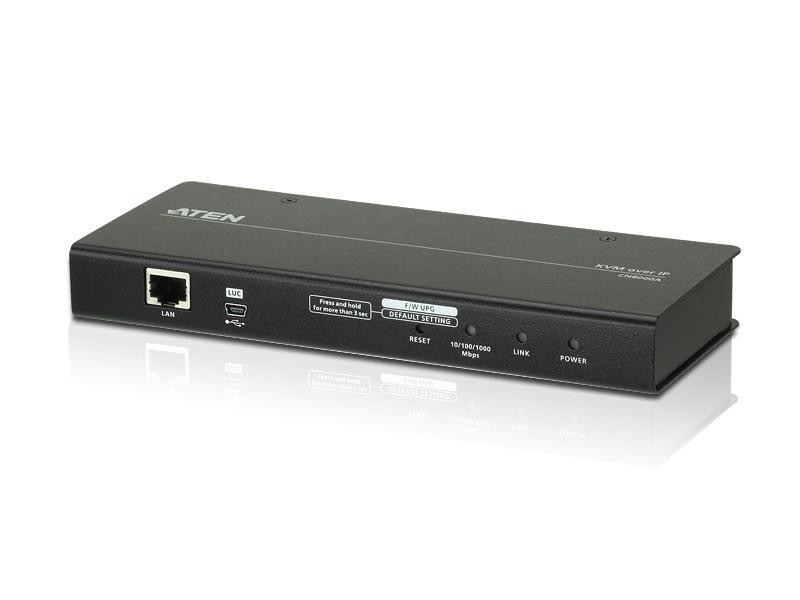

for All Products Aten CN8000A 1-Local/Remote Share Access Single Port VGA KVM over IP Switch Manufacturer:Aten SKU:CN8000A Condition:New Warranty:3 Years
The new generation ATEN CN8000A features superior video quality with HD resolutions up to 1920 x 1200, LUC (Laptop USB Console) for easier KVM access, user-friendly local console OSD and virtual media function without additional cable.
The CN8000A Single Port KVM over IP provides access control through “over-IP” for conventional KVM switches that do not have built in over-IP functionality. It allows system operators to monitor and access computers from remote locations using standard Web browsers or Windows and Java based application programs. The CN8000A connects to the Intranet either LAN or WAN simply by using an industry standard Cat 5e/6 cable, and is connected to a local KVM switch or server via a custom KVM cable.
The ATEN CN8000A uses the standard TCP/IP protocols for communications, it allows the connected server or KVM switch to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country or branch offices in other parts of the world.
The CN8000A expands on previous models by providing a dedicated RS-232 port for modem access or serial console management, a PON port to connect a ATEN PDU device and USB 2.0 virtual media capability.
A Windows Client Viewer and a Java Applet Viewer are available for browser access, while Windows Client AP and Java Client AP programs are provided for non-browser GUI access. They allow IP connection and login from anywhere over the internet. Inclusion of a Java-based client ensures that the CN8000A is an independent platform, and is able to work with practically all operating systems.
To meet advanced security requirements, the CN8000A’s Virtual Media function allows a Smart Card / CAC reader on a user’s local system to be mapped to a remote server. The CN8000A provides a fast, reliable and a cost effective way to remotely access and manage widely distributed multiple computer installations.
Features:
Hardware
- Provides over-IP capability to KVM switches that do not have built in over-IP functionality *
- SupportsPS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
- Local console provides PS/2, USBkeyboardand mouse support
- Supports multiplatform server environments: Windows, Mac, Sun,Linuxand VT100 based serial devices
- Virtual Media Support
- High video resolution – up to 1920 x 1200 at 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 at 60 Hz with 24 bit color depth for remote sessions
- Enhanced fps (frames per second) throughput for crisp responsive video display
Note:
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
- Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
- Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
** Requires CV131A converter purchase
Management
- Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
- Easy configuration through local console OSD
- Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system events sent by email and SNMP trap; and Syslog support
- Remote Firmware upgradable
- Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party
software (such as PuTTY) for Telnet and SSH sessions - PPP mode (modem) dial-in/dial back/dial outsupport for out-of-band, and low bandwidth operation
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
- Integration with ATEN CC2000 Centralized Management Software
- Power Over the NET integration for remote power control
- DDNS (Dynamic Domain Name System)
- Export/import user account and configuration settings
- Enable/disable browser operation
- IPv6 capable
Easy-to-Use Interface
- Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowsersupport (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel
Advanced Security
- Smart Card /CAC Reader Support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- TLS 1.2 encryption to protect password when userslog in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Supports password protection
- Private CA
Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Convenient to use without virtual media cable
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screenvideo display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse Dynasync
- Exit Macros support
- BIOS-level access
Specifications:
Connectors Console Ports 1 x SPHD-18 Male (Yellow) KVM (Computer) Ports 1 x SPHD-18 Female (Yellow) Laptop USB Console (LUC) Port 1 x USB Mini Type B Female (Black) PON 1 x DB-9 Male (Black) RS-232 1 x DB-9 Male (Black) LAN Ports 1 x RJ-45 Female Power 1 x DC Jack Switches Reset 1 x Semi-recessed Pushbutton LEDs Power 1 (Orange) Link 1 (Green) 10/100/1000 Mbps 1 (10: Orange / 100: Orange+Green / 1000: Green) Emulation Keyboard / Mouse USB; PS/2 Video Up to 1920 x 1200 at 60 Hz; DDC2B Power Consumption DC5.3V, 7.26W Environmental Operating Temperature 0 - 50°C (CN8000A)
0 - 40°C (Power Adapter) Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal Weight 0.49 kg ( 1.08 lb ) Dimensions (L x W x H) 20.00 x 8.14 x 2.50 cm
(7.87 x 3.2 x 0.98 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CN8000A Single Port KVM over IP
- 1x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
- 1x USB Cable (USB-A to USB Mini-B; 1.8m/6ft)
- 1x Power Adapter
- 1x Rack Mounting Kit
- 1x User Instructions
