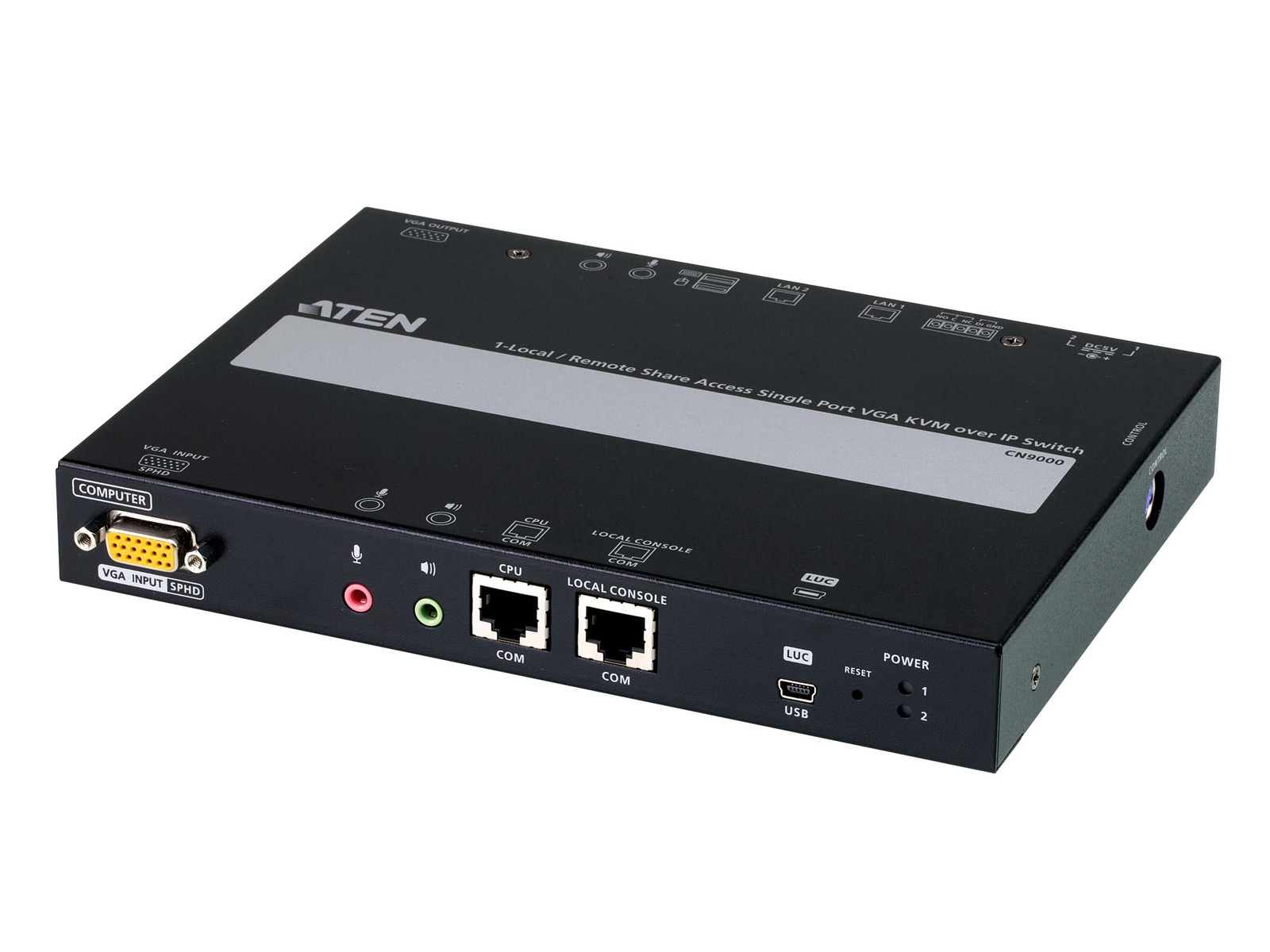

for All Products Aten CN9000 1-Local/Remote Share Access Single Port VGA KVM over IP Switch Manufacturer:Aten SKU:CN9000 Condition:New Warranty:3 Years
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio, and virtual media of a PC or workstation and features VGA high-definition video with resolutions of up to 1920 x 1200 at 60 Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible with not only modern-day workstations but also older legacy systems and servers.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard, and mouse.
To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
Features:
Hardware
- High video resolution - up to 1920 x 1200 at 60 Hz
- Laptop USB Console (LUC) - a dedicated mini USB port for direct, easy console operation via a laptop
- Provides over IP capability to KVM switches without over IP functionality
- Provides an FPGA graphics processor for better image quality
- Dual power supply to ensure seamless connectivity
- Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
- Supports 5-pin Relay/DI Terminal for environment monitoring and remotely reboot control
- Supports USB and legacy PS/2 keyboard and mouse
Management
- Complies to the RS-232 standards for serial control
- Up to 64 user accounts - up to 32 users can simultaneously share control
- Console access right management
- End session feature - administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Event Logging - the CN9000 can record all events that take place on it and write them to a searchable database
- Supports instant notification of critical system events via email, SNMP trap and Syslog
- Firmware upgradable viaremote access
- Access the CN9000 via a built-in serial viewer, or third-party software (such as PuTTY) for Telnet and SSH sessions
- Out of Band support - access the CN9000 through its serial port using a dial-up connection
- Port Share Mode allows multiple users to gain access to a server simultaneously
- DDNS - allows mapping of a dynamic IP address assigned by a DHCP server to a host name
- Supports export/import of user account and configuration settings
- Supports permission-controlled browser operation
- Supports IPv6
- Integration with ATENCC2000Management Software
- Integration with ATENCCVSRVideo Session Recording Software
Easy-to-Use Interface
- Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac, Linux, Sun)
- Multibrowser support (IE, Firefox, Safari, Opera, Chrome)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel with configurable function for quick launch
Advanced Security
- Smart Card/CAC Reader support
- External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers RC4 or Random for independent keyboard/mouse, video, andvirtual mediadata encryption
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard/mouse, video, andvirtual mediadata encryption
- Supports IP/MAC Filter
- Supports password protection
- Private CA
Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO images
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
- Full-screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multilanguage support
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- Supports Exit Macros
- BIOS-level access
Specifications:
Connectors Console Ports 2 x USB Type A Female (White)
1 x VGA Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) KVM Ports 1 x SPHD Female (Yellow)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) LAN Ports 2 x RJ-45 Female Virtual Media 1 x USB Mini-B Female Power 2 x DC Jack Serial 2 x RJ-45 Female Control 1x PS/2 Female Switches Reset 1 x Semi-recessed pushbutton (Black) Emulation Keyboard / Mouse USB, PS/2 LEDs Power 2 (Green) Video Local console - 1920 x 1200 at 60 Hz
Remote console - 1920 x 1200 Power Consumption DC5V:7.46W:39BTU Environmental Operating Temperature 0 - 50°C (CN9000)
0 - 40°C (Power Adapter) Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal Weight 0.86 kg ( 1.89 lb ) Dimensions (L x W x H) 20.00 x 15.41 x 2.85 cm
(7.87 x 6.07 x 1.12 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CN9000 VGA KVM over IP Switch
- 1x KVM cable (VGA, PS/2, USB)
- 1x USB cable (USB Type-A to Mini-B)
- 1x power adapter
- 1x control terminal block
- 1x mounting kit
- 1x foot pad set
- 1x user instructions
