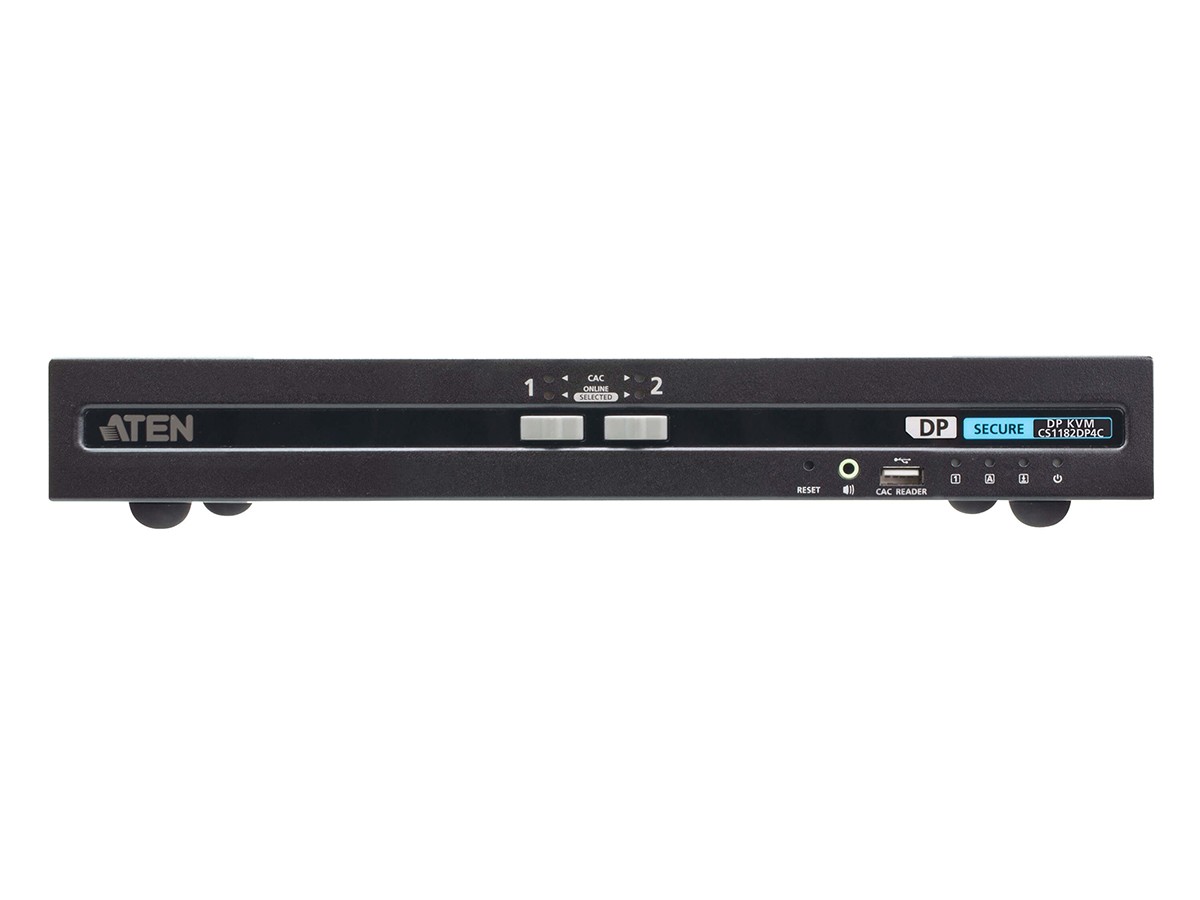

for All Products Aten CS1182DP4C 2-Port USB DisplayPort Secure KVM Switch / CAC / PSD PP v4.0 / TAA Manufacturer:Aten SKU:CS1182DP4C Condition:New Warranty:
The CS1182DP4C is a PSD PP v4.0 compliant secure KVM switch designed to share a single keyboard, mouse, monitor and CAC reader between two isolated computer systems. It enforces strict data isolation and unidirectional data flow to prevent any data leakage between connected sources. This product is built for environments that require accredited security controls and tamper protection.
Key features include PSD PP v4.0 certification, always-on chassis intrusion detection, non-reprogrammable firmware and configurable device filtration to accept or reject specific USB authentication and HID devices. The switch supports manual port selection via front panel pushbuttons or a Remote Port Selector to eliminate remote switching vectors. LED indicators provide clear status for KVM ports, CAC ports, video and key lock conditions.
Video performance supports resolutions up to 3840 x 2160 at 30 Hz and incorporates Video DynaSync to optimize console output and eliminate boot-up display mismatches. Audio is strictly filtered and limited to analog speaker output to prevent audio-based data exfiltration. Keyboard and mouse data are auto-purged after transmission and on port switching to protect user input data.
Connectivity includes DisplayPort console output, USB Type-A console ports, a front-panel USB CAC port and multiple USB Type-B and DisplayPort KVM ports for two computer connections. The unit provides a dedicated RJ-11 Remote Port Selector port and uses a standard 3-prong AC socket for power. Rugged metal housing and tamper-evident labels enhance physical security for sensitive deployments.
This secure KVM switch is suited to government, defense, intelligence, financial and healthcare installations where data separation and accredited peripheral sharing are mandatory. It prevents unauthorized peripheral connections and supports administrative audit of KVM events and filtering rules. The device is manufactured in Taiwan and meets strict security assurance requirements.
Installation is straightforward and managed locally - the unit requires only console cabling, power and optional Remote Port Selector hardware. No reprogrammable firmware or remote port switching reduces attack surface and simplifies accreditation. The CS1182DP4C combines high-level security controls with professional AV compatibility for immediate deployment in classified or regulated Connections2Port SelectionPushbutton, Remote Port SelectorConsole Ports1 x DisplayPort Female, 2 x USB Type-A Female, 1 x Mini Stereo Jack FemaleKVM Ports4 x USB Type-B Female, 2 x DisplayPort Female, 2 x Mini Stereo Jack FemalePower1 x 3-prong AC SocketUSB CAC Port1 x USB Type-A FemaleRemote Port Selector1 x RJ-11Switches - Port Selection2 x PushbuttonsSwitches - Reset1 x Semi-recessed PushbuttonSwitches - Power1 x RockerLEDs - Power1 (Green)LEDs - Online / Selected (KVM Port)2 (Orange)LEDs - Online / Selected (CAC Port)2 (Green)LEDs - Video1 (Green)LEDs - Key Lock3 (Green)Emulation - Keyboard / MouseUSBVideo3840 x 2160 at 30 HzMaximum Input Power Rating100-240V~, 50-60 Hz, 1APower ConsumptionAC110V: 6.46W, 56 BTU/h; AC220V: 6.68W, 57 BTU/hOperating Temperature0-50°CStorage Temperature-20-60°CHumidity0-80% RH, Non-condensingHousingMetalWeight1.76 kg, 3.88 lbDimensions (L x W x H)33.50 x 16.39 x 4.40 cmNIAP CompliancePSD PP v4.0Tamper DetectionAlways-on chassis intrusion detectionTamper EvidenceTamper-evident labelsFirmwareNon-reprogrammable firmwarePeripheral ConnectivityRestricted peripheral connectivityCAC Port FilteringAdministrative configuration supportedKeyboard/Mouse FilteringAdministrative configuration supportedAudio SupportAnalog speaker onlyVideo FeatureVideo DynaSync OUR PERKS Great Prices and
