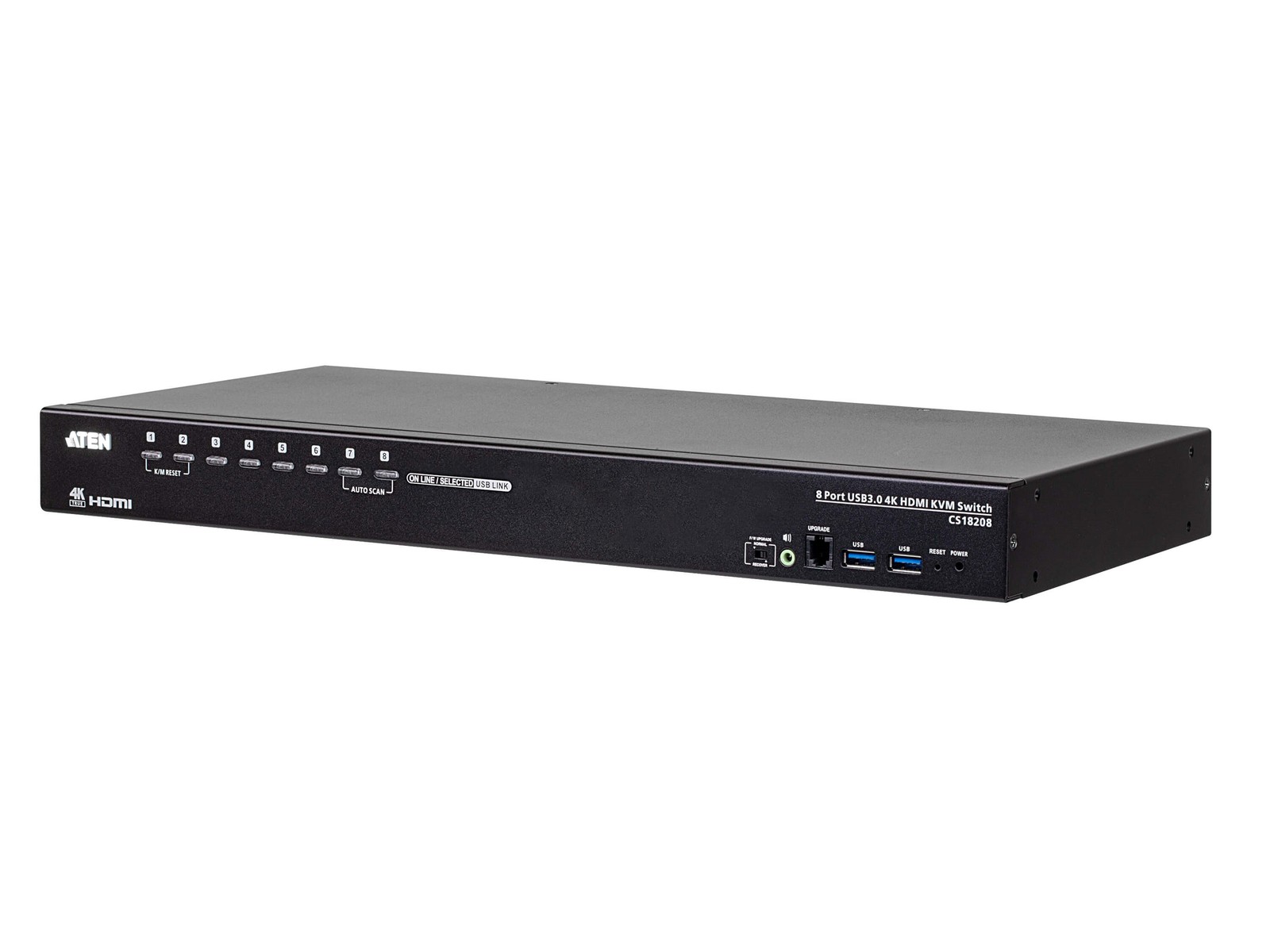

for All Products Aten CS18208 8-Port USB 3.0 4K HDMI KVM Switch Manufacturer:Aten SKU:CS18208 Condition:New Warranty:2 Years
The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x 2160 at 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS18208 can control up to 512 computers by cascading to three levels for a single console. Furthermore, the CS18208 supports multi-display function by stacking up to eight CS18208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technologies – Video DynaSync™ and EDID Expert™, the CS18208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.
Besides, the CS18208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS18208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS18208 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking, such as enterprise, government, production, telecom, finance, media, content provider, video surveillance, etc.
Features:
- One USB console controls up to 8 HDMI interface computers and two additional USB 3.1 Gen 1 peripheral devices
- Cascadable to three levels – controls up to 512 computers1
- Multi-Display feature – stacks up to eight CS18208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- EDID Expert™ – selects optimumEDIDmode for smooth power-up and highest quality display
- Superior video quality – up to 4K DCI (4096 x 2160 at 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
- Supports HD audio2
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
- Independent switching of KVM and USB peripheral focus3
- Two-level (administrator / user) password authorization for enhanced security protection
- Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
- Auto Scan Mode for monitoring all computers
- Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
- Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Mac / Sun keyboard support and emulation4
- Supports hot-plugging
- HDMI compliant;HDCP2.2 compliant
- Multiplatform support – Windows, Linux, Mac, and Sun
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse
Note:
- CS18208 cascades to CS18208 only.
- HD audio through HDMI channel cannot be switched independently.
- Independent switching is only supported under mouse emulation mode.
- PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.
Specifications:
Computer Connections Direct 8 Maximum 512 (via Cascade) Port Selection OSD, Hotkey, Pushbutton, RS-232 Commands Connectors Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) KVM Ports 8 x HDMI Female
8 x USB3.1 Gen1 Type B Female (Blue)
8 x 3.5mm Audio Jack Female (Green) Firmware Upgrade 1 x RJ11 Female (Black) Power 1 x DC Jack USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front) Switches Port Selection 8 x Pushbutton Reset 1 x Semi-recessed Pushbutton Firmware Upgrade Recovery 1 x Slide Switch LEDs On Line /Selected 8 (Orange) Power 1 (Green) USB Link 8 (Green) Emulation Keyboard / Mouse USB Video HDMI: 4096 x 2160 at 60Hz Scan Interval 0–255 seconds (default: 5 secs.) Power Consumption DC12V:9.77W:88BTU Environmental Operating Temperature 0–40°C Storage Temperature -20–60°C Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 3.11 kg ( 6.85 lb ) Dimensions (L x W x H) 43.24 x 21.43 x 4.40 cm
(17.02 x 8.44 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit
- 2x HDMI Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
