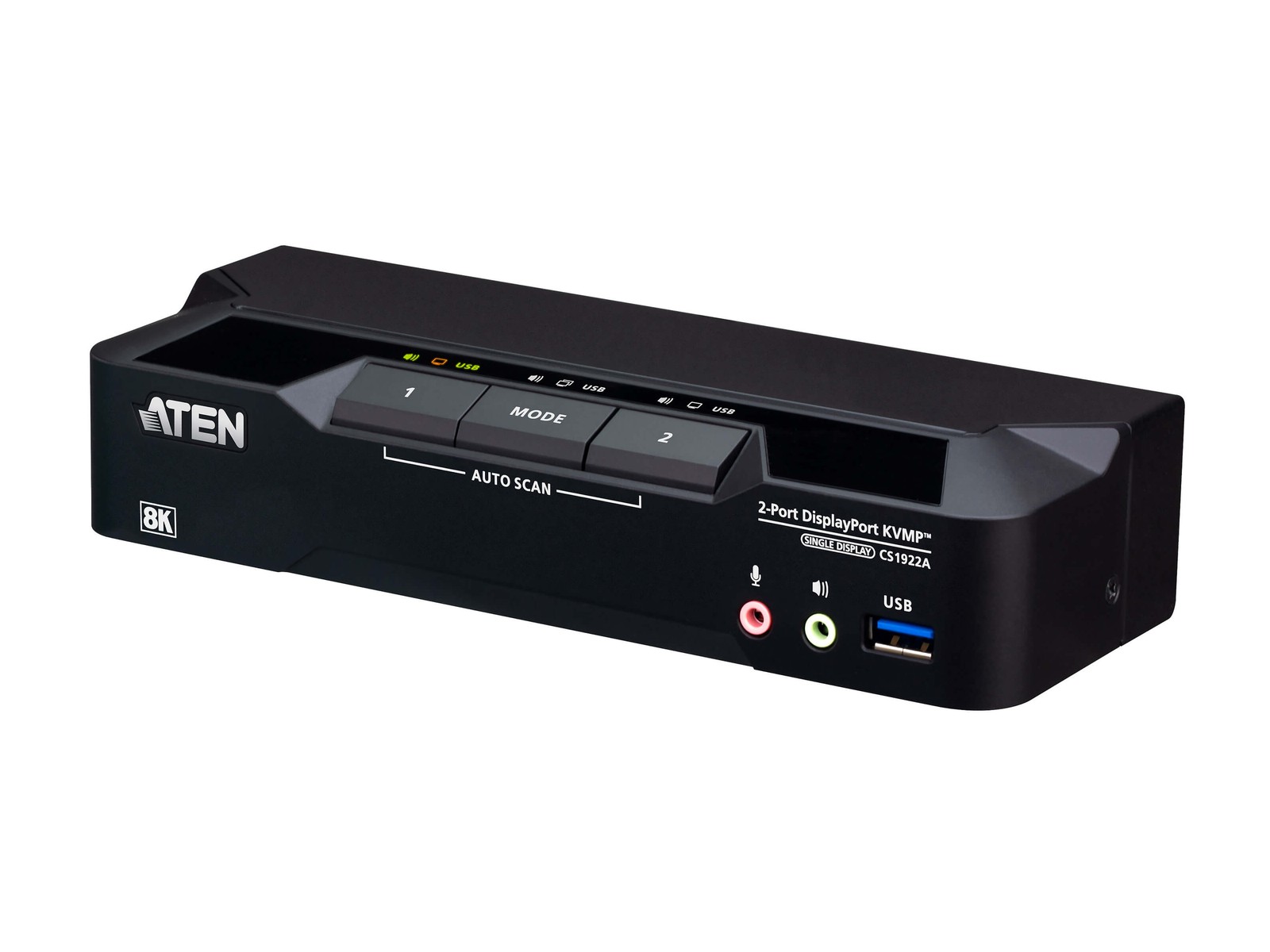

for All Products Aten CS1922A 2-Port USB 3.0 8K DisplayPort KVM Switcher / 8K@60Hz 4K@120Hz / USB 3.1 Gen1 Hub Manufacturer:Aten SKU:CS1922A Condition:New Warranty:2 Years
The ATEN CS1922A is a 2-port DisplayPort KVM switch that lets a single USB keyboard and mouse control two computers while sharing USB peripherals and audio. The CS1922A supports up to 8K at 60Hz and 4K at 120Hz displays, DisplayPort 1.4, HDCP and HDR10+ for accurate image reproduction across demanding workflows.
Built on ATEN enterprise-grade design, the CS1922A includes a USB 3.1 Gen1 hub for 5 Gbps peripheral sharing, multiple switching methods (pushbutton, hotkey, mouse wheel, remote port selector, RS-232), and daisy-chaining for multi-monitor setups. All required DisplayPort and USB cables plus a power adapter are included for quick installation.
The switch supports console keyboard/mouse emulation and independent switching of KVM, USB and audio channels for stable operation across Windows, Mac and Linux systems. Firmware is upgradeable and the unit supports hot-plugging and power-on detection for reliable multi-computer control.
Key Features:
- 8K Video Support: up to 7680×4320 at 60Hz for high-resolution monitoring and precise image detail
- High Refresh Options: 5120×2880 at 60Hz and 4096×2160 at 120Hz for smooth motion and clarity
- USB 3.1 Gen1 Hub: SuperSpeed 5 Gbps for fast peripheral sharing between connected computers
- Multiple Switching Methods: pushbutton / hotkey / mouse wheel / remote port selector / RS-232 for flexible control
- DisplayPort 1.4 Compliance: DP++ support and MST daisy-chaining for multi-display expansion
- Audio & HDCP Support: HD audio support and HDCP compliance for protected Control: operate multiple editing systems from one console while preserving full 8K preview quality
- Post Production: compare source outputs across two systems on high-resolution monitors for color grading and QC
- Command & Control: manage dual-workstation deployments with independent KVM/USB/audio switching for operational efficiency
Attention: Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention video qualityup to 7680 × 4320 at 60 Hz, 5120 × 2880 at 60 Hz, 4096 × 2160 at 120 HzTwo USB 3.1 Gen 1 portsSuperSpeed 5 GbpsSupports DisplayPort Dual-ModeDP++Supports MSTMulti-Stream TransportDisplayPort complianceDisplayPort 1.4HDCPCompliantHDRHDR 10+AudioHD console controlUSB keyboard and mouse control two/four DisplayPort computersComputer selectionPushbuttons, remote port selector, hotkeys, mouse, RS-232Independent switchingKVM, USB, AudioConsole emulationKeyboard/mouse emulation/bypassPower-on detectionAuto switch to next active computerFirmwareUpgradeableMultilingual keyboard mappingEnglish, Japanese, French, GermanPlug & playYesIncluded accessoriesDisplayPort cables, USB cables, power adapterMultiplatform supportWindows, Mac, LinuxComputer Connections2Port SelectionHotkey, Pushbutton, Mouse Wheel, RS-232 Commands, Remote Port SelectorConsole Ports2 x USB Type A Female, 1 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue), 2 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green), 2 x 3.5mm Audio Jack Female (Pink)Daisy Chain Ports1 x RJ-45 FemalePower1 x DC JackUSB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)LEDs KVM3 (Orange)LEDs Audio3 (Green)LEDs USB Link3 (Green)Switches Selected3 x PushbuttonStation Selection1 x Slide SwitchEmulation Keyboard / MouseUSBVideoUp to 7680 x 4320 at 60Hz, 5120 x 2880 at 60Hz, 4096 x 2160 at 240HzScan Interval1-99 seconds (default: 5 seconds)Power ConsumptionDC12V:2.26W:69BTU/hNote measurement Wattstypical power consumption no external loadingNote measurement BTU/hpower consumption when fully loadedOperating Temperature0–50°CStorage RH, Non-condensingHousingMetalWeight0.47 kg (1.04 lb)Dimensions (L x W x H)20.00 x 7.30 x 4.30 cm (7.87 x 2.87 x 1.69 in.)Note rack mount dimensionsstandard physical dimensions expressed using LxWxH format OUR PERKS Great Prices and
