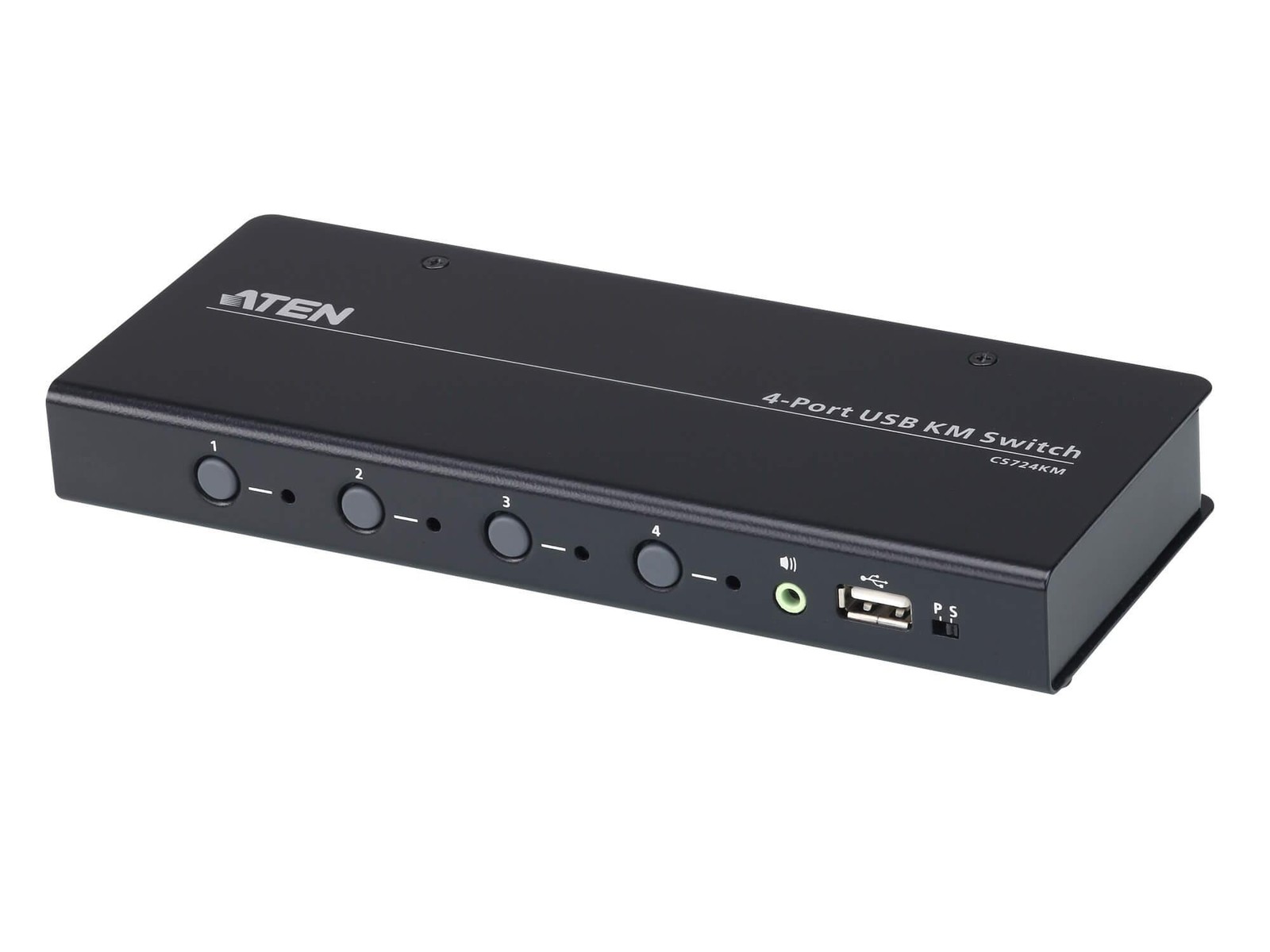

for All Products Aten CS724KM 4-port USB Boundless KVM Switch (Cables included) Manufacturer:Aten SKU:CS724KM Condition:New Warranty:3 Years
The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.
The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which enables users to switch between multiple computers in multi-monitor extended desktops by simply moving the mouse cursor across any of the display borders in any direction to instantly select the target computer and take full control.
The CS724KM’s Boundless Switching function supports extended desktops with up to four monitors, and up to eight monitors when two switches are daisy-chained, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.
The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems.
Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry.
Features:
- Single USB keyboard and mouse control up to 4 computers
- Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
- Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
- Boundless Switching Configuration Utility* – an intuitive GUI tool that enables users to customize monitor layouts
- Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands
- Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
- Supports RS-232 serial commands
- Supports Windows operating systems
- No software required
- Bus-powered – no external power adapter required**
Note:
* The utility is installed on the 3rd party computer only.
** The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to at least two computers to get sufficient power supply.
Specifications:
Computer Connections 4 Port Selection Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands Connectors Console Ports 2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
1 x RJ-45 KVM (Computer) Ports 4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green) Power 1 x DC Jack USB Hub 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel) Switches Port Selection 4 x Pushbutton Station Selection 1 x Slide Switch LEDs Selected 4 (Green) Emulation Keyboard / Mouse USB Scan Interval 1-99 seconds (default: 5 sec.) Power Consumption DC5V:1.69W:33BTU Environmental Operating Temperature 0-50°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal, Plastic Weight 0.50 kg ( 1.1 lb ) Dimensions (L x W x H) 20.00 x 8.06 x 2.50 cm
(7.87 x 3.17 x 0.98 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Includes:
- 1x 4-port USB Boundless KM Switch
- 4x USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
- 4x Audio Cables (1.8m/6ft)
- 1x User Instructions
