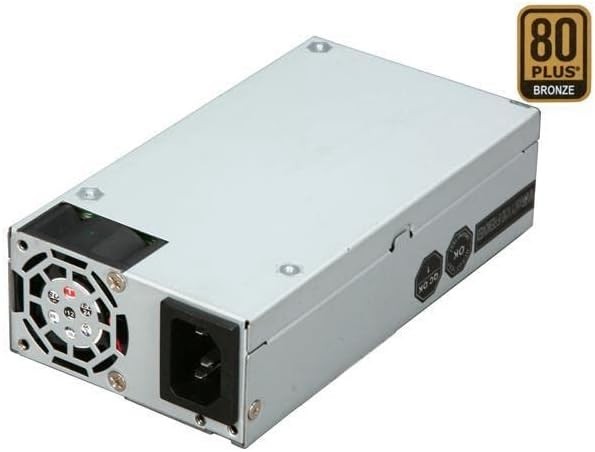

Athena Computer Power is proud to introduce FLEX ATX power supply series. With smaller computers in demand the FLEX form factor is becoming a necessity for Mini-ITX and 1UITX computers. Not only does the FLEX hone 300 Watts of power in this compact PSU, but it also comes with additional features such as Active PFC and the Remote ON/OFF feature.

A Perfect Fit

Like its name the FLEX ATX is a compact and flexible Power Supply. Designed for 1UITX rackmounts, Mini-ITX chassis, or as a replacement PSU for IBM SurePOS, Shuttle XPC, and HP Pavillion systems. Can be used to build media servers, business server, and provide power for all types of kiosks.

Smart Auto Fan Speed Controller

Thermal fan speed control will detect the amount of heat generated by the computer. Using the speed controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent.

80PLUS Certification

Saving energy has become an important factor when choosing the appropriate power supply. The FLEX 300W is one of the latest Flex ATX PSU’s that brandishes 80PLUS Bronze certification. Providing efficiency during max and low loads, this PSU lives up to the standards of today’s world.

Model: AP-MFATX30P8
Product Category: Flex ATX
Output Power: 300 Watts
Input Votage: 88 ~ 264 Volts AC
Frequency: 60/50 Hz
Temperature Range: Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C
MTBF: 100,000 Hours on Maximum Load at +25°C
Rise time: Less than 20 ms
Hold-up Time: 17 ms Minimum at Nominal Input Voltage

Output:

Voltage +5V +3.3V +12V1 +12V2 -12V -5V +5V-SB
Current 13A 13A 14A 14A 0.5A 0.5A 2.5A

Connectors:

ATX Connector 24 (20+4) Pin x 1
P4-12V(4+4) pin x 1
PCIE 6 Pin x 1
SATA 15 Pin x 3
Molex 4 Pin x 2
Floppy 4 Pin x 1

Dimension: L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in
Weight: 2.00lb
Warranty: 3 Year Manufacture Limited Warranty
