Avocent ADB0200 Cyclades RJ-45 to DB-9F Straight-Thru Serial Adapter ACS NEW
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Avocent ADB0200 Cyclades RJ-45 to DB-9F Straight-Thru Serial Adapter ACS NEW
Price: US $10.25

Avocent ADB0200 Cyclades RJ-45 to DB-9F Straight-Through Serial Adapter

For AlterPath ACS, ACS 6000, & Data Center Console Servers | Factory Sealed New Old Stock

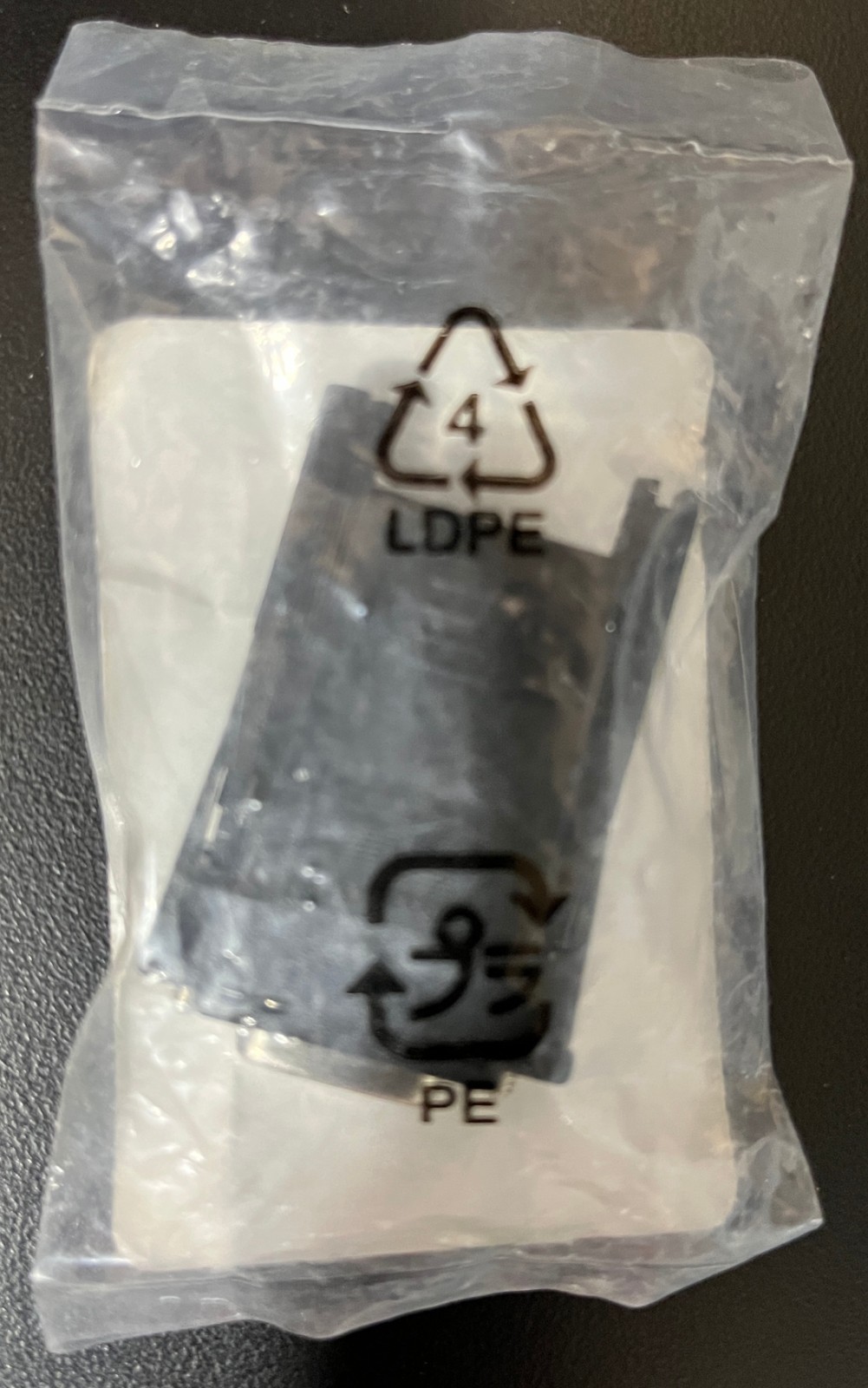

Original, brand new, unopened Avocent ADB0200 (Vertiv) Cyclades RJ-45 to DB-9 Female Straight-Through Serial Adapter.

This is a premium, specialized modular interface adapter designed explicitly for enterprise-level data center infrastructures and server rooms. Unlike common crossover blocks, the ADB0200 features a strict straight-through wiring layout, enabling standard RJ-45 structured cabling configurations to map directly to standard 9-pin RS-232 (DB9) serial console terminal infrastructure. It is an essential component for IT technicians and network systems engineers utilizing Avocent, Cyclades, or AlterPath console environments to establish direct out-of-band terminal communication lines without data stream or pinning conflicts.

Because this unit is completely unopened and factory preserved, it is a perfect find for corporate network racks, server rooms, and engineering testing labs that require pristine New Old Stock (NOS) hardware to maintain clean terminal routing and zero-downtime maintenance operations.

CORE TECHNICAL FEATURES:

  • Straight-Through Pinout Configuration: Engineered explicitly as a true RJ-45 Female to DB-9F Straight-Thru adapter, ensuring clean point-to-point pin execution for compatible serial console lines.

  • Broad Enterprise Deployment: Purpose-built to match dense data center environments; compatible with a broad range of servers, managed network switches, power units (PDUs), UPS management components, and modems.

  • Heavy-Duty Molded Protection: Constructed with a rugged, industrial-grade molded PVC housing designed to withstand tight, compact cable bends behind dense server enclosures.

  • Standard Infrastructure Fit: Integrates seamlessly into modern RJ-45 structured patch bay layouts while fitting legacy 9-pin RS-232 female serial terminal configurations perfectly.

INTERFACE CONNECTIONS:

  • Connector End 1: (1) RJ-45 Female Network Port

  • Connector End 2: (1) 9-pin DB-9 RS-232 Serial Female Port

  • Wiring Profile: True Straight-Through (S/T) Modular Block

  • RJ-45 Pin 1 (RTS) DB-9 Pin 8 (CTS)
  • RJ-45 Pin 2 (DTR) DB-9 Pin 6 (DSR)
  • RJ-45 Pin 3 (TxD) DB-9 Pin 2 (RxD)
  • RJ-45 Pin 4 (GND) DB-9 Pin 5 (GND)
  • RJ-45 Pin 5 (GND) DB-9 Pin 5 (GND)
  • RJ-45 Pin 6 (RxD) DB-9 Pin 3 (TxD)
  • RJ-45 Pin 7 (DSR) DB-9 Pin 4 (DTR)
  • RJ-45 Pin 8 (CTS) DB-9 Pin 7 (RTS)

Complete Compatibility List for Modern Environments

  • Avocent / Vertiv Console Servers:
    • ACS 8000 & ACS 800 Series
    • Cyclades ACS 6000 Series (ACS6008, ACS6016, ACS6032, ACS6048)
    • Legacy Cyclades TS & AlterPath Series Console Servers
  • Connected Target Devices (DB-9 Serial Console Ports):
    • Server RS-232 ports (Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem DB-9 serial management)
    • Legacy networking gear and appliance serial console interfaces requiring a standard DB-9 Female straight-through connection to Cyclades RJ-45 ports
    • Industrial hardware, UPS systems (Eaton, Vertiv/Liebert), and PDUs using standard DB-9 RS-232 pinouts

CONDITION NOTES:

This unit is in absolute pristine, brand new condition. It remains factory-sealed in its original defensive plastic retail packaging, ensuring the pin contacts, inner board lines, and outer housing are entirely unweathered and free of dust, metal tarnishing, or environmental degradation. Preserved strictly inside a climate-controlled warehouse.

SHIPPING & LOGISTICS:

Will be safely packed inside a well-padded bubble mailer or a sturdy mini-corrugated shipping container to protect the structural connectors during transit. Ships rapidly from Las Vegas, NV, with full tracking.

CUSTOM CONFIGURATION & INSTALLATION (OPTIONAL)

Custom Configuration in advance for immediate connection toyour network can be included at no charge!

(HDW = IP Address, Subnet Mask, Gateway - SIM/CIM =Default)

Unit is set back to Factory if no config is requested

CUSTOM INSTALLATION (North America Only)

Installation services are available throughout the USA asfollows:

$1,660/Day* **

*Expenses are included with a 2-Day minimum to include:Transportation, Lodging, and Daily Per-Diem only.

** Day (Work Day) = 10 Hours per Work Day (Unit)

Services Provided by OOBAXS™ (PronouncedOut-Of-Band Access)
