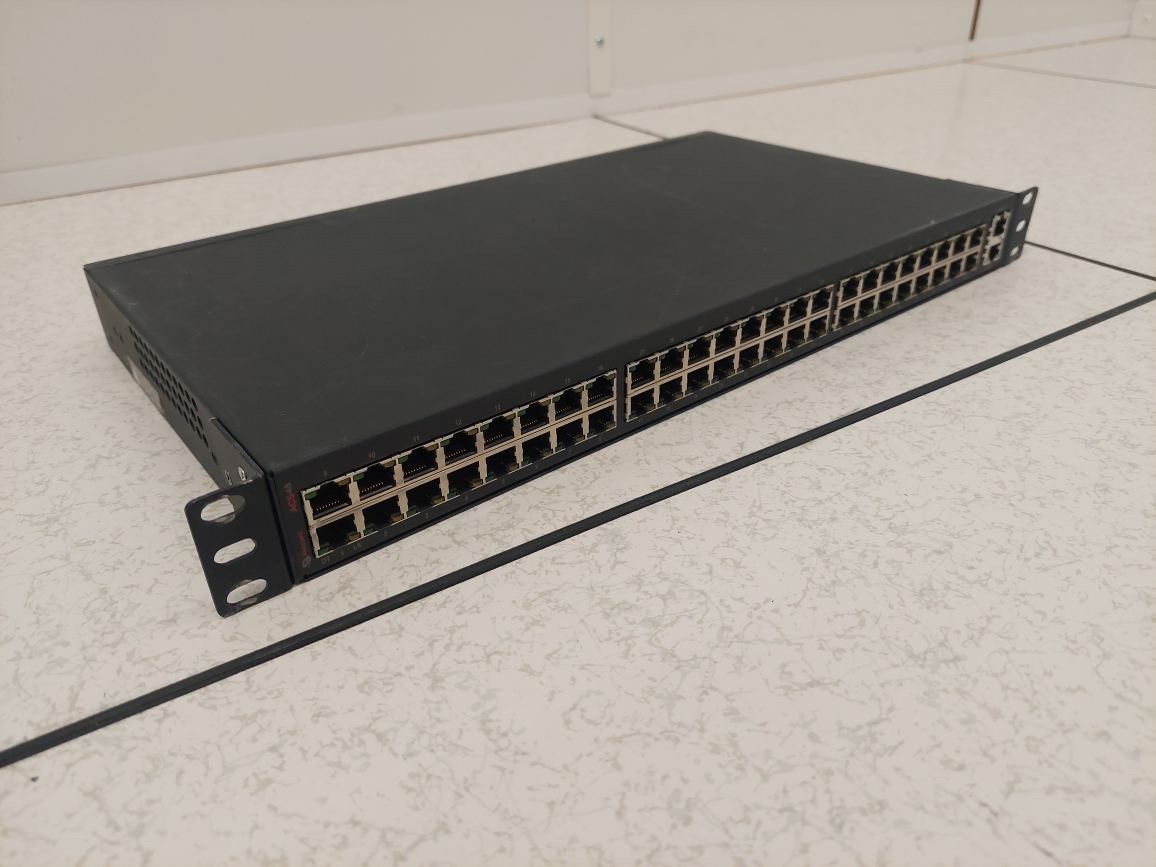

Up for selling Avocent Cyclades ACS48520-500-506Serial Console Server 48-port RJ45 Port Single AC Power Supplies with rack-mounted ears.

Verified and tested prior to removal from the worked environment. Unit reset to the root factory default status..

• SN: 0140657156

• MPN: 520-500-506

• Factory default user style="margin: 0px; font-style: normal; font-variant-caps: normal; font-width: normal; font-size: 13px; line-height: normal; font-family: Helvetica Neue; font-size-adjust: none; font-kerning: auto; font-variant-alternates: normal; font-variant-ligatures: normal; font-variant-numeric: normal; font-variant-east-asian: normal; font-variant-position: normal; font-variant-emoji: normal; font-feature-settings: normal; font-optical-sizing: auto; font-variation-settings: normal;">root@CAS root]# cat /etc/hhl-arch

  ppc_8xx

  [root@CAS root]# uname -v

  #1 Thu Oct 9 07:42:42 PDT 2014

  [root@CAS root]# cat /proc/version

  Linux version 2.6.22 (gcc version 3.3.1 (MontaVista 3.3.1-3.0.10.0300532 2003-12-24)) #1 Thu Oct 9 07:42:42 PDT 2014

  Cyclades-ACS48-Linux V_3.3.0-16 (Oct/09/14)

  [root@CAS root]# uname -a

  Linux CAS 2.6.22 #1 Thu Oct 9 07:42:42 PDT 2014 ppc unknown




  Features and Benefits

  • Operating System:Linux
  • Accessibility:In-band (Ethernet) and out-of-band (dial-up modem) support; PC Card slot support allows for alternative access interfaces, such as modem (V.92 and ISDN), Ethernet, fast Ethernet (fiber optic) and wireless Ethernet (GSM, CDMA and GPRS) (Click here for a list of supported PC Cards.)
  • Availability: Automatic Ethernet failover using Ethernet PC Card as the secondary port; Dual power supply
  • Security: Pre-set security profiles - secure, moderate and open
    Custom security profile; X.509 SSH certificate support; SSHv1 and SSHv2; Local, RADIUS, TACACS+, LDAP, NIS, and Kerberos authentication; Two-Factor Authentication using RSA SecurID; Local backup user authentication support; One-Time Password (OTP) authentication; PAP/CHAP and Extensible Authentication Protocol (EAP) (for dial-up lines); Separate authentication to access ports and console server; Group authorization - TACACS+, RADIUS and LDAP; Dial back support; IP packet and security filtering; User access lists per port; System event syslog; IPSec with NAT traversal support; Secure factory defaults; Secure clustering for up to 1,024 devices
  • Console Management:Sun break-safe (Solaris Ready certified) ; Break-over SSH support; Windows Server 2003 EMS support; Offline data buffering - local or remote (NFS/Syslog); Level-based Syslog filters; Time stamp for data buffering; Unlimited number of simultaneous sessions; Simultaneous access on the same port (port sniffing); Secure clustering (central access to multiple console servers); Event notification (email, pager, SNMP trap); Global time zone support
  • Port Access:Directly by TCP port, IP address or server name; Telnet/SSH with menu ; Simultaneous Telnet and SSH access; HTTP/HTTPS; Bi-directional Telnet
  • System Management:Configuration wizard for first time users; Command line interface (Linux Shell); Web Management Interface (HTTP/HTTPS); SNMP
  • Cabling:CAT5 compatible adapters for simpler cabling (sold separately)
  • Upgrades:Upgrades available on FTP site, no charge; Flash upgradeable; TFTP support for network boot
  • Additional Protocols Supported:DHCP for dynamic IP address assignment; PPP/SLIP for dial-up; NTP for time server synchronization; RFC2217 support for remote serial port access




  Specifications

  • Dimensions ACS48 17 x 8.5 x 1.75 in (43.18 x 21.59 x 4.45 cm)
  • Weight 8.1 lb (3.67kg)
  • Operating Temp For ACS48: 50°F to 112°F (10°C to 44°C)
  • Storage Temp 40°F to 185°F (-40°C to 85°C)
  • Humidity 5% to 90% noncondensing
  • Operating Voltage & Power Supply Internal 100-240VAC, 50/60 Hz Optional -48 VDC power supply Optional dual entry, redundant AC and DC power supplies
  • Supported Hardware: CPU MPC855T (PowerPC dual CPU)
  • Memory 256 MB DIMM SDRAM/128 MB compact flash (ACS48)
  • PC Card Slots Modems (V.92 and ISDN), Secondary Ethernet, fast Ethernet (fiber optic), wireless LAN (GPRS, GSM and CDMA), compact flash and IDE drive
  • Interfaces 1 Ethernet 10/100BT on RJ45 1 RS-232 console on RJ45 RS-232 serial ports on RJ45
  • Certifications: FCC Part 15, A EN55022, A (CE) EN55024 NEBS Level 3 UL/cUL TUV/GS Japan VCCI V3/2003.4 BSMI CB Scheme (IEC 60950) MIC S-Mark ICES-03 C-Tick Solaris Ready
