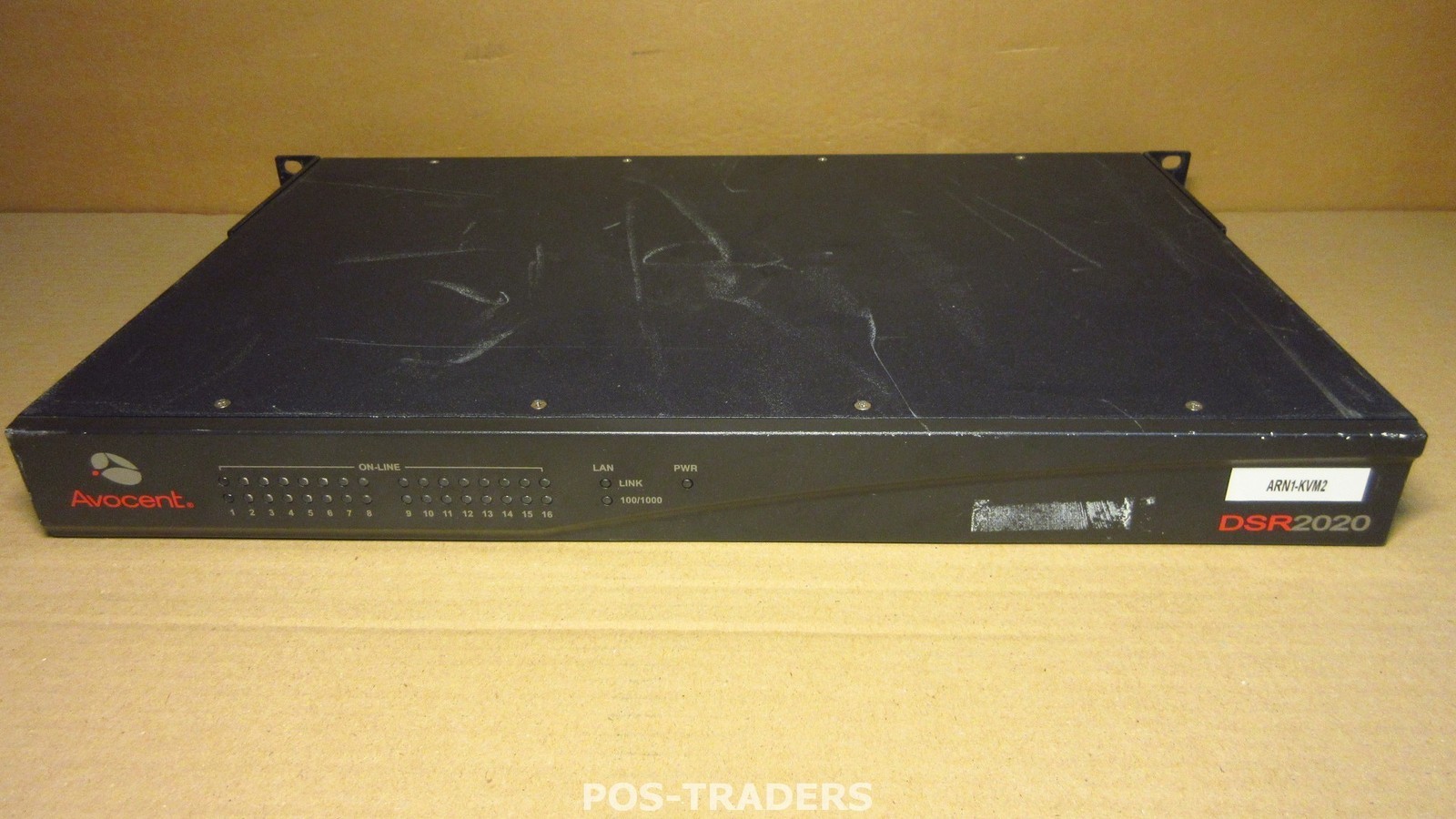

Avocent DSR2020 16-Port KVM over IP Switch 1 local, 2 digital Users 520-364-010

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

EXCLUDING NETWORK CABLES

See photos for actual item!

Price isfor 1 item.

Features and Benefits:

• Remote server management: The 16-port DSR2020 KVM over IP switch provides two simultaneous digital paths for local and remote server management.
• Integrated power control: Integrates KVM and power control in one solution. Also provides external modem support when the network is down.
• On-board Web interface: Provides access to appliances without the immediate need to purchase DSView® 3 management software. DSView 3 software is needed for more advanced features.
• BIOS-level access: You can remotely reboot the server to the BIOS level and power cycle remote devices.
• Single management platform: The DSR2020 switch combined with DSView 3 software gives you a single interface to manage your entire IT infrastructure, including data center and branch office locations.
• Scheduling: DSView 3 software simplifies management of routine tasks, updates, and file loading including automation of task schedules and updates.
• Local login required: Required login at the local port for increased security
• Failover authentication: DSView 3 management software, with hub and spoke architecture, provides failover authentication, ensuring system reliability and security.
• User logs and access control: DSView 3 software advanced security includes audit logs and gives you the power to assign individual user rights.

Specifications:

• Device Type: KVM switch - 16 ports
• Enclosure Type: Rack-mountable - 1 nm
• Ports: 16 x KVM
• Server Connection: Via Twisted Pair CAT5
• Keyboard / Mouse Interface: PS/2
• Encryption Algorithm: DES, Triple DES, SSL, AES
• Authentication Method: RADIUS, LDAP, Active Directory, TACACS+
• Max Resolution: 1280 x 1024 @ 75 Hz
• Features: IP-based user connection, Server connection via twisted pair
• Interfaces: Keyboard/video/mouse (KVM): 16 x RJ-45, 2 x RS-232 - 9 pin D-Sub (DB-9), 2 x Ethernet - RJ-45, Keyboard 6 pin mini-DIN (PS/2 style), Mouse 6 pin mini-DIN (PS/2 style), Display VGA - 15 pin HD D-Sub (HD-15), 4 x USB Type A
• Power supply: Internal
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Consumption: Operational 40 Watt
• Dimensions (WxDxH): 17" X 11" X 1.7"
• Weight: 7.3 lbs
• Compliant Standards: GOST, GS, MIC, ICES-003, C-Tick, VCCI, FCC, cUL, DDC-2B, UL

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
