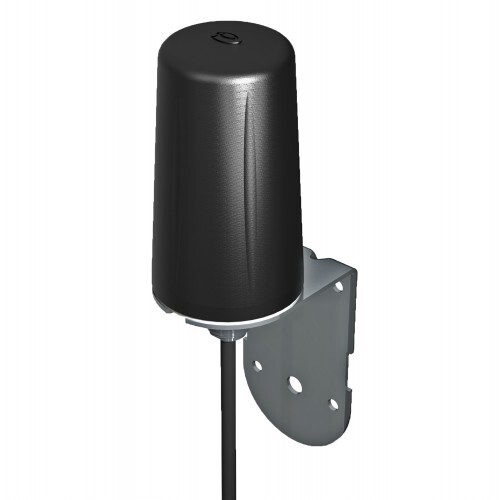

B4BE-6-60-5SP 4G/5G Bracket Mount Low Profile 5M Cable SMA Connector B4BE-6-60-5SP 4G/5G Bracket Mount Low Profile 5M Cable SMA Connector
The Panorama B4BE is a robust bracket mount antenna for 5G, LTE, M2M and IoT applications.
This is the 5m Version with SMA Connector
- Robust, cost-effective bracket mount antenna
- integrated cable
- Supports 2G/3G/4G/5G
The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G/5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G & 5G applications the world over.
Electrical Data2G/3G/4G/5G Frequencies600-960/1710-6000MHzTypical VSWR<2.5:1Peak Gain (dBi)7Max Input Power (W)60PatternOmni-directionalMechanical DataAvailable ColoursBlack; WhiteHeight (mm)164Diameter (mm)48Operating Temperature-40 / + 80°CMounting DataMounting TypeWall Mount; Mast MountMounting MethodScrew Mount; Jubilee ClipApprovals DataIP RatingIP66
Datasheet: B4BE-6-60
