EXPANSION AND STORAGE OPTIONS: The motherboard offers 1 ATA3.0 (6GB/s) port and 2 ATA2.0 ports to connect multiple storage devices seamlessly. Additionally, it includes one PCI Express x16 slot, one PCI Express x1 slot, and a slot supporting M.2 NVMe and NGFF interfaces for further expansion potential.
Spec:

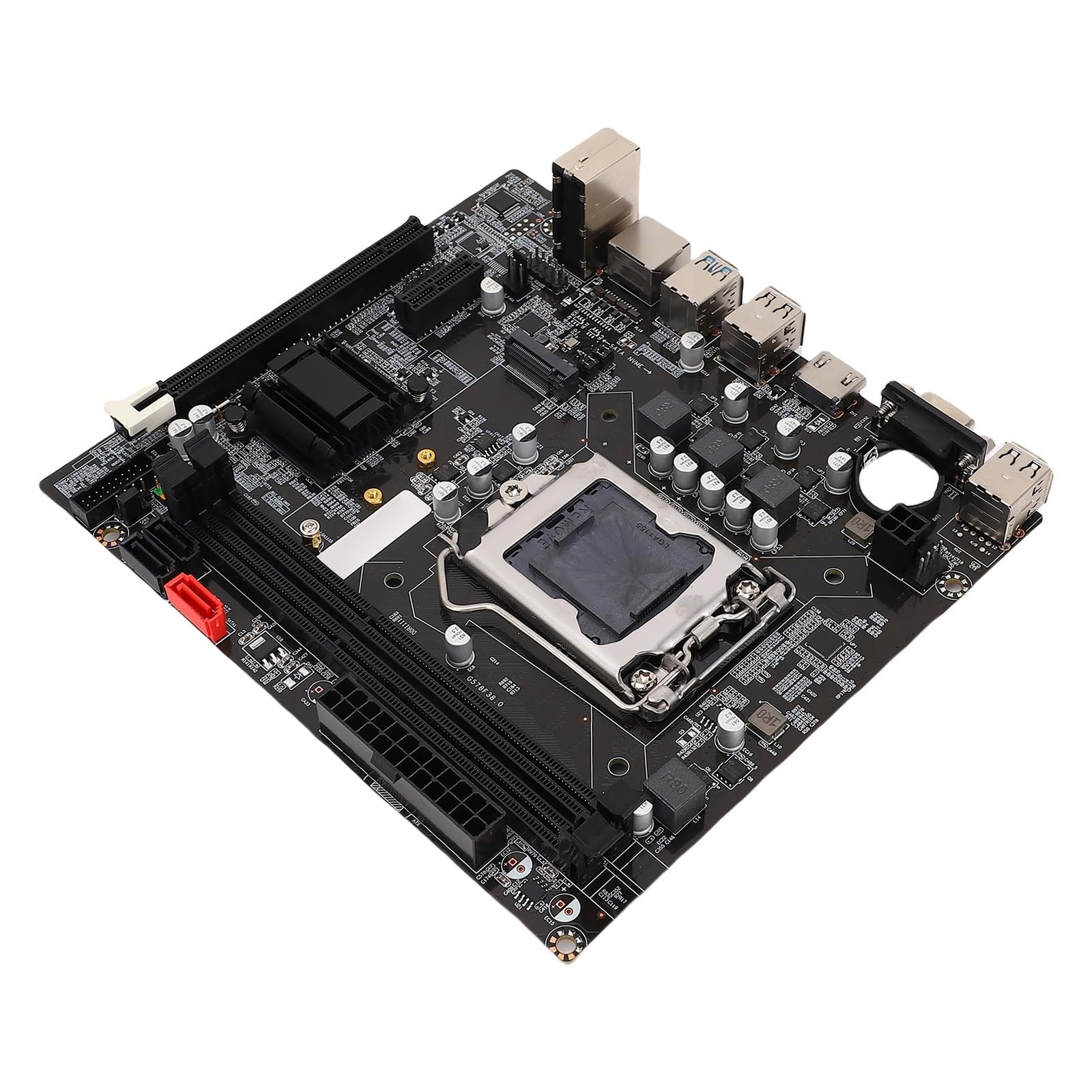

Item Type: Computer Motherboard
Model: B75
Material: PCB
Battery: CR2032 (Built in) Capacity: 240mAh
Socket: for LGA1155 Socket
CPU Support: for 2nd or 3rd gen for Core i3/i5/i7, for E3/V2 series, for Celeron G series, and for Pentium G series processors
Memory: 2 x 240 pin DDR3 SDRAM slots, Maximum memory support 16GB, Supports double channel DDR3 1066/1333/1600 MHz
Storage: 2 x ATA2.0 (3Gb/s) ports + 1 x ATA3.0 (6Gb/s) port
Integrated LAN: Onboard for Realtek 10/100 Mbps LAN
Expansion Slots: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot
Integrated Sound: Onboard for Realtek ALC 6 channel HD sound codec, Front sound interface, Front stereo microphone interface
I/O Interfaces: 4 x USB 2.0, 2 x USB 3.0, 1 x VGA port, 1 x High Definition Multimedia Interface port, 1 x RJ45 port, 1 x 3 in 1 sound port (sound input/sound output/Microphone input)
Power Interfaces: 1 x 24 pin ATX power port, 1 x 4 pin ATX 12V power port
Product Size: M-ATX architecture (Approx. 17 x 19cm / 6.69 x 7.48in)
How to Use:
Simply remove the product and start using it.
PackageList:
1 x Computer Motherboard
[CHIPSET & CPU COMPATIBILITY] The B75 chipset supports 2nd and 3rd Gen Core i3/i5/i7, E3/V2, Celeron G, and Pentium G series processors. Ideal for budget builds and workstation setups with CPUs like and E3-1280 V2.
[DUAL CHANNEL MEMORY] Features two DDR3 slots supporting up to 16GB (2x8GB) at 1066/1333/1600MHz. Dual-channel architecture enhances gaming and multitasking performance for smooth operation.
[HIGH-SPEED M.2 INTERFACE] Equipped with a versatile M.2 slot supporting both NVMe and NGFF SSDs. Jumper-selectable PCIe or modes optimize storage speeds up to 6Gb/s for faster data access.
[INTEGRATED GRAPHICS OUTPUT] Delivers 1080P HD video via VGA and ports without a dedicated GPU. Requires a compatible CPU with integrated graphics for crisp multimedia display.
[INDUSTRIAL-GRADE BUILD] 8-layer PCB with 6-phase power design and solid capacitors ensure stability. 24+4 pin power connector resists bending for reliable long-term operation in demanding environments.
