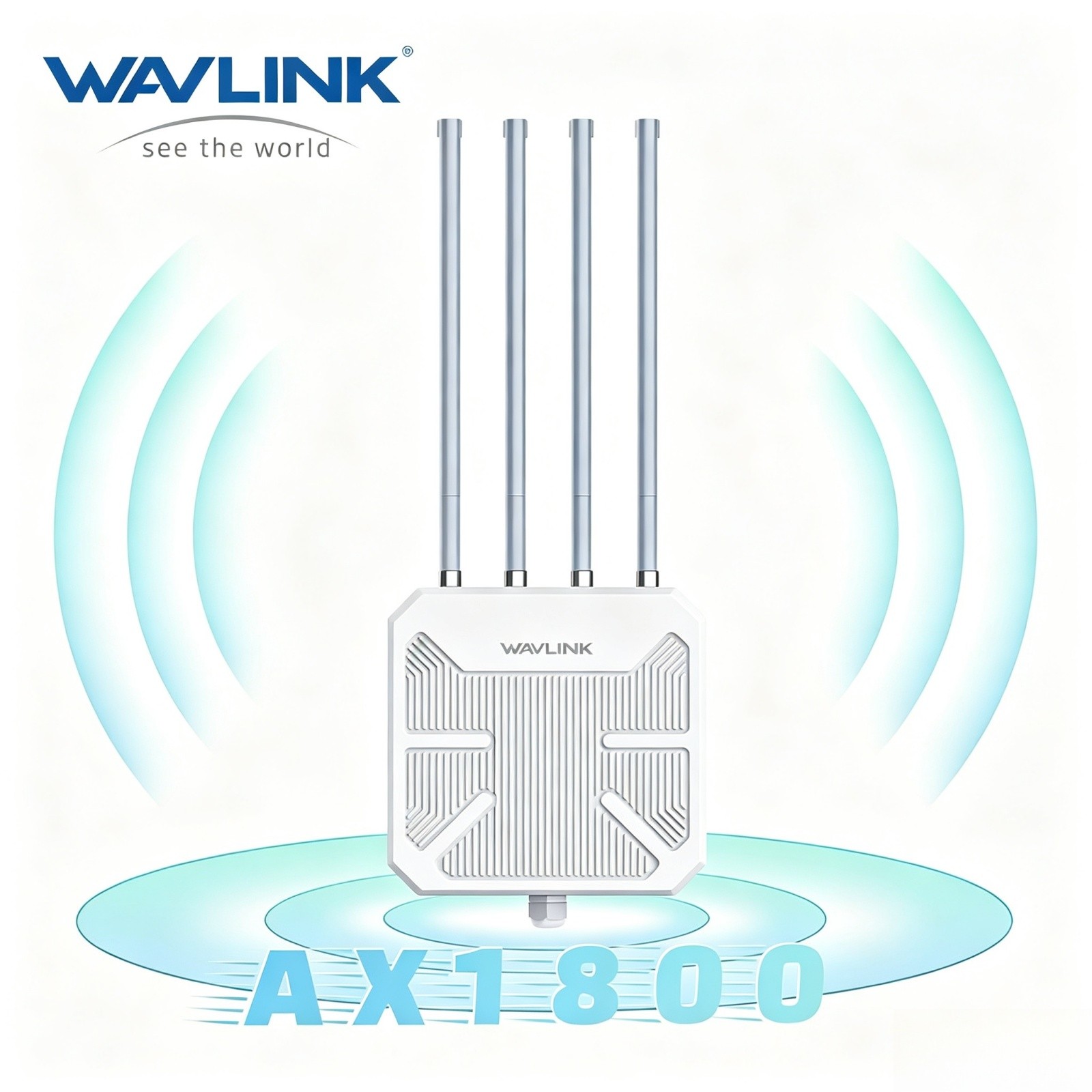

ModelWiFi 6 AX1800/1G LAN WiFi 6 AX3000/1G LAN WiFi 7 BE5100/2.5G LAN Who should pick this?Users with moderate outdoor spaces, up to 128 devices, and a tight budget. The perfect entry point into WiFi 6 outdoor networking. Users who need maximum speed and capacity (256 devices) with full 360° coverage. The best all‑rounder for serious outdoor networking. Users who demand cutting‑edge WiFi 7 performance and are willing to invest in the latest technology. Perfect for future‑proofing your outdoor network and handling the most demanding applications. WiFi 6 AX1800/1G LAN Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
WiFi 6 AX3000/1G LAN
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
WiFi 7 BE5100/2.5G LAN Next-Gen Wi-Fi 7 Performance - Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology,
delivering blazing speeds of 688Mbps on 2.4GHz and 4323Mbps on 5GHz for a combined throughput up to 5100Mbps.
Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.Strong Environmental Resilience - Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure
shrugs off torrential rains, dust storms, and debris. Built-in 15KV ESD protection and 4KV lightning surge defense safeguard
critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites, or mountainous terrain.Flexible Enterprise & Rural Power Options - Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables
plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective,
long-range power for rural farms, orchards, and music festivals.Expansive Coverage with Intelligent Roaming - Four 8dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas,
while the dedicated 5dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh,
one-click connection creates a unified mesh network.Five Adaptive Operation Modes - Transform this router to fit any scenario: router/AP mode converts wired networks to Wi-Fi hotspots;
repeater extends weak signals; mesh router/extender creates seamless multi-node systems; and mesh AP integrates with existing infrastructure.
Maintain a single network name (SSID) across all modes for effortless scaling.
Specification
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.
Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
