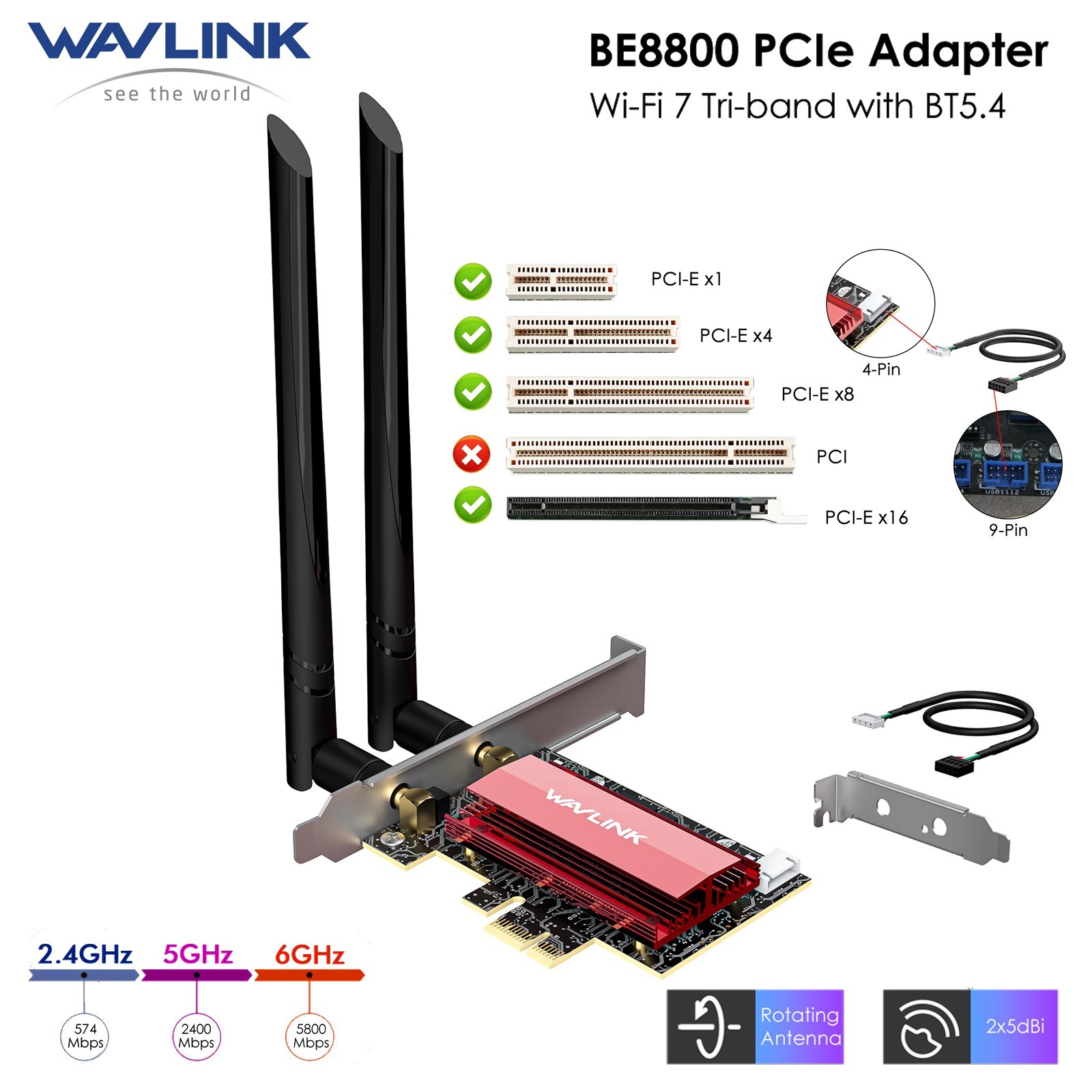

WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Adapter--Innovative Wireless Connectivity!
WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO
feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking
experience. Compliant with 802.11 be specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU
-MIMO technology, WN685BE3-B delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible
router.
⭐Pioneering Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering
outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and
320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.
⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-
band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet
the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer
and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and
enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware,
providing a secure network environment.
⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous
(HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more
data into the waveform signal, featuring faster data transfer rate and better overall network performance.
⭐Compatiblity & Warranty: Compatible with Windows 10/11 for desktop PC, you can get the driver from our website. Works with
PCIe X1/X4/X8/X16 slots(Not support for all devices whose motherboard has AMD chips). We provide 12-month worry free warranty
(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.
Latest Bluetooth 5.4
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.0. Coordinate your game
controllers, headphones, and keyboards with the latest Bluetooth standard.
Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.
WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password
safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas extend your existing WiFi reception capabilities by allowing you to stream throughout your
home.
Advanced Heat Sink for Better Stability
The networking card is equipped with an advanced heat sink that effectively dissipates the heat generated by the adapter. This feature
not only enhances performance and stability but also contributes to extending the lifespan of the adapter.
Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's
PCI-e slot.
Steps to Install the Wi-Fi Card
1. Power off the PC, open the case, find one available PCIe slot.
2. Insert the PCIe into the corresponding slot. Works with PCIe x1, x4, x8, x16.
3. Plug the BT cable into the 9-pin USB connector on the motherboard and the 4-pin connector on the card.
4. Install the antennas, adjust the angle accordingly for better signal.
5. Download and install the driver from WAVLINK official website. Then, enjoy！
Specification
Product Model: WN685BE3-B(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO),
Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't
work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed
of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers,
laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual
