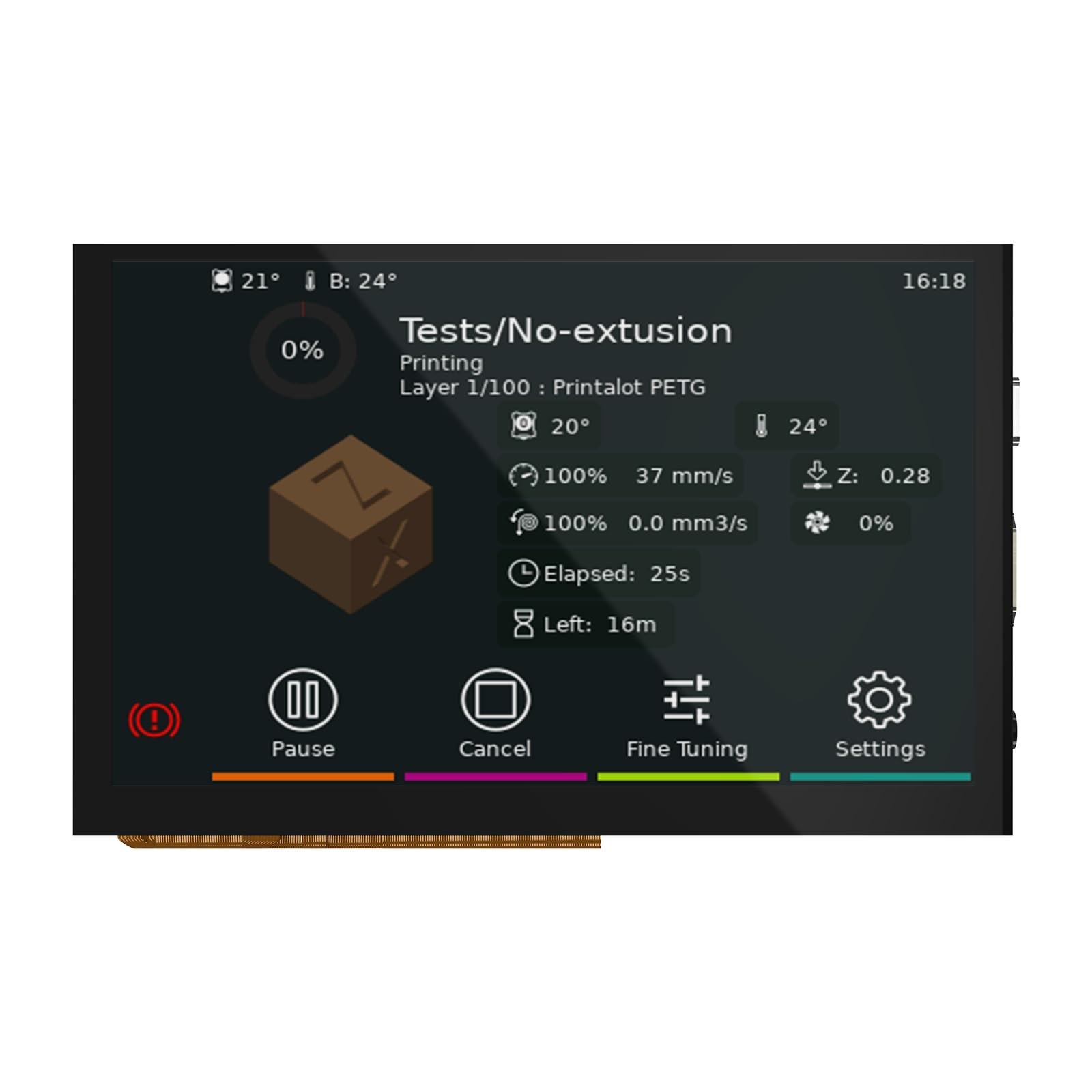

BIGTREETECH HDMI5 V1.2 is a universal 5-inch IPS capacitive touch screen developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd,screen resolution of 800 * 480 Supports 5-point touch/brightness and display direction adjustmen/3.5mm headphone jack audio output. can work with for Raspberry-Pi 4B.3B.Banana-Pi, Windows 10 8 7 ...etc.Product Parameters:1. Product Dimension: 121 x 76mm2. Mounting Size: 121 x 76mm, you can read more details here: BTT HDMI5_V1.0_SIZE3. Power Input: DC 5V4. Logic Voltage: DC 3.3V5. Screen Size: 5-inch IPS Display6. Screen Resolution: 800x4807. Screen Viewing Angle: 160°

• BIGTREETECH HDMI5 touchscreen desinged for users of 3d printers using the Klipper system. HDMI input, suitablec for Raspberry-Pi4, PI4B+CB1/CB2, BTT PI V1.2/BTT PI 2, Banana-Pi, Windows 10 8 7, and other mini PC.
• BIGTREETECH 5 inch hdmi touch screen adopts 5 inch IPS capacitive touch screen with a resolution of 800x480, 160° viewing angle, support up to 5-point touch.
• BTT 5 inch hdmi display built-in audio decoding circuit, support 3.5mm headphone jack audio output and brightness and display direction adjustment.
• Widely Compatible A: BTT HDMI 5 V1.2 compatible with BTT PI V1.2/PI 2 or CB1/CB2+PI4B, can working with SKR Mini E3 V3.0/SKR Pico/SKR V1.4 Turbo/SKR 3/Octopus series/Kraken/SKR Pro V1.2 3D printer board, running Klipper touch screen mode. for SV08, Voron, CoreXY, VZbot, I3 3D Printers.
• Widely Compatible B: BIGTREETECH HDMI5 V1.2 display working with CB1/CB2, compatible with Manta M4P/M5P/M8P, Matan EZ E3 board, it can running Klipper touch screen mode.
• 4pin XH2.54 breakout port. The 4-pins XH2.54 breakout port allows custom connection via USB protocol, as well as screen independent power (DC 5V), giving users more DIY options.
• After-sales Service: The manual and installation instructions have been uploaded to Github, If you have any problems during use, please tell us at the first time, we will give you a satisfactory solution.
