A practical choice for buyers looking for bigtreetech octopus pro v1.1 h723 klipper/marlin 32bit control board 550mhz.
Product overview

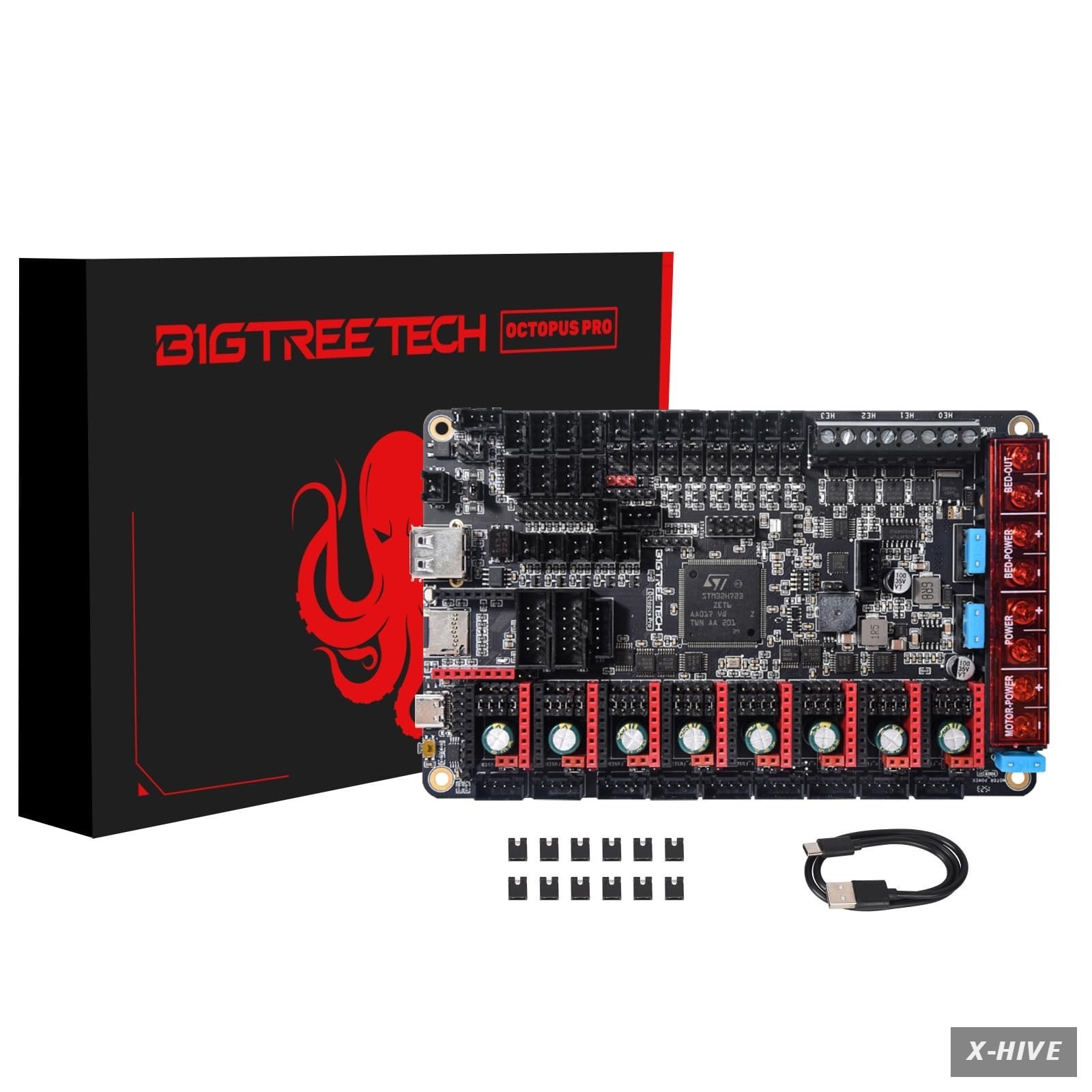

BIGTREETECH Octopus Pro V1.1 (H723)) 32bit control board 550MHz 512kb support 8 Axis stepper motor drivers TMC2209, TMC5160t pro, TMC2208 compatible with BTT PI V1.2 control board to running Klipper/Marlin support high-speed printing/high voltage printing Raspberry-Pi octprint operating systems for Voron V2.4, CoreXY, I3 3D printer upgrade motherboard. Firmware update instruction: 1. Please download the pre-compiled Marlin or Klipper firmware from BIGTREETECH Github Once buyers have either compiled buyers own version of Marlin or downloaded a pre-compiled version, buyers can install it by following the steps below: 2. Make sure that the firmware binary is named “firmware.bin”.
Key features
- Main Control Chip: BIGTREETECH Octopus pro v1.1 h723 board adopts the ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, 512KB flash, processing is more stable and fast.
- About Firmware: Supports Marlin and Klipper, compatible with BTT Pi V1.2/Pi 2 or CB1/CB2+Pi4b adapter, the best choice for Klipper high-speed/voltage printing, meet the individual need of DIY users, support operation systems Raspberry-Pi / Octoprint.
- Stepper Motor Upgraded: Support 8 axis powerful motor driver, support 5V level for stepper motor driver, better performance. Support max 60V motor input voltage to inprove motor power, reduce pulse losing. Support STEP/DIR/UART/SPI Mode, such as TMC2209,TMC220
- Onboard MAX31865: Support 2/4-wire PT100/PT1000 temperature measurement without welding (the soldering resistance can also support 3-wire PT100/PT1000 temperature measurement. Onboard Jst interface, support Canbus function.
- Expanded function interface: Support Bltouch, biqu microprobe v2.0, eddy v1.0 auto bed leveling sensor, resume printing, Wifi. RGB light, SFS V2.0 filament runout detection. Power shundown, Proximity sensor...etc. dsiaplay compatible with HDMI5 v1.2 touchscree
- Increase Motherboard Protector Level Conversion Chip: Convert 3.3V signal to 5V signal, improve driver performance, 8 isolation chips to protector the motherboard, avoid reverse drive insertion or short circuit, the main control chip is burnt.
- Attation: If you have any problems during use, please tell us at the first time. the product will give you a satisfactory solution.
Product detailsBrandUnbrandedColorblackVoltage5 voltsMaterialPCBItem Weight0.33 kgManufacturerBIGTREETECHNumber in Pack1Included ComponentsBIGTREETECH Octopus pro V1.1 TypetouchscreenMaterial TypePCBType3D Printer Controllers
Package contents are based on the product information shown above. Please confirm compatibility, measurements, and required specifications before ordering.
