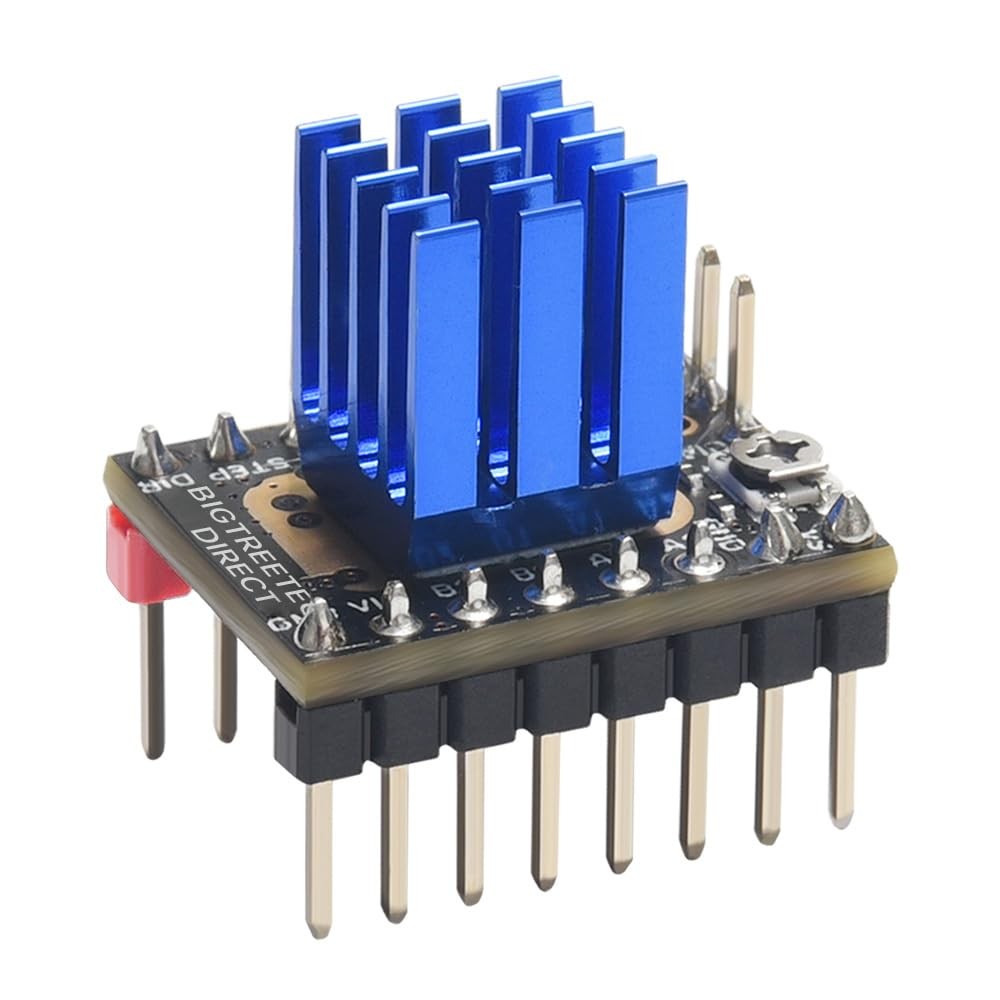

BIGTREETECH TMC2209 V1.3 UART Stepper Motor Driver ModuleVS TMC2100 TMC2130
- Ultra-quiet Stepper Driver: Thanks to StealthChop2 ultra-quiet technology, BIGTREETECH TMC2209 V1.3 stepper motor driver allows for silent motor operation. The TMC2209 drivers work with a continuous current up to 2.0A, peaks of 2.8A. The voltage range from 4.75V to 28V.
- Sensorless Homing: The BTT TMC2209 stepper motor driver incorporated Stallguard4 locked motor technology to detect alterations in the motor current and use this measurement to detect the end of an axis' stroke and produce 3D printers without limit switches.
- Excellent Heat Dissipation: BIGTREETEHC TMC2209 stepper motor driver adopts CoolStep current dynamic control, which can save 75% energy. The sinusoidal control can be perfectly realized even in the system with limited pulse frequency. Reduce the heat generated by the stepper motor, thereby reducing cooling requirements.
- Supports UART, STEP/DIR Modes: BIGTREETECH 4PCS TMC2209 V1.3 UART stepper motors support UART, STEP/ DIR Mode, except that you need to modify the firmware for the mode you use. BTT TMC2209 v1.3 compatible with most 3D printer motherboards on the market, such as BTT Octopus v1.1/Octopus pro, SKR V1.4 turbo/SKR 3, Manta M4P/M5P/M8P, MKS Gen L...etc 3d printer board.
- Satisfying Customer Services: If you have any problems regarding our BTT TMC2209 V1.3 drivers stepsticks, please feel free to tell us via Amazon message, or search BIGTREETECH at GitHub.
【TMC2209 V1.3】:
⚡Stepper Motor Driver based on a Trinamic TMC2209
⚡Hardware compatible with StepStick and Pololu A4988
⚡Step/Dir interface with microstep interpolation (up to 256 microsteps)
⚡StealthChop2 - for quiet operation and smooth motion
⚡SpreadCycle - highly dynamic motor control chopper
⚡CoolStep - current control for energy savings
⚡StallGuard4 - sensorless motor load detection
What is the difference between TMC2208 and TMC2209 SilentStepSticks?
⚡TMC2209 SilentStepSticks have output drivers with a lower power dissipation and a higher current is possible.
⚡TMC2209 SilentStepSticks feature coolStep and stallGuard4(optimized for stealthChop).
⚡TMC2209 SilentStepSticks can be switched between stealthChop and spreadCycle mode via a configuration pin(SPREAD).
⚡TMC2209 SilentStepSticks drivers have the v2 pinout(Vref and DIAGO swapped).
TMC2209 V1.2 VS TMC2208, more of these functions:
⚡Blocking rotation detection
Stallguard--TMC2209 provides a load and loss of speed detection technology
⚡ Current dynamic adjustment
Coolstep--TMC2209 provides a current dynamic regulation technology that saves up to 75% of electrical energy.
