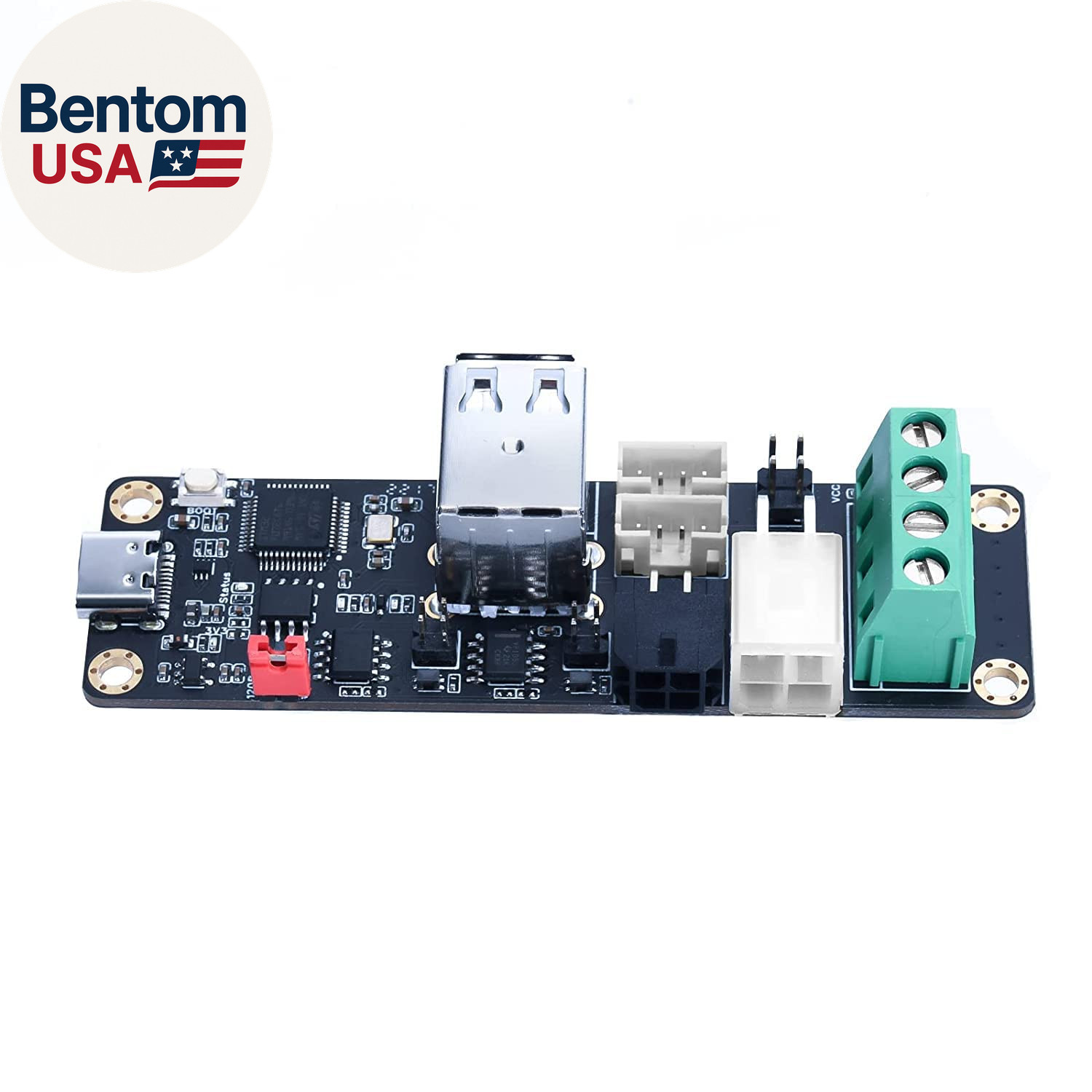

BIGTREETECH U2C V2.1 Adapter Board Supports CAN Bus Connection with 3 CAN Output

Price: US $43.43

High-Performance U2C: support CAN bus connection, long data transmission time, strong anti-noise ability, strong real-time performance and high reliability
Specially Treated PCB Surface: Immersion gold process is adopted, with better color and luster. The crystal structure formed by immersion gold is easier to weld than other surface treatments, and can have better performance and ensure quality. The stress is easier to control, and the experience is better when using
High Reliability: TYPE-C port ESD protection to prevent static electricity from damaging hardware, and supports firmware update for the motherboard through SWD or hardware DFU
Adapter Board: There are many different forms of CAN interfaces on the board, which help to connect different boards. The CAN bus has a long transmission distance, and a large number of nodes can be mounted on it. one connection multiple
Note: 12/24V and GND should not be reversed. When using CAN communication, you need to see which CAN node is used as a terminal. If it is a terminal, you must plug the jumper cap at the 120R position

Product description

What is U2C V2.1 ?

BIGTREETECH U2C V2.1 is a USB to CAN bus module, which can convert the USB port of Raspberry Pi to the CAN bus, and connect 3D printing motherboard, BIGTREETECH EBB35/36/42 CAN and other products through CAN bus. There are many different forms of CAN interfaces on the board, which are helpful to connect to different boards.
CAN bus has many advantages in the field of industrial control, so our company has launched this USB to CAN module. The CAN bus has a long transmission distance, and a large number of nodes can be mounted on it, so the motherboard, EBB, and other expansion boards can be mounted on the same CAN bus at the same time.

Precautions

12/24V and GND should not be reversed.
When using CAN communication, you need to see which CAN node is used as a terminal. If it is a terminal, you must plug the jumper cap at the 120R position;
