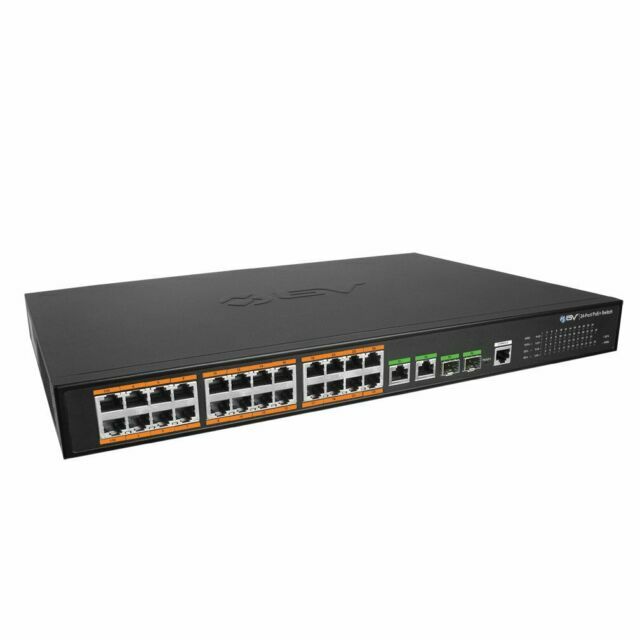

BV-Tech (POE-SW2404-MG) 26 Port PoE Managed Switch Networking Device
Price: US $300.00
New in Box Switch Specifications:
  • Ports: 2*10/100/1000 Base-T (Combo port), 2*1000 Base-X (Combo port), 24*10/100 Base-T (PoE power supply)
  • PoE Power: Port 1/2 support Hi-PoE (60W); PoE+, PoE; Each power =30W; Total =240W
  • PoE Protocol: IEEE 802.3 af, IEEE 802.3 at, Hi-PoE
  • Switching Capacity: 8.8G
  • Packet Forwarding Rate: 6.55M pps
  • Humidity: 10 – 90%
  • Power: AC 100-240V
  • Lightning Protection: Common Mode 4KV; Differential Mode 2KV
  • Operating Temperature: 14F – 131F (-10C – 55C)
  • Weight: 7.74 lb ( 3.51 kg)
  • Dimensions (W x D x H): 17.32 in x 11.81 in x 1.73 in (440mm x 300mm x 44mm)
Management / Other Specifications
  • MAC Table: 4K
  • VLAN: 802.1Q Standard VLAN
  • Spanning Tree: STP, RSTP
  • Port Aggregation: Static link aggregation, LACP protocol
  • Mirroring: Many-to-one port mirroring
  • DHCP: Support DHCP-Client
  • Long Distance Mode: "Power & Data" transmission distance up to 820ft (reduces data to 10Mbps)
  • Flow Control: Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
  • Security Features: IP+MAC binding based on port; IEEE 802.1 x port authentication
  • System Maintenance: One-key recovery; Support the updated packet upload; System log
  • QoS: High and low priority, WRR; 802.1P, DSCP; Support priority according to protocol
  • Network Management: Web (http and https protocol); Support SNMP V1/V2C/V3
  • PoE Management: PoE setting (real-time port consumption); PoE event statistics; Green PoE
