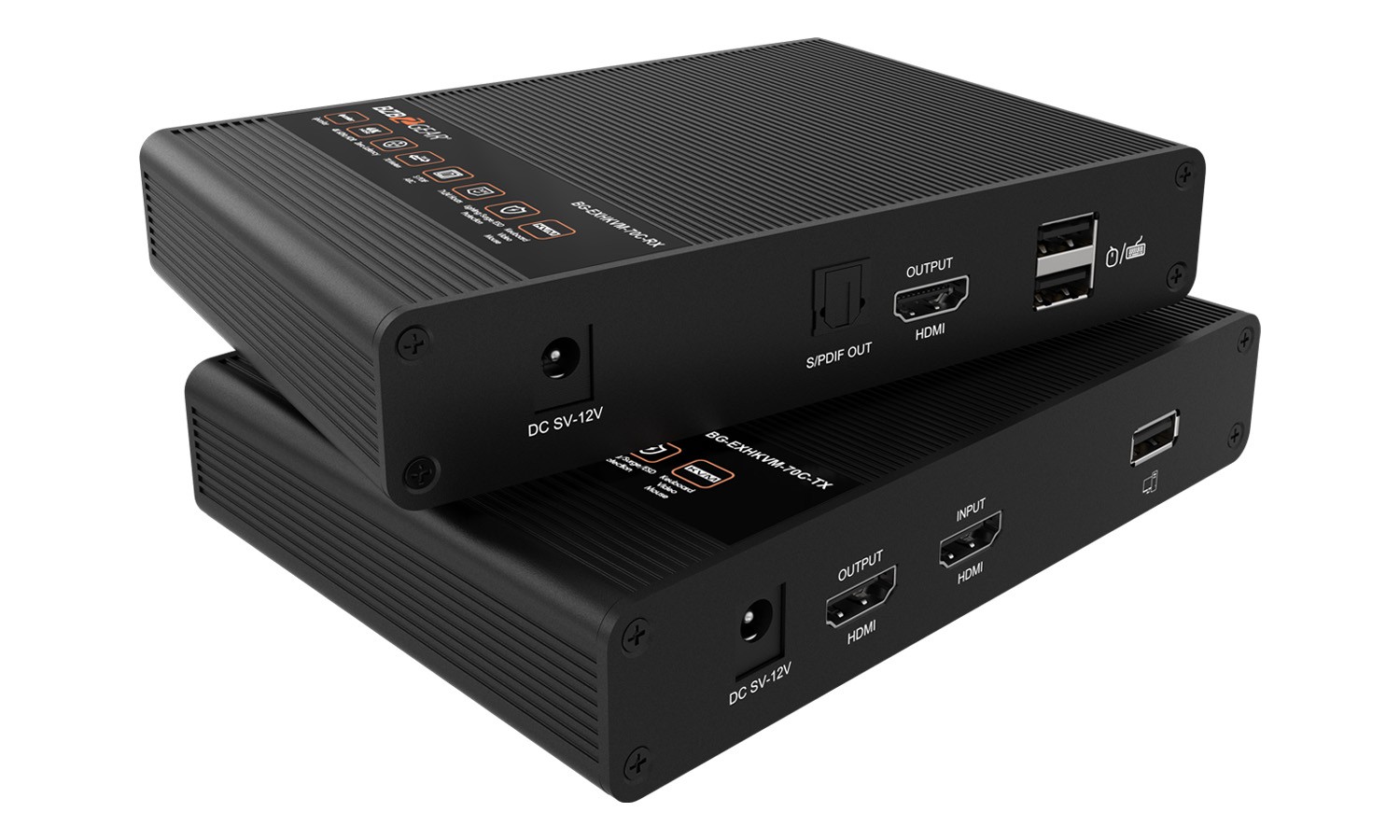

for All Products BZBGEAR BG-EXHKVM-70C-b 4K UHD HDMI and KVM Extender with Zero Latency up to 230ft Support HDR and ARC Manufacturer:BZBGEAR SKU:BG-EXHKVM-70C-B Condition:Refurbished Warranty:3 Years
Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.
With a new IPCOLOR technology (a global leading and innovative protocol for UHD video digital transmission with lossless compression) this extender is capable of transmitting HDMI and USB signals with zero latency (gamers loved it) across distances of up to 70 meters (230 ft) over a single Cat6/6a/7 cable.
If your computer makes uncomfortable level of noise and you want to send it away to the basement and work peacefully in your office, or if your company policies require your workstation to be locked in server room - these are exactly why KVM extender was created. When you need to separate your PC and your Display/Keyboard&Mouse for a long distance this device will serve you well.
You can use USB connectors on the receiver not only for your mouse and keyboard, but also for other USB 2.0 devices like storage drives. S/PDIF connector on the receiver will de-embed audio signal from HDMI, so you can connect your local audio system.
BG-EXHKVM-70C supports resolutions up to 4K 60fps HDR10 as well as many audio formats like LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH.
Aluminum housing and integrated surge protection provides more durability for your setup.
Features:
- Stunning Image Quality - Supports resolutions up to4K at 60Hz
- Audio Extraction - Digital audio can be extracted via the optical audio port
- KVM - Remotely control a PC from the display side with a keyboard and mouse
- Plug and Play - Easy setup, no drivers to install
- HDMI Loop-Out - Connect an additional display to the transmitter
- Surge Protection - Integrated surge protection increases reliability
- Supports HDMI 2.0a, compatible with HDCP 2.2 and HDCP 1.4
- Supports auto down-scaling to match display resolution
- Supports uncompressed4K at 60Hz4:4:4 with HDR10 and zero latency
Specifications:
Model No. BG-EXHKVM-70C Technical Transmitter Receiver Input HDMI IN x1, DC2.1 x1, USB-A x1 DC2.1 x1, RJ45 x1, USB-A x2 Output HDMI OUT x1, RJ45 x1 HDMI OUT x1, S/PDIF OUT x1 HDMI compliance HDMI 2.0, compatible HDMI 1.4 HDCP compliance HDCP 2.2, compatible HDCP 1.4 Transmission meduim CAT6/CAT6A/CAT7 Transmission distance ≤70 meters Video bandwidth 18Gbps Video support 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 480i at 60Hz, 480p at 60Hz, 576i at 50Hz, 576p at 50Hz, 720p at 50/60Hz, 1080i at 50/60Hz, 1080p at 50/60Hz, 3840x2160 at 24/25/30/50/60Hz, 4096x2160 at 24/25Hz Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH HDR10 (YUV4:4:4) Supported HDMI Loop-out Supported S/PDIF out Supported EDID through Supported KVM function Supported Input TMDS signal 0.7~1.2Vp-p Input DDC signal 5Vp-p HDMI connector Type A 19 Pins, Female Network cable standard CAT6/CAT6A/CAT7, follow IEEE-5688 standard Mechanical Transmitter Receiver Net weight 0.57lbs [260g] 0.57lbs [260g] Power supply 5V/2A 5V/2A Power consumption 4W 4W Material Aluminium alloy material+crystal panel Dimensions(LxWxH) 5.9 x 4.2 x 1.1in [150.0 x 107.0 x 28.4mm] Operation temperaure -4 ~ 140°F / -20 ~ 60°C Storage temperature -22 ~ 158°F /-30 ~ 70°C Relative humidity 0～90% (no condensation)
