-HardWare Specification of OpenWrt One-

SoC MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz

System Memory 1GB DDR4

Storage 256 MB SPI NAND flash for U-boot and Linux

16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)

Two types of flash devices are used to make the board almost unbrickable

M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

Networking 1 x 2.5GbE RJ45 port

1 x Gigabit Ethernet RJ45 port

Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)

3x MMCX antenna connectors

USB 1x USB 2.0 Type-A host port

USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip

Expansion MikroBUS socket for expansion modules

Debugging Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC

Misc Reset and User buttons

Boot select switch: NAND (regular) or NOR (recovery)

2x PWM LEDs, 2x Ethernet LED (GPIO driven)

EM6324 External hardware watchdog

Power Supply 15V USB-PD on USB-C port

Optional 802.3at/af PoE via RT5040 module

Dimensions 148 x 100.5 mm compatible with Banana Pi BPI-R4 case design

Certifications FCC/EC/RoHS compliance

-Key Features-

OpenWrt official board and support

MediaTek MT7981B (Filogic 820) SoC

Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3 5Ghz)

1GB DDR4

1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port

256 MiB SPI NAND and 16 MiB SPI NOR flash are used to make the board almost unbrickable

M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

PoE support

MikroBUS socket for expansion modules

-Application direction-

Maker DIY

OpenWrt learning and development

IoT

Wifi router

Nas

Network communication application

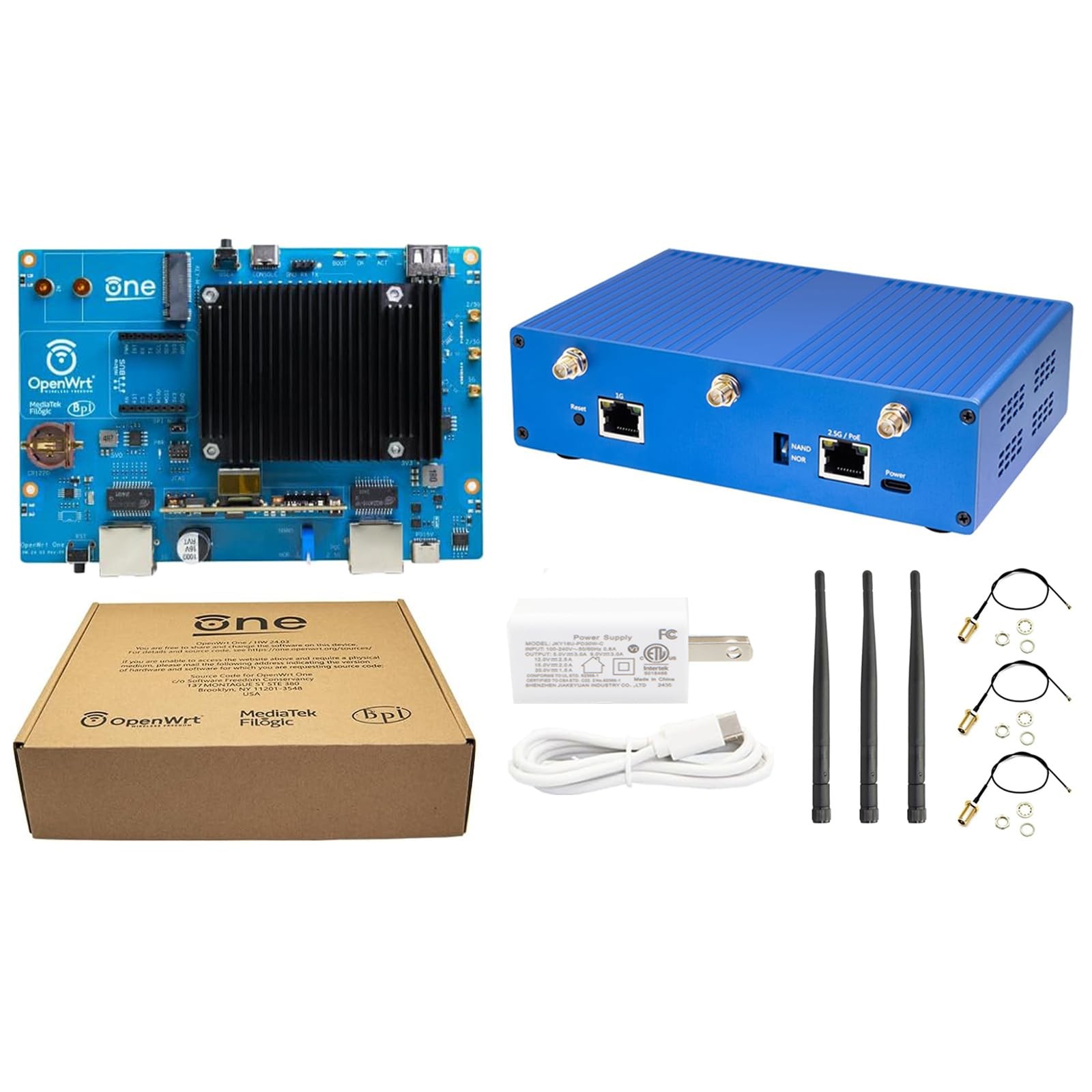

OpenWrt One/AP-24.XY router board is based on the MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C dual-band WiFi 6 chipset. It is the first official development board from the OpenWrt open-source community, co-designed with Banana Pi.
OpenWrt One utilizes MediaTek's MT7981B SoC, featuring dual ARM Cortex-A53 cores clocked at 1.3 GHz. It comes equipped with 1 GB DDR4 RAM and 256 MB SPI NAND storage, integrating an additional 16 MB protected storage for system backup. Dual storage hardware safeguards the onboard system.
OpenWrt One integrates an M.2 SSD interface, with a 2230/2242 NVMe PCIe 2x1 port available for adding external storage. It provides one USB 2.0 Type-A port and one mikroBUS expansion port, offering additional interfaces for a wide range of technical possibilities.
MediaTek MT7981B is a compact Wi-Fi system-on-chip (SoC) for IoT devices, incorporating an embedded TCP/IP stack. Using the MT7981B, IoT devices can connect to other smart devices or cloud applications and services. Connectivity on the MT7981B is achieved via Wi-Fi in either Wi-Fi station or access point (AP) mode. The MT7981B provides 5 GPIO pins and 1 UART port. Additionally, PWM is supported in the application software.
OpenWrt One/AP-24.XY router features Wi-Fi 6, dual-band, 3×3/2×2 MIMO, 1 × 2.5 G WAN network interface, and 1 Gigabit LAN network interface. It is suitable for maker DIY projects, OpenWrt software learning and development, IoT applications, Wi-Fi 6 wireless routing applications, NAS, and network communication applications.
Getting Started or SDK Documentation: “ openwrt.org/toh/openwrt/one ”.
