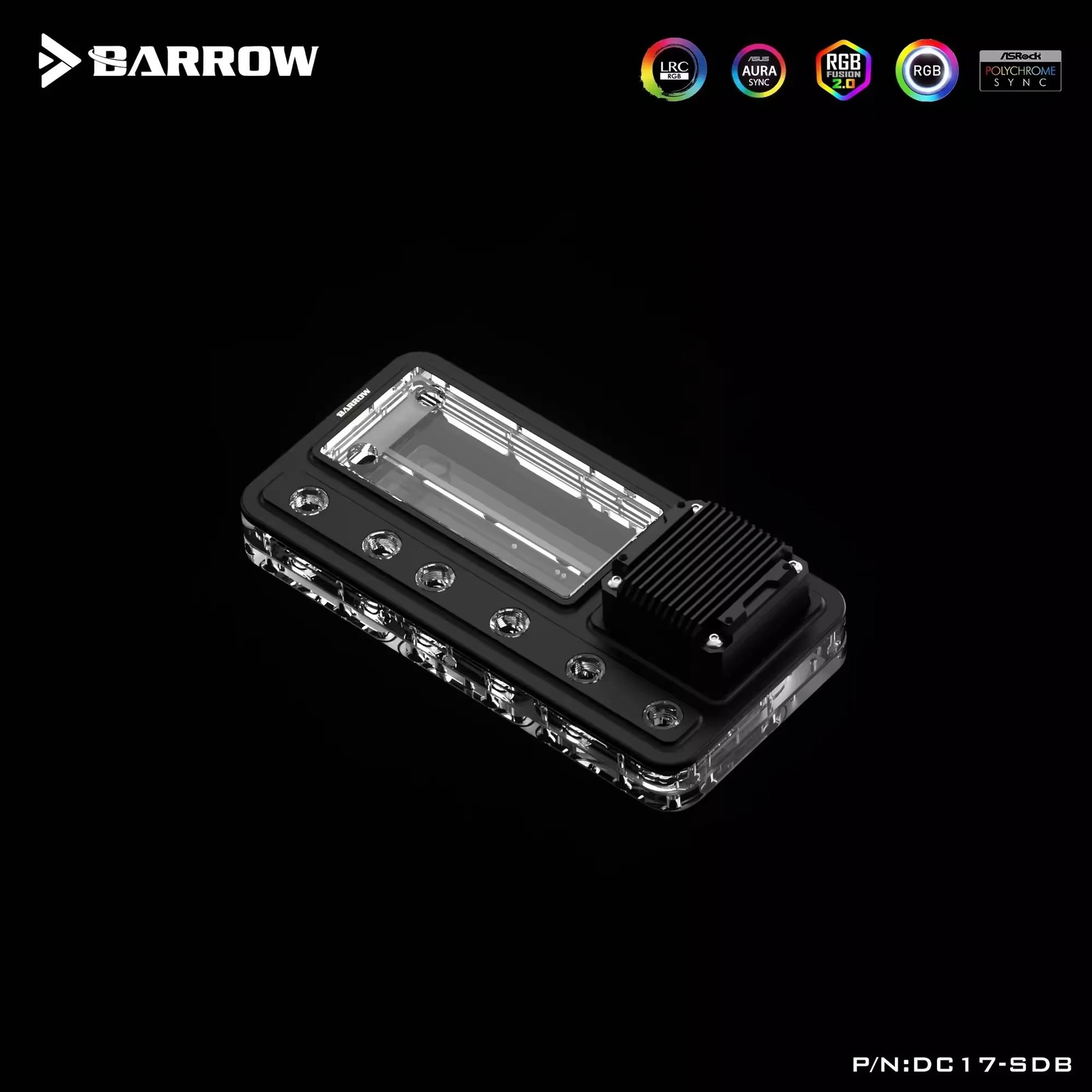

Barrow AIO Pump Reservoir Integrated Distro Plate 🌊
Universal Water Channel Board with Built-In 17W Pump
Overview
This universal distro plate from Barrow solves compatibility headaches with dedicated water channel boards, making it easy to adapt inside almost any chassis. It features a factory-integrated 17W water pump with multiple inlet/outlet ports for simplified plumbing and reduced installation complexity.
Key FeaturesConvenient Installation
120mm width matches standard 12cm fan/radiator mounting. Threaded holes use embedded steel wire screw sleeves to reduce stripping risk.
High Integration
Factory-integrated 17W pump with reserved inlet/outlet ports simplifies your loop planning and cuts installation difficulty.
Premium Materials
Constructed from aluminum alloy and thickened transparent acrylic for long-lasting stability and clarity.
ARGB Lighting
LRC2.0 Aurora ARGB lighting control system compatible with 5V ARGB 3-pin headers.
Compatibility Note: Fits Intel, AM5, and AM4 platform CPU water blocks. Compatible with two 360mm radiators up to 34mm thick. Suitable for single and dual GPU installations. Includes M4x6 mounting screws.Choosing Your Option
Select the size (120 / 240 / 360mm) and color (Black or White) that fits your radiator layout and case theme. All variations share the same 17W integrated pump and LRC2.0 ARGB control, differing only in plate length and mounting footprint to match your radiator size.
SpecificationsBrandBarrowModel NumberDC17-SDBRated VoltageDC 12VRated Current1.4ARated Power17WFlow Rate960L/HLift Height5-6MMax Speed4000 RPMNoise Level<40 dBLifespan>50,000 hoursMaterialAluminum Alloy + AcrylicLightingLRC2.0 Aurora ARGB (5V 3-pin)Product ImagesFAQDoes this include CPU/GPU water blocks?
No, this is the distro plate/reservoir with integrated pump only. Water blocks are sold separately.
What ARGB header does it use?
A standard 5V ARGB 3-pin header compatible with most motherboard ARGB sync software.
Can it handle dual radiators?
Yes, it is compatible with two 360mm radiators up to 34mm thick.
