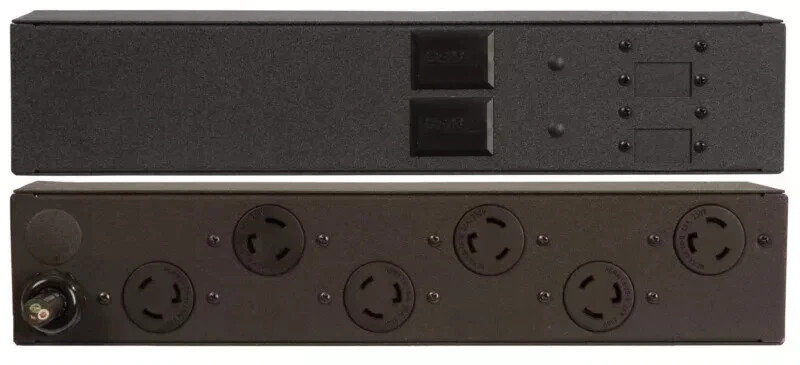

Basic Geist 2VHVR062-102L20ST6 Rack Mount PDU w/ 6 x L6-20R Outlets
Price: US $499.99
Basic Geist 2VHVR062-102L20ST6 Rack Mount PDU 20A/208V w/ 6 x L6-20R Outlets
BRAND NEW / IN BOX
The VHV series products are power distribution units (PDU) intended for connection to a 20 Amp AC mains circuits. The PDUs are designed to be powered by either a single phase or a three phase AC input circuit. Three phase units can be configured for either a delta or wye input connection. These PDUs can optionally be configured with a Geist current meter that provides local monitoring and display of each output circuit current. Alternatively, these PDUs can also be configured with a Geist current monitoring meter that provides both local and remote monitoring of input and output line current.
  • Intended for connection to a 20 Amp AC mains circuits
  • Designed to be powered by either a single phase or a three phase AC input circuit
  • Three phase units can be configured for either a delta or wye input connection
  • These PDUs can optionally be configured with a Geist current meter that provides local monitoring and display of each output circuit current
  • Alternatively, these PDUs can also be configured with a Geist current monitoring meter that provides both local and remote monitoring of input and output line current

PDU Type19 in. 2U Basic horizontal rackmount
Voltage208VOverload ProtectionNone
Output Watts3.3kWSwitchNoAmperage20AMaximum Output per Receptacle20A
AC Power Cord10 Foot NEMA 6-20
Outlets6 x NEMA L6-20
Frequency Compatibility50/60 HzConstructionSteel
Housing ColorBlack powdercoat

Technical Certifications:UL & c-UL Listed 60950, RoHS certified


  • Warranty - Yes
  • ROHS Compliant - Yes
  • UL Rated - Yes

  • Operating Temperature (Maximum): 113 F
  • Operating Temperature (Minimum): 50 F
  • Cord Length (in/mm): 120 in
  • Certifications: UL, cUL, NOM-003-SCFI-2000
  • Number of Outlets: 6
  • ROHS Compliant: Yes
  • UL Rated: Yes
  • AC Voltage: 208 Volts
  • Active Power: 3300 Watt
  • Current Draw: 20 Amps
  • Depth: 6 in
  • Height: 3.39 in
  • Width: 17 in
  • Shipping Weight: 14 lbs
  • Regulatory Compliance: FCC, RoHS
  • Warranty (Length/Type): Lifetime
