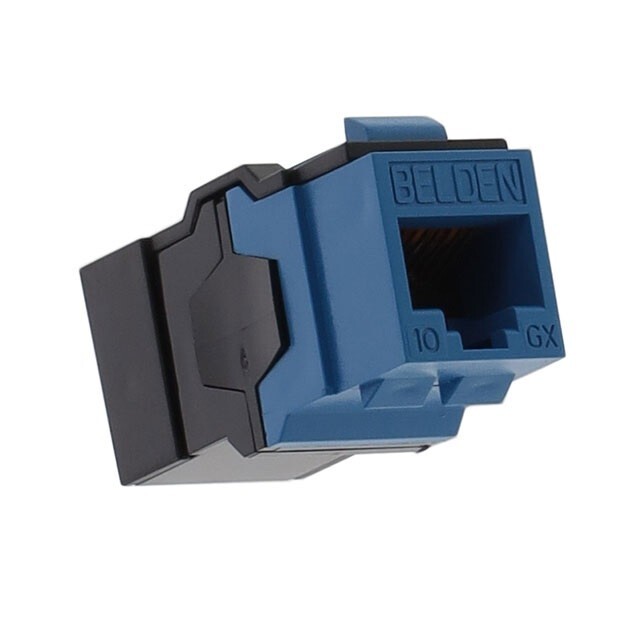

Belden AX104019 Category 6A 10GX RJ45 KeyConnect Style Blue Coupler Click Thumbnails to EnlargeDESCRIPTION
• Belden AX104019 Category 6A 10GX RJ45 KeyConnect Style Blue Coupler.
APPLICATIONS
• IBDN System 10GX, TIA Category 6A, 10GBASE-T.
CONNECTORS
• Front Connection: Flexible PCB with 50 µ inch Gold over Nickel: Flexible PCB
• Rear Connection: Flexible PCB with 50 µ inch Gold over Nickel:Flexible PCB
• Connector Body: Plastic - UL94V-0
ELECTRICAL CHARACTERISTICS
• Current Rating: 1.500 A
•Insulation Resistance:500 M-Ohm Minimum
•Max Contact Resistance:20 mOhm
•Termination Resistance:2.5 mOhm
• Dielectric Strength:1,000V RMS @ 60 Hz for 1 minute
TEMPERATURE RANGE
• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C
MECHANICAL CHARACTERISTICS
• Footprint/Type: KeyConnect
•Plug /Jack Compatibility:RJ45
•Termination Front Connection:Mated Connection
•Termination Front Connection Durability:750 cycles
•Termination Rear Connection:Mated Connection
•Termination Rear Connection Durability: 750 cycles
•Connector/Hardware Retention:20 lbs
STANDARDS
• Data Category:Category 6
• TIA/EIA Compliance:Category 6 - ISO/IEC 11801:2002 Amendment 2
• Other Standards:FCC Part 68, Subpart F, IEC 60603-7
APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS
• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
• MII Order #39 (China RoHS): EUP 50
PRODUCT SPECIFICATIONSPart Number AX104019Wiring Scheme: T568A/B-T568A/BHeight 0.895 inWidth 0.692 inDepth1.522 inWeight (lbs) 0.380 lbs
