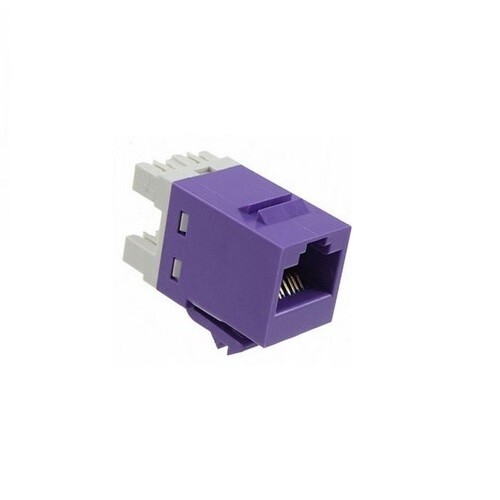

Belden AX104157 10GX Category 6A RJ45 KeyConnect Style Purple Modular Jack Click Thumbnails to EnlargeDESCRIPTION
• Belden AX104157 10GX Category 6A RJ45 KeyConnect Style Purple Modular Jack.
APPLICATIONS
• IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T.
CONNECTORS
• Front Connection: Flexible PCB with 50 µ inch Gold over Nickel: Flexible PCB
• Rear Phosphor Bronze with Tin Plating over Nickel:Flexible IDC
• Connector Body: Plastic - UL94V-0
ELECTRICAL CHARACTERISTICS
• Current Rating: 1.500 A
•Insulation Resistance:500 M-Ohm Minimum
•Max Contact Resistance:20 mOhm
•Termination Resistance:2.5 mOhm
• Dielectric Strength:1,000V RMS @ 60 Hz for 1 minute
TEMPERATURE RANGE
• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C
MECHANICAL CHARACTERISTICS
• Footprint/Type: KeyConnect
•Plug /Jack Compatibility:RJ45, RJ11
•Termination Front Connection:Mated Connection
•Termination Front Connection Durability:750 cycles
•Termination Rear Connection:IDC Connection
•Tool Compatibility:Belden 110 Connecting Tool
•Termination Rear Connection Durability:20 terminations
•Cable/Connector Retention:15 lbs.
•Connector/Hardware Retention:20 lbs
•Plug/Connector Retention:11.250 lbs
STANDARDS
• Data Category:Category 6
• TIA/EIA Compliance:Category 6 - ISO/IEC 11801:2002 Amendment 2
• Other Standards:FCC Part 68, Subpart F, IEC 60603-7
APPLICABLE ENVIRONMENTAL AND OTHER PROGRAMS
• Environmental Space: Indoor
• EU Directive 2002/95/EC (RoHS): Yes
• MII Order #39 (China RoHS): EUP 50
PRODUCT SPECIFICATIONSPart Number AX104157Wiring Scheme: T568A/BHeight 0.9 inWidth 0.675 inDepth1.17 inWeight (lbs) 0.016 lbs
