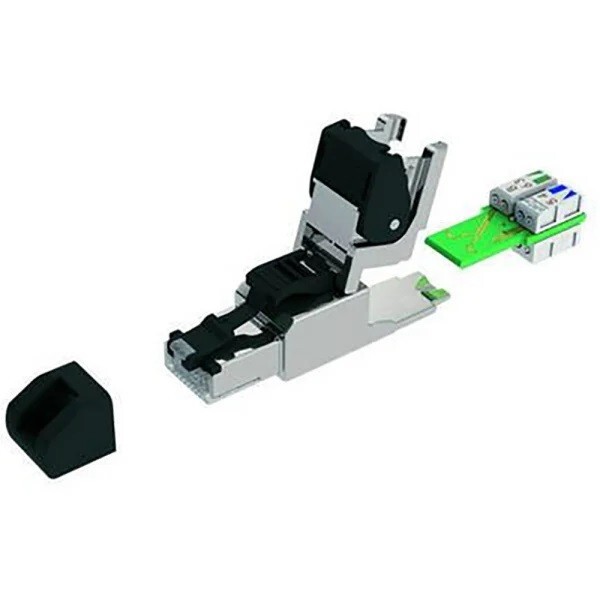

Belden CAPFMFL-S1 CAT6A Field Mount Plug 568A/B Shielded Large AWG 22-24 Click Thumbnails to EnlargeDESCRIPTION
• Belden CAPFMFL-S1 CAT6A Field Mount Plug 568A/B Shielded Large AWG 22-24.
MECHANICAL CHARACTERISTICS
• Termination: RJ45
• Connection: Mated Connection
• Durabilities: 750 Cycles
TRANSMISSION CHARACTERISTICS (CONNECTIVITY)
• Mated Connection Table - Footnote: * Up to Category 6A - TIA 568.C.2 when tested with Recommended CAT6A Cables.
•Dielectric Strength:1,000 V RMS @ 60 Hz for 1 minute
•Max Contact Resistance: 10 mOhm
•Insulation Resistance:500 M-Ohm Minimum
•Current Rating: 1.500 A
TEMPERATURE RANGE
• Operating Temperature Range: -10°C to +85°C
PRODUCT SPECIFICATIONSPart Number CAPFMFL-S1Wiring Scheme: T568A and T568BHeight 0.640 inWidth 0.540 inLength 2.090 inWeight (lbs) 0.058 lbs.
